Description
Additional Details. The TITAN tank is 30 gallons larger at 66 gallons. The stock tank is only 36 gallons. Will not interfere with powered steps, air bag systems. Our mid-ship, direct replacement fuel tanks are designed to use your trucks stock/OE sending unit. However, our tanks are compatible with Fleece, AirDog, FASS, etc. This tank does not fit with the B&W model 1016 Turnover ball Hitch or the Curt model 6064.Technical Service Bulletin. Affected vehicles: 2019+ GM 6.6L diesel trucks. Issue: Fuel gauge drops to empty after Initial Install and during normal operation. Explanation: GM trucks have the ability through programming and monitoring to know exactly how much fuel is in the tank, as well as fuel consumption based on miles driven and fuel economy. Any large capacity fuel tank causes the float to move slower than the computer thinks is acceptable. When the computer sees this, it will run a system check and drop the fuel gauge to empty. When the fuel level comes off full, the gauge should return to the correction position after restarting the vehicle. Solution: Although we were told early on that trucks have fixed themselves after several tanks of fuel when following a specific process, we are no longer able to confirm this or any other permanent fix for this issue. If this is a concern for you, we recommend using an aftermarket digital monitor to confirm accurate fuel level when this occurs.

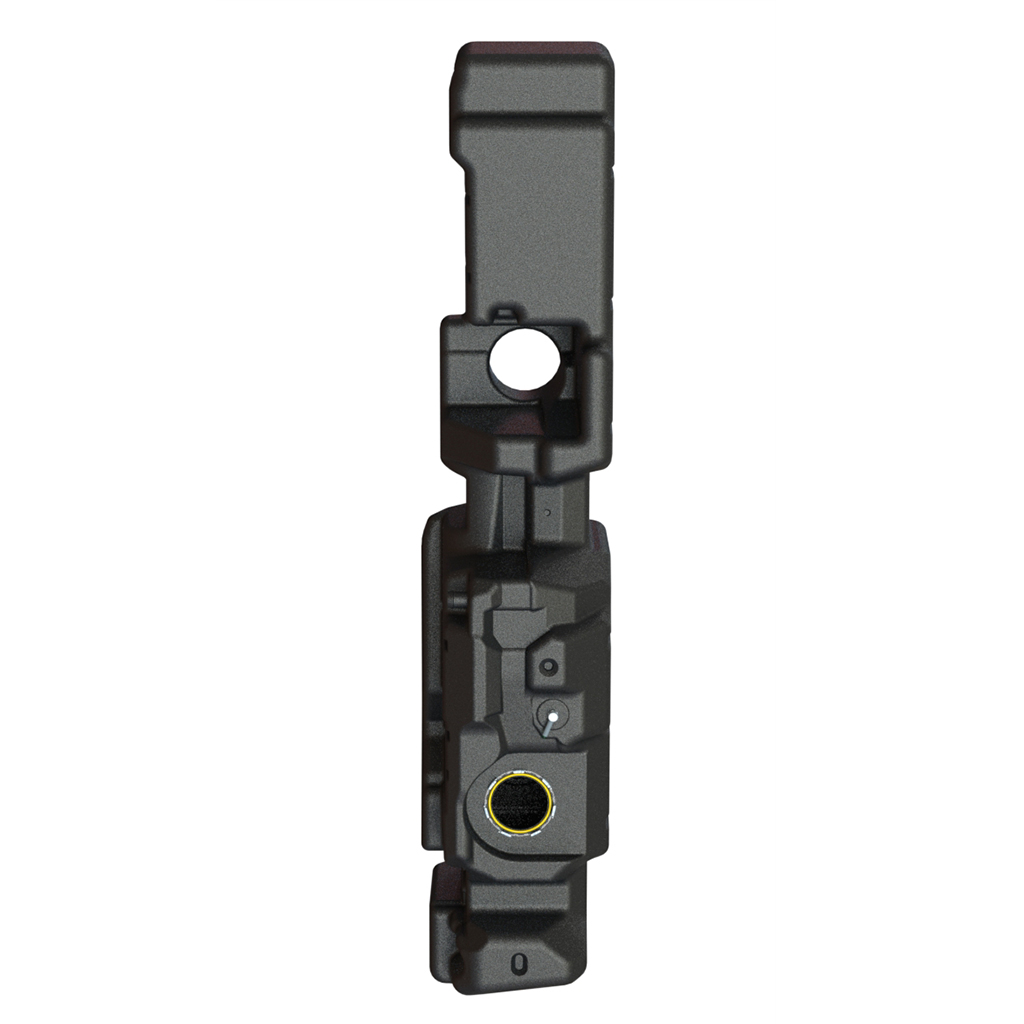

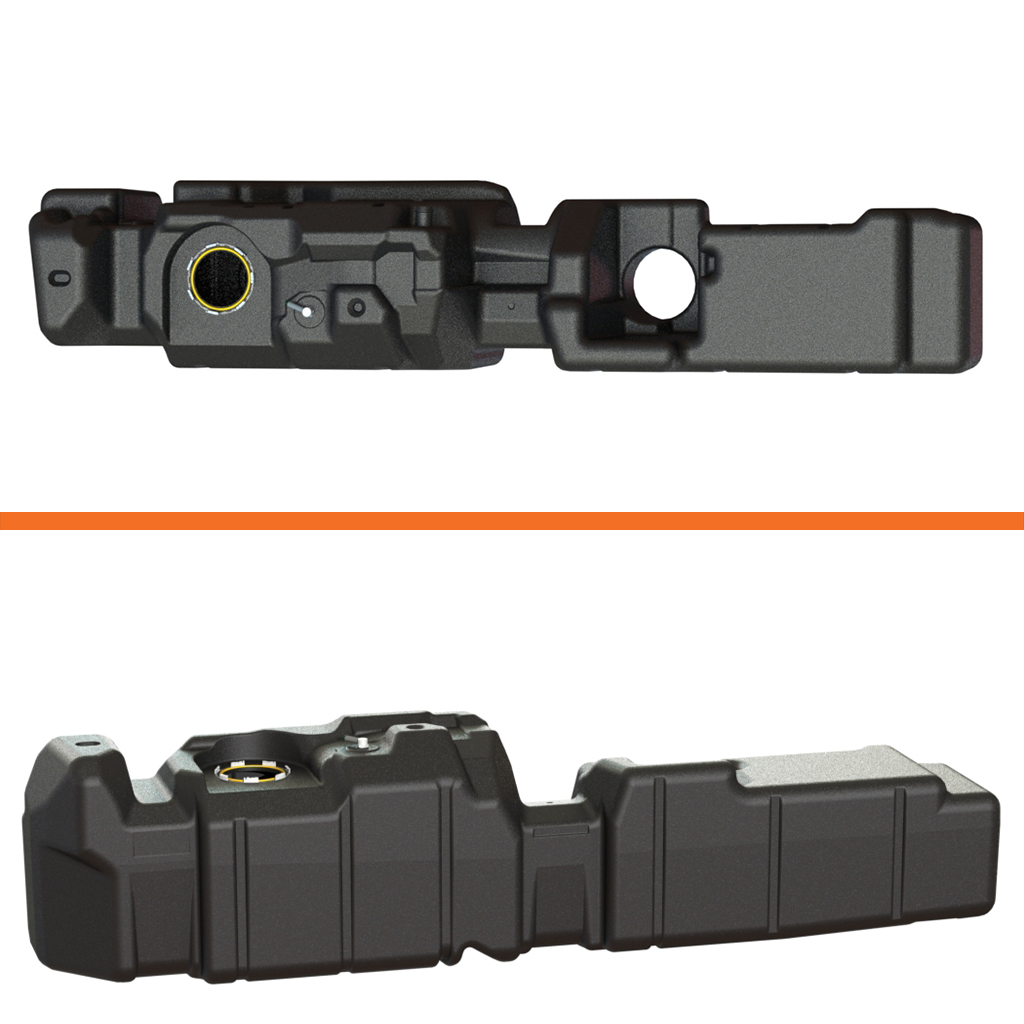

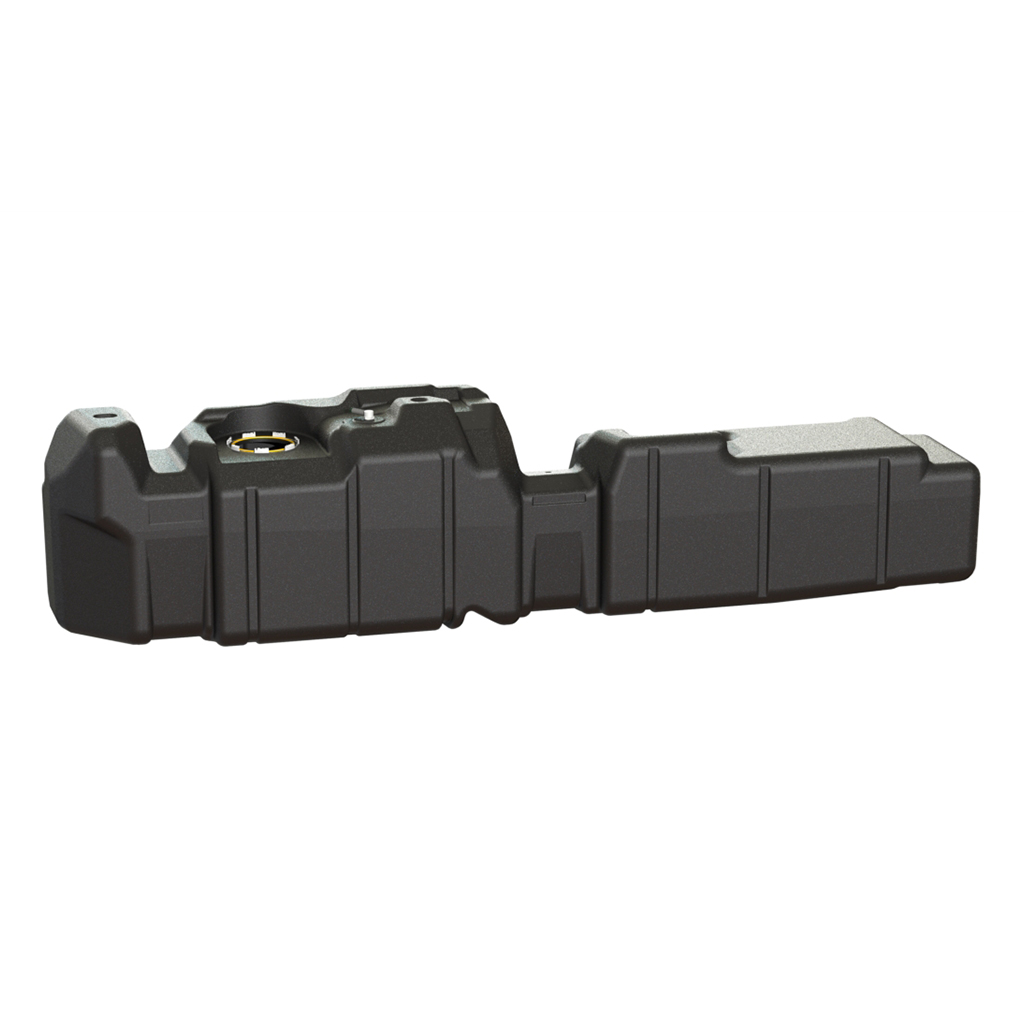

66 Gallon extra heavy duty, cross-linked polyethylene fuel tank
Specifications
| Brand | Titan Fuel Tanks |
|---|---|
| Part Number | 7010317 |
| Baffled Sump | Yes |
| Capacity | 249.9 |
| Color | Black |
| Fuel System Compatibility | Electronic Fuel Injection |
| Grade Type | Performance |
| Increased Capacity (US Gallons) | 30 |
| Material | Polyethylene (PE) |
| Material Thickness | 0.25 |
| Merch Code | Fuel Distribution Parts/Accessories (Automotive) |
| Mounting Straps Included | Yes |
| O-Ring Included | Yes |
| Sales in Canada | Yes |
| Stock Tank Capacity (US Gallons) | 36 |
| TITAN Tank Capacity (US Gallons) | 66 |
| Truck Freight | Yes |
| USMCA Origin Criterion | B |
| Weight | 80 lbs |
| Attached Sump | No |
| California Restriction | No |
| Filler Neck Attached | No |
| Fuel Pump Included | No |
| Sending Unit Included | No |
Vehicle Fitment
| Year(s) | Make | Model | Bed | Submodel | Cab / Body | Notes |
|---|---|---|---|---|---|---|
| 2017-2019 | Chevrolet | Silverado 2500 HD | 8'2" Bed | BASE | Crew Cab Pickup | This tank does not fit with the B&W model 1016 Turnover ball Hitch or the Curt model 6064 |
| 2017-2019 | Chevrolet | Silverado 3500 HD | 8'2" Bed | BASE | Crew Cab Pickup | This tank does not fit with the B&W model 1016 Turnover ball Hitch or the Curt model 6064 |
| 2017-2019 | GMC | Sierra 2500 HD | 8'2" Bed | BASE | Crew Cab Pickup | This tank does not fit with the B&W model 1016 Turnover ball Hitch or the Curt model 6064 |
| 2017-2019 | GMC | Sierra 3500 HD | 8'2" Bed | BASE | Crew Cab Pickup | This tank does not fit with the B&W model 1016 Turnover ball Hitch or the Curt model 6064 |
