Select your vehicle to find the exact part number for your truck.

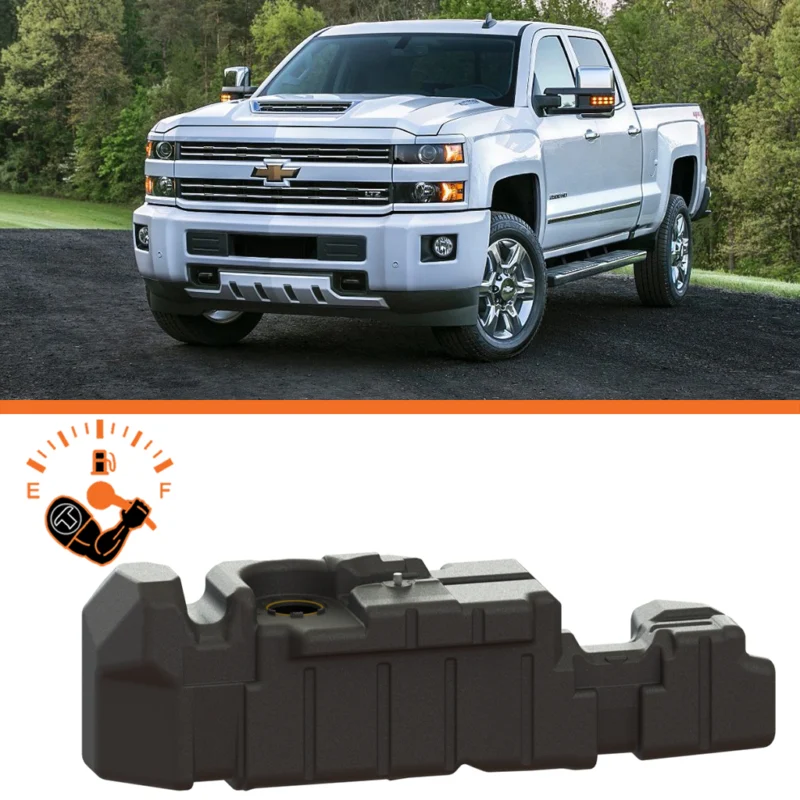

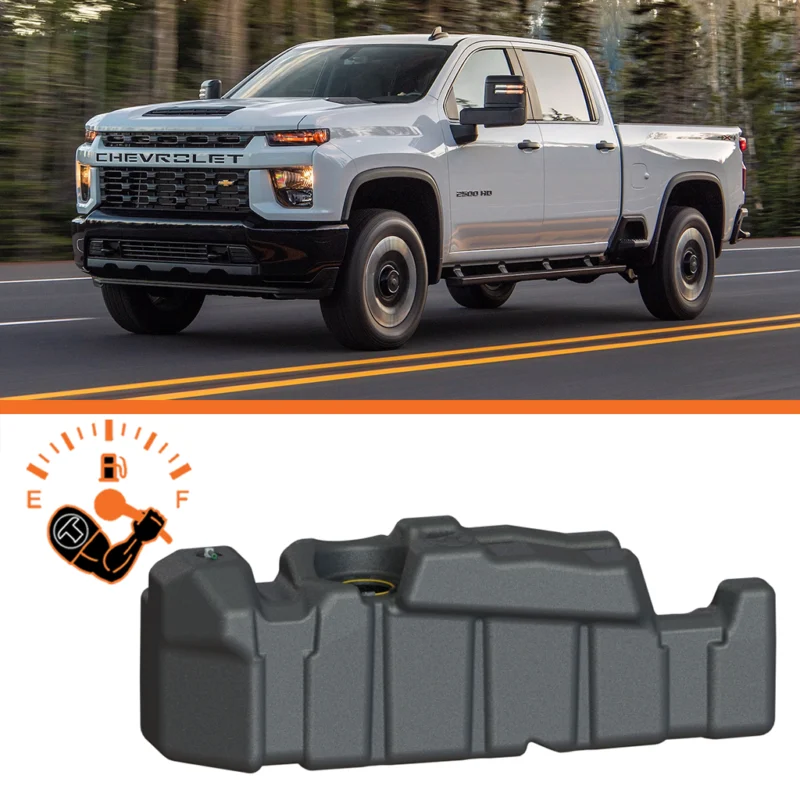

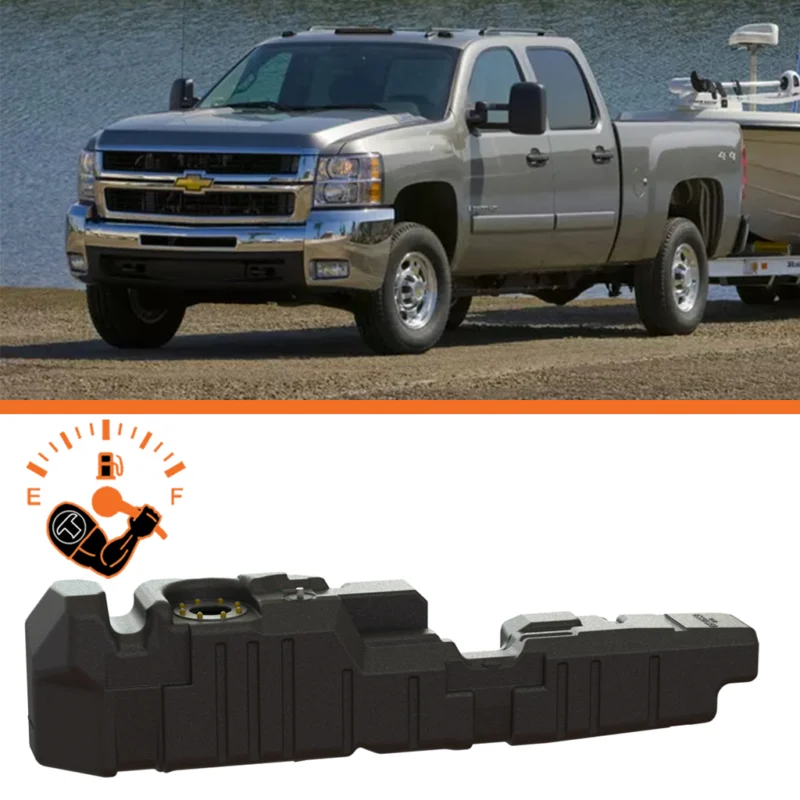

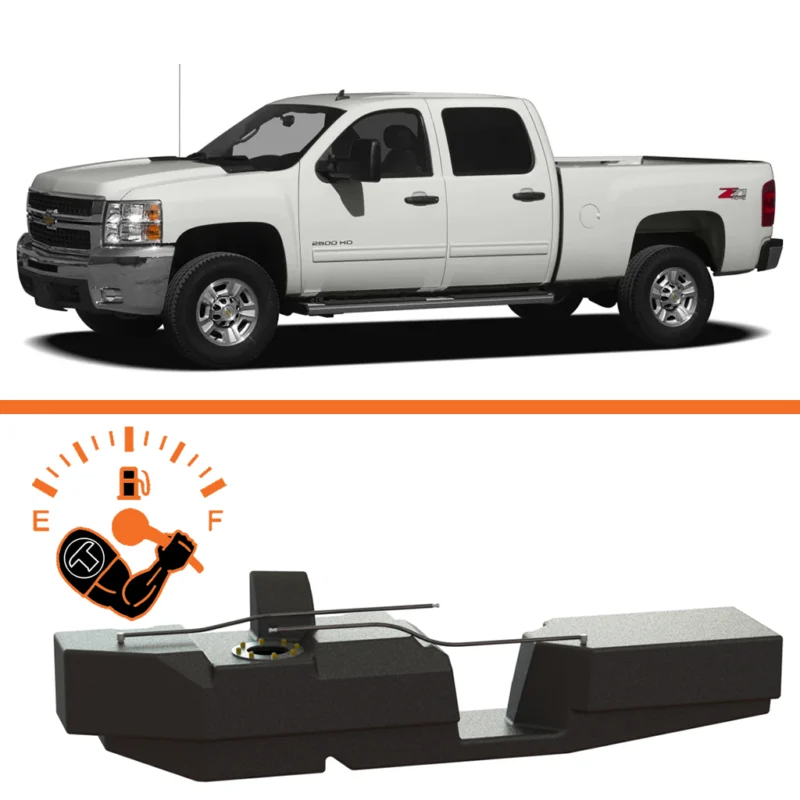

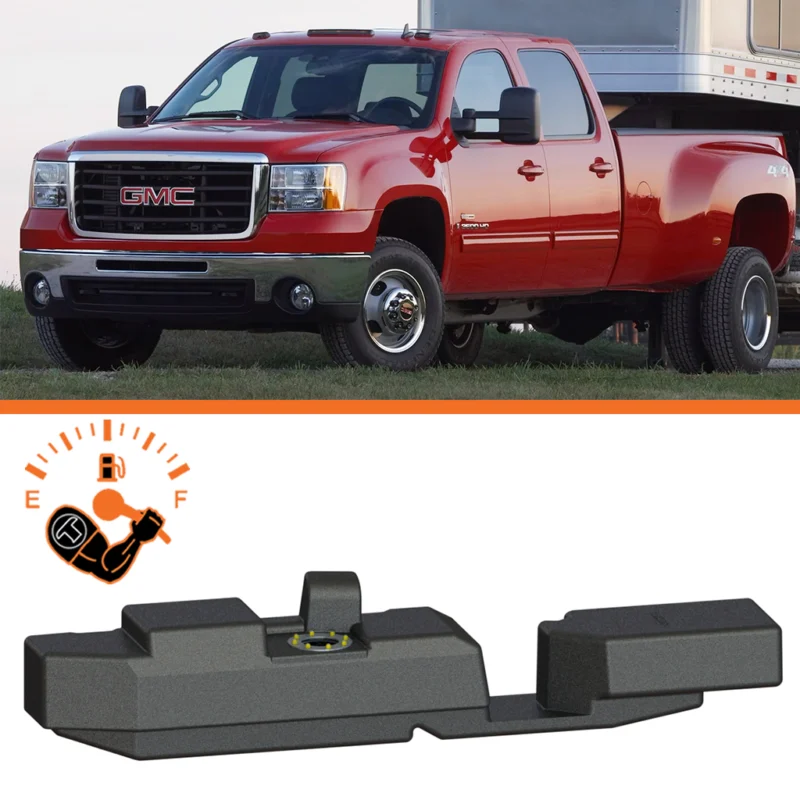

39 Gallon , extra heavy duty cross-linked polyethylene fuel tank. Tank comes complete with powder-coated cross-member support bracket and steel strap set, extruded rubber mounting bushings, vent hoses, 2 ea. rollover safety vent valves, seals and required clamps. Tank features exclusive low fuel trap design. For vehicles with extended cabs and 6 ft. short beds. LIFETIME Warranty. For model years 2001-2010. For 2500 and 3500 Models with Duramax Engines. Note: The "LB7 Kit" is required on all 2001 to 2003 General Motors trucks. On 2004 models it is required if the eighth character in the VIN is a "1 in..
Extra Large Midship Tank - 39 Gallon
| Brand | Titan Fuel Tanks |
|---|---|
| Type | Midship Replacement Fuel Tank |
| Weight | 46 - 84 lbs |
| Attached Sump | No |
| Baffled Sump | Yes |
| California Restriction | No |
| Capacity | 136, 43, 234.7, 197, 57, ... |
| Color | Black |
| Filler Neck Attached | No |
| Fuel Pump Included | No |
| Fuel System Compatibility | Electronic Fuel Injection |
| Gallon Capacity | 37 |
| Grade Type | Performance |
| Increased Capacity (US Gallons) | 26, 20, 28, 21, 15, ... |
| Material | Polyethylene (PE) |
| Material Thickness | 6.35, 0.25 |
| Merch Code | Fuel Distribution Parts/Accessories (Automotive) |
| Mounting Straps Included | Yes |
| O-Ring Included | Yes |
| Sales in Canada | Yes |
| Sending Unit Included | No |
| Stock Tank Capacity (US Gallons) | 36, 34, 26, 24, 21 |
| TITAN Tank Capacity (US Gallons) | 60, 56, 36, 52, 66, ... |
| Truck Freight | No, Yes |
| USMCA Origin Criterion | B |
Use the Find Your Fit tool above to check if this product fits your specific vehicle.
