Description

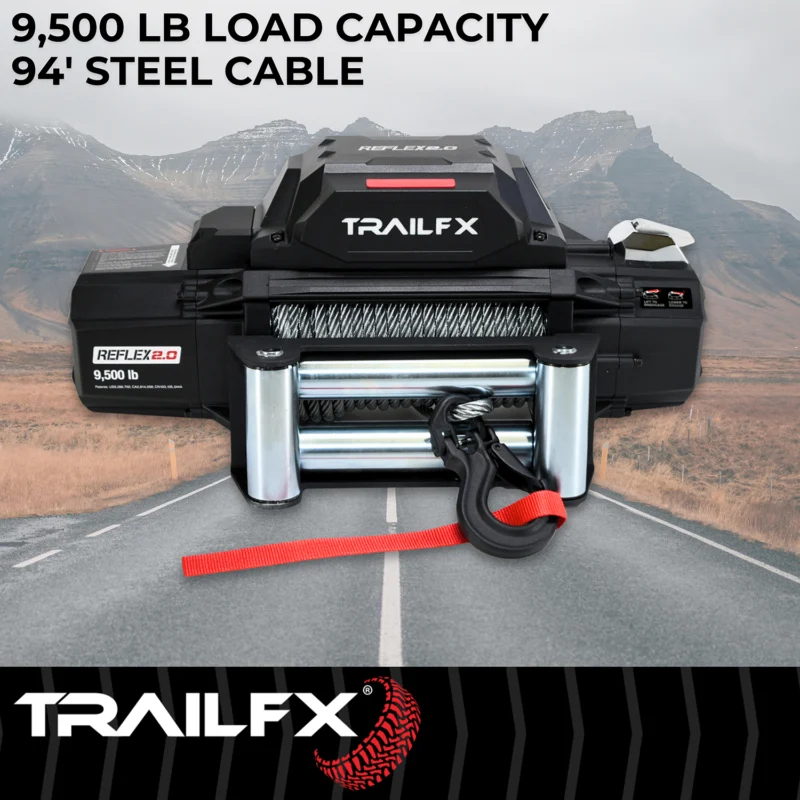

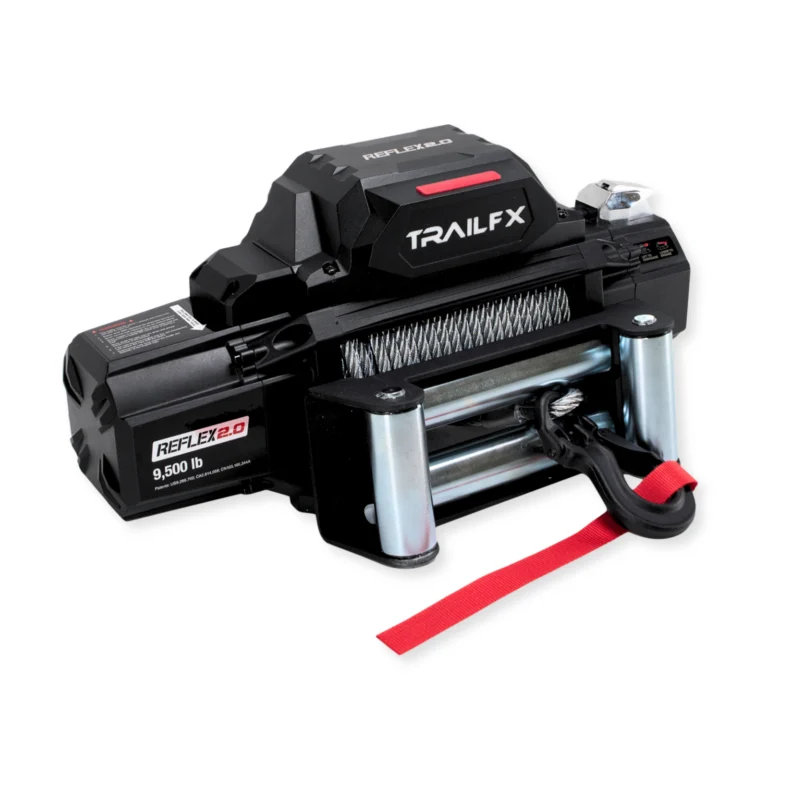

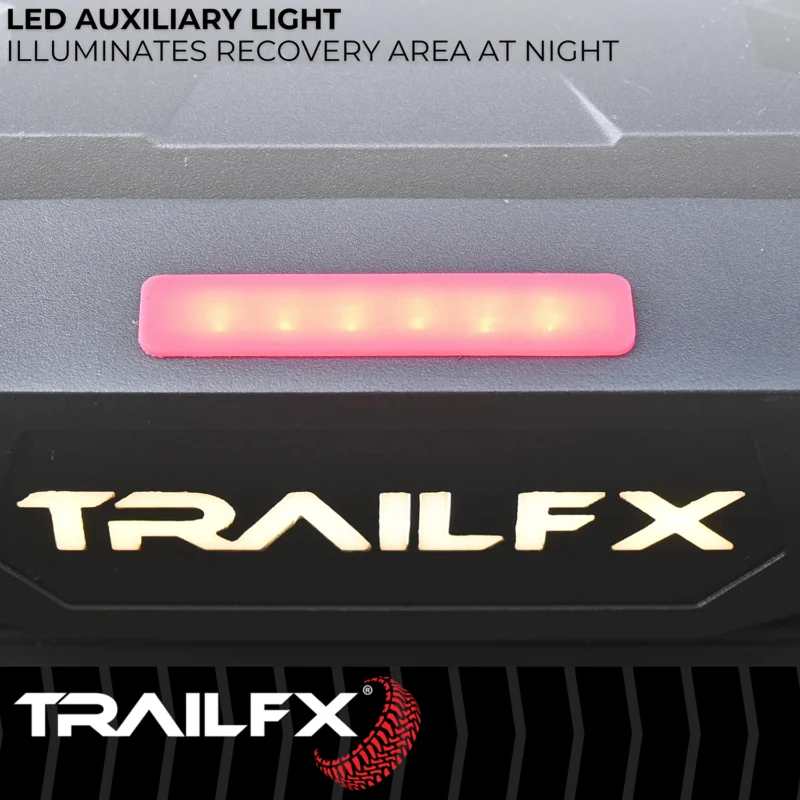

TrailFX Reflex 2.0 winches provide the power and performance needed to overcome challenges both on the trail and in a work environment. Reflex 2.0 winches include 94 feet of wire or synthetic rope, a wired/wireless hand-held remote, fairlead and clevis hook. Upgrades from the prior generation include a larger brake, improved line speed, daytime running light and load warning indication system.
3 Stage Planetary Gear Drive
Specifications
| Brand | TrailFX |
|---|---|
| Part Number | WR295B |
| Brake Activation | Electric |

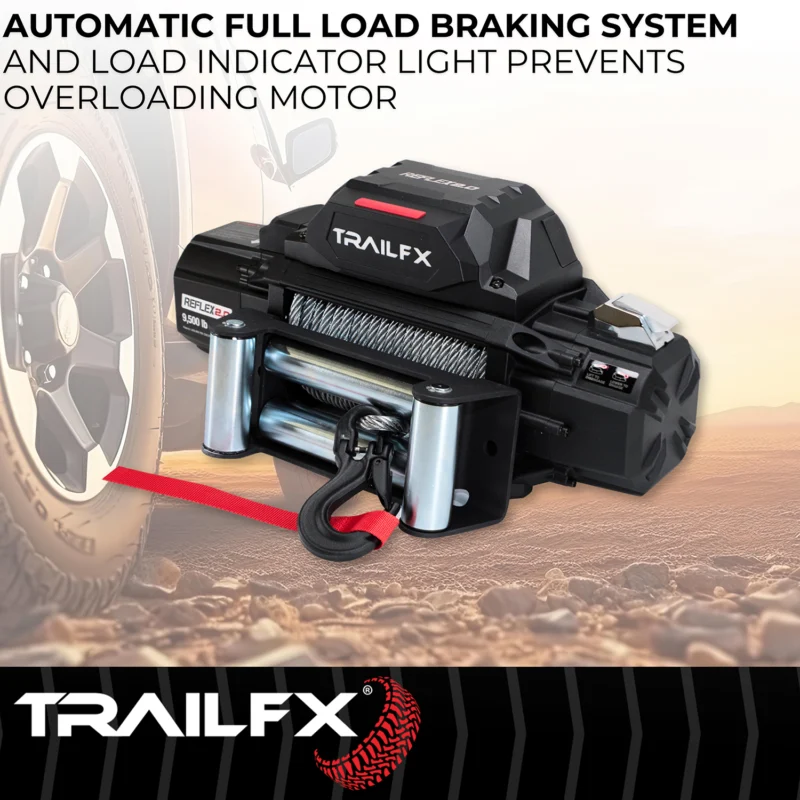

| Brake Type | Automatic Full Load Brake |
| Cable Length | 94 |
| Color | Black |
| Drive Gear Type | 3-stage Planetary |
| Drum Material | Steel |
| Electrical Control Type | Solenoid |
| Fairlead Type | Roller |
| Free Spooling | Yes |
| Gear Ratio | 136:1 |
| Gear Reduction Ratio | 7.50069444444445 |
| Gearing | Planetary |
| Includes Mounting Hardware | Yes |
| Line Diameter (in) | 0.32 Inch / 8.3mm |
| Line Length (ft) | 94 Feet |
| Line Speed At Max Pull | 5.7 Feet Per Minute At 9500lb |
| Max Amp Draw | 400 Amp Max Draw At 9500 Pound |
| Motor Horsepower | 7.0 Horsepower |
| Motor Type | Series Wound Motor |
| Mount Type | Vehicle Mounted |
| Mounting Bolt Pattern Length | 10 |
| Mounting Bolt Pattern Width | 4.5 |
| Mounting Hole Quantity | 4 |
| Mounting Pattern Length (in) | 10 Inch |
| Mounting Pattern Width (in) | 4-1/2 Inch |
| Operation Type | Automatic |
| Rated Line Pull | 9500 |
| Recommended Use | Self-recovery |
| Remote Included | Yes |
| Remote Type | Wired / Wireless |
| Solenoid Type | Yes |
| Type | Fixed Mount |
| Voltage | 12 |
| Winch Rating | 9500 Pound |
| Weight | 93 lbs |
| All Terrain Vehicle | No |
| Conforms To J706 Standards | No |
| Thermal Shutoff | No |
