Zone Offroad ZONC39N - Chevy/GMC Lift Kits, Powdercoat, Steel

Description

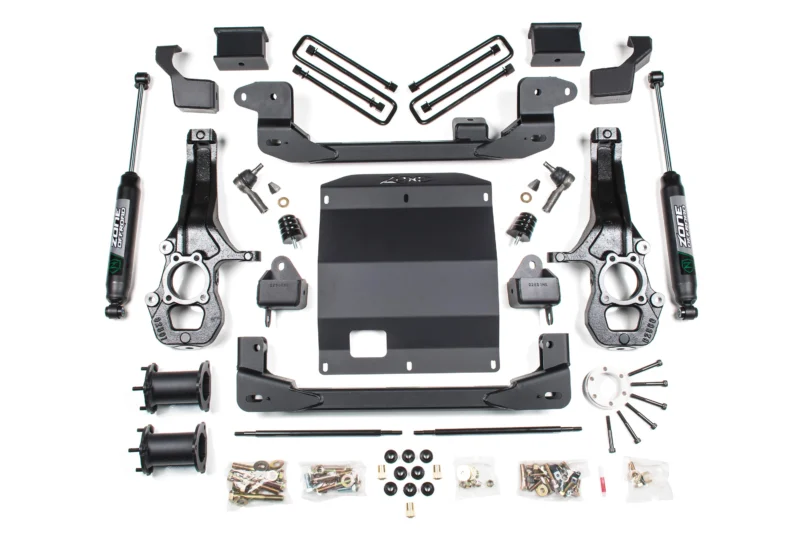

To properly lift the Colorado/Canyon suspension 5.5", we started with ductile cast iron steering knuckles that reposition critical steering and control arm mounting locations, and work in harmony with the heavy-duty, fabricated crossmembers. Differential drop brackets lower and reposition the front differential for correct CV shaft angles and still allow for use of the factory front driveshaft with the help of a spacer that helps retain optimum CV joint positioning. A full-width differential skid plate protects the relocated differential from the underside and ties the front and rear crossmembers together. Factory struts are retained and relocated with top spacers to gain a full 5.5" of lift without requiring any strut disassembly and that position the struts to eliminate binding through wheel travel. In the rear, a new block and U-bolt kit provided 4" of lift to level out the rear with the front. Extended sway bar links, bump stop extensions, and brake line relocation are also included.

Specifications

BrandZone Offroad
Part NumberZONC39N
Back Spacing5.25"
Back Spacing 24.5"
Back Spacing 34.5"
FinishPowdercoat
Front Lift Height5.5"
Front Lift MethodStrut Spacers
Installation Difficulty4 out of 5
Installation TimeAbout 8 hours
Lift TypeLift Kit
MaterialSteel
Max Tire Size305 / 55
Max Tire Size 2295 / 65
Max Tire Size 3295 / 65
Rear Lift Height4"
Rear Lift MethodLift Block
Wheel Size20 x 9
Wheel Size 218 x 9
Wheel Size 317 x 8.5
Required ToolsTorx Bit / Socket Set, Cut-off Tool, Wrenches: Standard
Weight201.55 lbs

Vehicle Fitment

Year(s)MakeModelSubmodel
2022ChevroletColoradoLT
2022ChevroletColoradoWT
2022ChevroletColoradoZ71
2022ChevroletColoradoZ71 LT
2015-2022GMCCanyonBASE
2015-2021ChevroletColoradoBASE
