Description

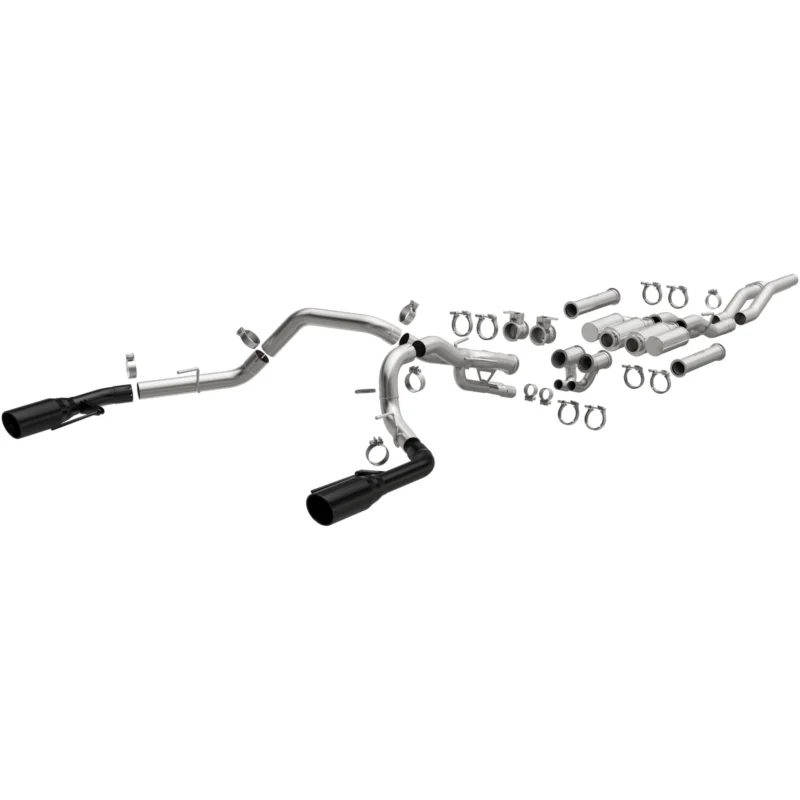

The MagnaFlow Ford F-150 Raptor R xMOD Series Cat-Back Performance Exhaust System is an ultimate exhaust upgrade that can be transformed to your liking to create the exact tone you’re looking for, all while empowering your Ford F-150 Raptor R with dyno-proven performance gains. This feat is accomplished while retaining the full functionality of your truck’s controllable exhaust valves. Exhaust kit #19651 features 3” mandrel bent main piping that replaces your OEM exhaust from near the catalytic converter on back. The piping passes through a set of either 11” NDT (No Drone Technology) muffler modules or 11” xTreme Delete straight pipe modules before passing through the controllable valves and an X-pipe with branch pipe mid-connection and terminating in a dual split rear exit with 5” double-wall angle cut rolled edge black coated tips. #19651 also includes front pipes that can be used to replace the factory front resonated pipes. The NDT muffler modules each include a round straight-through performance muffler connected to an 11” NDT reflection chamber that’s tuned to minimize the droning noises that can otherwise occur at cruising speeds. Meanwhile, the xTreme Delete modules turn your exhaust into a full-throated straight-pipe setup, perfect for track or off-road use. The xTreme Delete modules are the real deal though, so please check to ensure compliance with local noise regulations. This exhaust system is secured with racing-bred quick release V-band clamps, which facilitate easy installation and make swapping modules quick and hassle free. This performance exhaust system is made of durable stainless steel backed by MagnaFlow’s limited lifetime warranty.
MagnaFlow xMOD Series Black Coated Tips Cat-Back System
Specifications
| Brand | MagnaFlow Exhaust Products |
|---|---|
| Part Number | 19651 |
| Clamping Type | V Band |
| Clamps Included | Yes |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Diameter | 5 |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Finish | Black Coated |
| Exhaust Tip Length | 14.25 |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Split Rear |
| Hangers Included | Yes |
| Inlet Type | Bolt-On, Clamp-On |
| Main Piping Diameter | 3 |
| Muffler (Inside) Body Height | 4 |
| Muffler (Inside) Body Width | 4 |
| Muffler (Inside) Type | Straight-Through |
| Muffler (Outside) Body Height | 5 |
| Muffler (Outside) Body Length | 11 |
| Muffler (Outside) Body Width | 5 |
| Muffler (Outside) Type | Tuned Chamber |
| Muffler Finish | Brushed |
| Muffler Quantity | 4 |
| Muffler Type | Straight-Through, Tuned Chamber |
| Pipe Material | Stainless Steel |
| Series | xMod |
| Type | Cat-Back |
| Valve Included | Yes |
| Valve Type | Actuated |
| Weight | 98 lbs |
| Catalytic Converter Included | No |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Resonated | No |
| Gasket Or Seal Included | No |
| Mounting Bracket Included | No |
Vehicle Fitment
| Year(s) | Make | Model | Submodel |
|---|---|---|---|
| 2021-2026 | Ford | F-150 | Raptor |
| 2023-2026 | Ford | F-150 | BASE |
