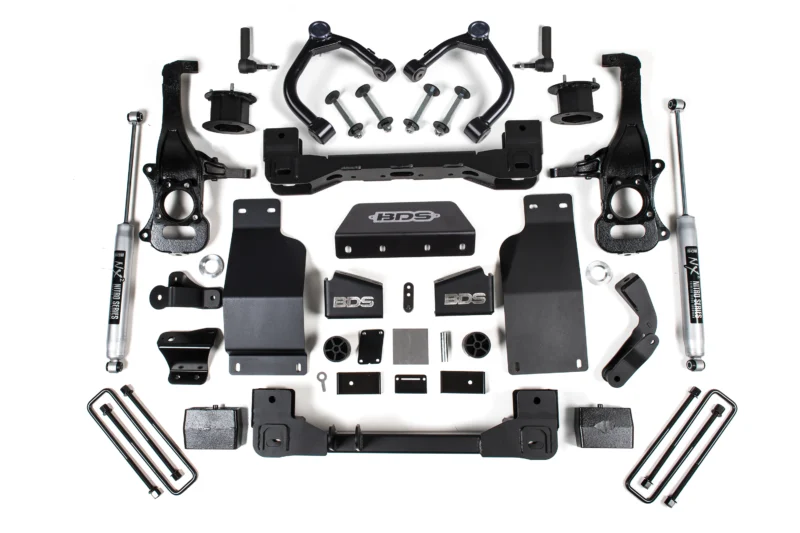

BDS Suspension P/N BDS1807FS

Lift Kits with FOX Shocks

Description

Take your Chevy Trail Boss and GMC AT4 1500 truck to the next level with 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, upper control arms, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.

Vehicle Fitment

Year(s)MakeModelSubmodel
2022-2026ChevroletSilverado 1500Custom Trail Boss
2022-2026ChevroletSilverado 1500LT Trail Boss
2020-2026GMCSierra 1500AT4
BDS Suspension P/N BDS1807FS

Lift Kits with FOX Shocks

$2,490.72

Check if this fits your vehicle Select your vehicle
Professional installation available
We install this! Suspension, wheel and tire labor varies a lot by vehicle and setup - contact your local store for an exact installation quote.
Built to orderShips direct from the manufacturer to your local H&H store. Call 888-865-4024 for lead times.
Free store pickupReady at your local H&H
22 storesAcross the Southeast
Family-ownedServing trucks since 1987
Installation availableAsk your store for a quote
