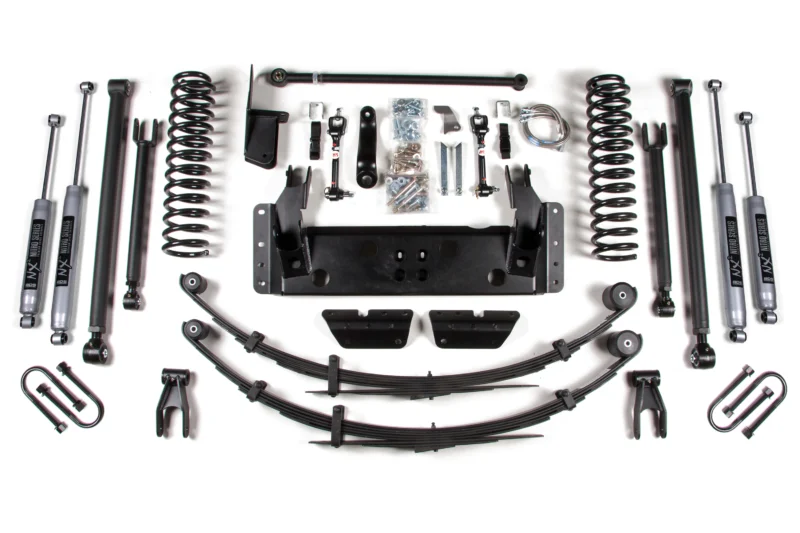

BDS Suspension BDS1434FS - Lift Kits with FOX Shocks

Description

Maximize the capability of your 1984-2001 Jeep Cherokee XJ with this 6.5-inch lift kit with long arm conversion from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. By maximizing the length of both the upper and lower control arms, BDS has minimized caster change for optimal handling and minimized road forces. The control arm geometry is setup with a massive belly pan that incorporates the link mounts and is built to smash rocks. Believe it or not, this system is completely bolt-on with no welding to the unibody required!

Up front the lift kit includes a belly pan with new pivot mounts, heavy duty lower flex arms and adjustable upper flex arms to optimize handling characteristics, 4.5" Pro-Ride coil springs capable of full coil bind and bump stop extensions to control the compression travel, but increase wheel travel. Also included are braided stainless steel brake lines, ultimate sway bar disconnects, and front adjustable track bar with flex joint fits into the existing frame mount and a drop pitman arm to improve the steering and handling geometry.

The rear kit utilizes Glide-Ride leaf springs for maximum travel, stainless braided brake line, 2" lift blocks, and extended shackles that let the spring flex. Finish off the kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Long Arm Conversion

Upgrading the standard control arms to a long arm adds strength, improves handling and takes offroad articulation to the next level. This upgrade consists of massive 1/4" steel frame mounted brackets to install the oversized upper and lower formed long arms. The arms are formed for maximum tire clearance and allow the stock control arm tabs to remain on the vehicle. The upper arms are solid stock while the heavy wall tubular lower arms utilize oversized

Vehicle Fitment

Year(s)MakeModelSubmodel
1984-1993, 1995-2001JeepCherokeeBASE
1994JeepCherokeeCountry
1994JeepCherokeeSE
1994JeepCherokeeSport

Own this? Tell other truck owners how it fits and holds up. Write the first product review

BDS Suspension P/N BDS1434FS

Lift Kits with FOX Shocks

$3,611.98

ⓘ
Check if this fits your vehicle Select your vehicle
Professional installation available
We install this! Labor runs $160/hour and suspension, wheel and tire work varies a lot by vehicle and setup — contact your local store for an exact installation quote.
800-953-7108
Nothing is charged for it today — your local H&H store works out the exact cost when they call to say your order has landed.
Built to orderShips direct from the manufacturer to your local H&H store. Call 800-953-7108 for lead times.

Special order: we confirm availability and lead time after you order. Pay by card or Affirm and nothing is charged until we do.

Free store pickupReady at your local H&H
22 storesAcross the Southeast
Family-ownedServing trucks since 1987
Installation availableLabor from $160/hour — ask your store
Fitment guaranteeIf it doesn't fit, no restocking fee Details
Price matchFound it cheaper? Tell us before you buy Details
Warranty handled hereClaim it at the store, not by mail Details
