Description

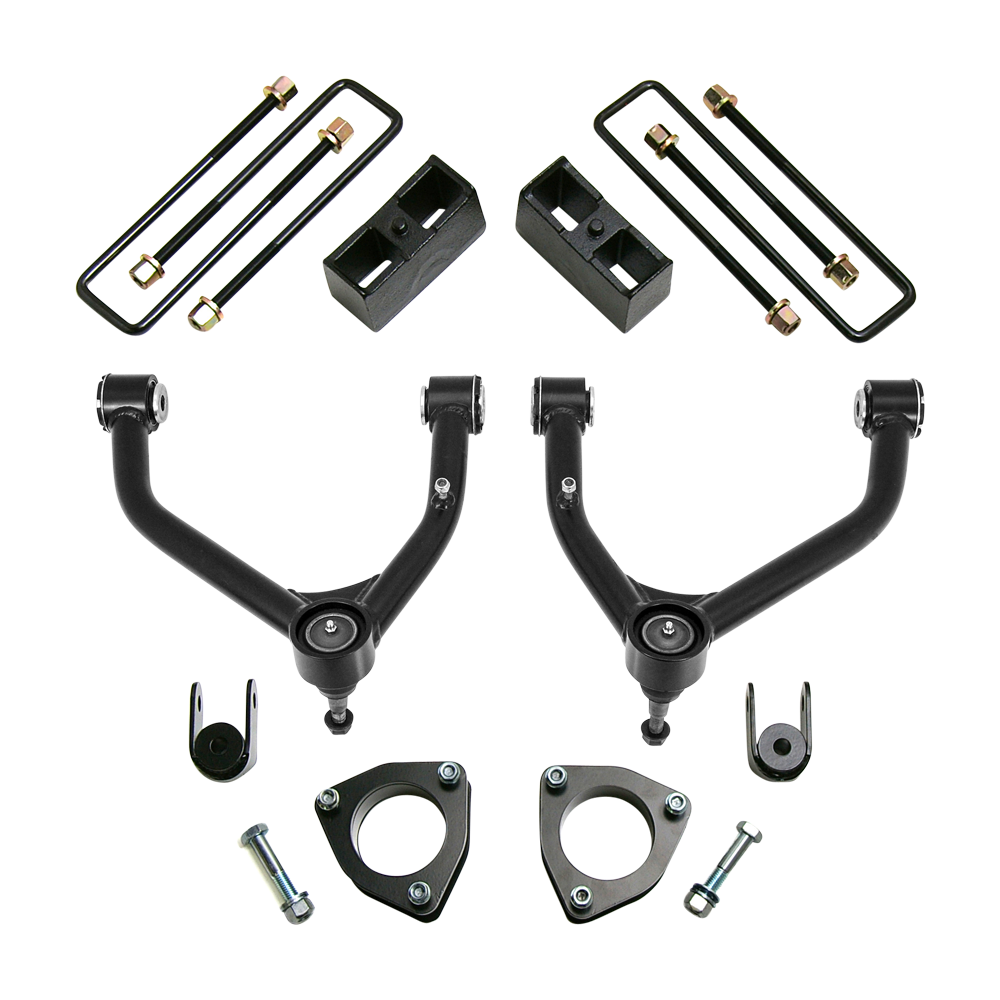

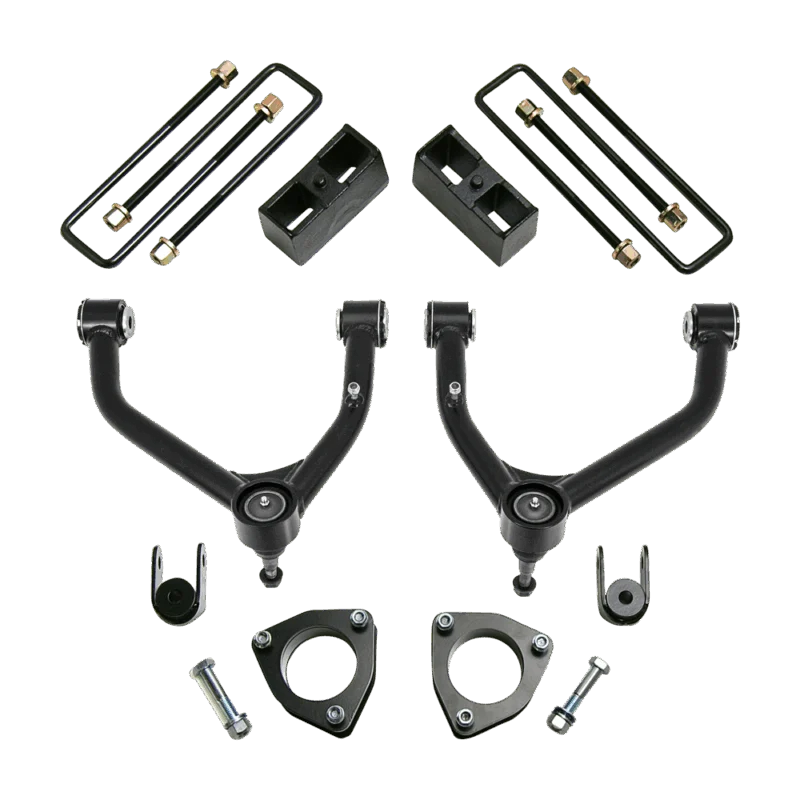

New - now includes ultra strong TCT free floating pivot bushings that are self lubricating and eliminates friction. ReadyLIFT 69-3414 4" SST Lift Kit is designed for the 2014-2018 GM 1500 4WD & Z71 trucks. ReadyLIFT 69-3414 4" SST Lift Kit combines many of the great features of our time-tested and very popular 4" SST Lift Kit for the 2007-2013 trucks with new innovative features. Some features implemented into this system include a completely different differential drop mounting system which utilizes machined billet circular spacers which allows for just the right amount of differential drop without interfering with the rear-mounted electric steering rack. A rugged skid plate accompanies our differential drop system. Our 4" SST Lift Kit uses the heavy duty ball joint found on the GM 2500 HD series trucks -- these ball joints are vastly superior and are already installed into the tubular steel upper Control Arms provided in the kit. This kit also includes premium TCT UCA inner bushings and new washer backing spacer sleeves which greatly prolong the life of the bushings. Our engineering testing has shown this 4" SST Lift Kit is extremely versatile and strong allowing the customer to install up to a 33X11.50 tire (max) on 5.25" backspacing wheel. The kit is for use on trucks with the factory Aluminum or stamped steel upper and lower Control Arms. Not for use on trucks with cast steel upper Control Arms. Z71 standard suspension okay. NOTE: The ReadyLIFT 69-3414 SST Lift Kit is designed for use with Aftermarket Wheels with a backspacing of 5.25". If you intend to run the stock wheels with an aftermarket larger tire, a wheel spacer is required to prevent the tire from touching the control arm at full-locked turn. ReadyLIFT has developed a CNC-machined billet Aluminum wheel spacer 10-3485 for use with factory wheels. To run the OE/Factory wheels AND tires, you will need to use the ReadyLIFT 1/2" Billet Wheel Spacers. Note: Use of Auto 4 Hi feature not recommended.

4" SST Lift Kit - GM Silverado / Sierra 1500 2WD/4WD & Z71 (w/ Cast Al Or Stamped Steel UCA) 2014-2018

Specifications

BrandReadyLift
Part Number69-3414
FitmentDirect Fitment
Front Lift ComponentSpacer
Front Lift Height4 Inches
Front or RearFront and Rear
Install DifficultyDifficult Requires Professional Installation
Installation TimeAbout 5 hours
Max Tire Size33 Inch
Rear Lift ComponentBlock and U-bolt
Rear Lift Height1.75 Inches
Weight57 lbs

Vehicle Fitment

  • 2014-2018Chevrolet Silverado 1500Trims: LT, LTZ, WT; SSV 2015-2018
  • 2019Chevrolet Silverado 1500 LDTrim: LT
  • 2014-2018GMC Sierra 1500Trims: Base, Denali, SLE, SLT
  • 2019GMC Sierra 1500 LimitedTrim: Base

Own this? Tell other truck owners how it fits and holds up. Write the first product review

ReadyLift P/N 69-3414

SST Lift Kits

$1,049.95

ⓘ
Check if this fits your vehicle Select your vehicle

In stock at our supplier
12 available to order · We’ll bring it to your local H&H store, usually 1–3 days

Free pickup at an H&H store Free, ready at your store in 1–3 days
We install it at your local H&H store, about 5 hours of shop time. It shows as its own line in your cart.
