The CURT A20 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 20K 5th wheel hitch. Like our A16 hitch, this 20K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. This A20 5th wheel hitch also comes with a set of CURT OEM puck system 5th wheel legs designed to be mounted on select Chevrolet or GMC trucks with the truck bed puck system (year range specific). The legs mount directly into the four-point mounting system, allowing the CURT A20 hitch to be installed quickly and easily. The most unique feature of these legs is their quarter-turn anchoring system. The variable-position anchors allow the 5th wheel hitch head to easily drop into the puck system, and with a quarter-turn, the hitch can be installed or removed as needed. The anchors can also be adjusted to eliminate any chucking noises. Once installed, the A20 is fast and simple to operate. It has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling, and it is equipped with a coupling indicator that is visible from the truck cab. To protect the A20 5th wheel hitch against rust and wear, it comes with a black carbide powder coat finish and a limited lifetime warranty. We also test the A20 for safety in accordance with SAE J2638 to ensure reliability for the road ahead.

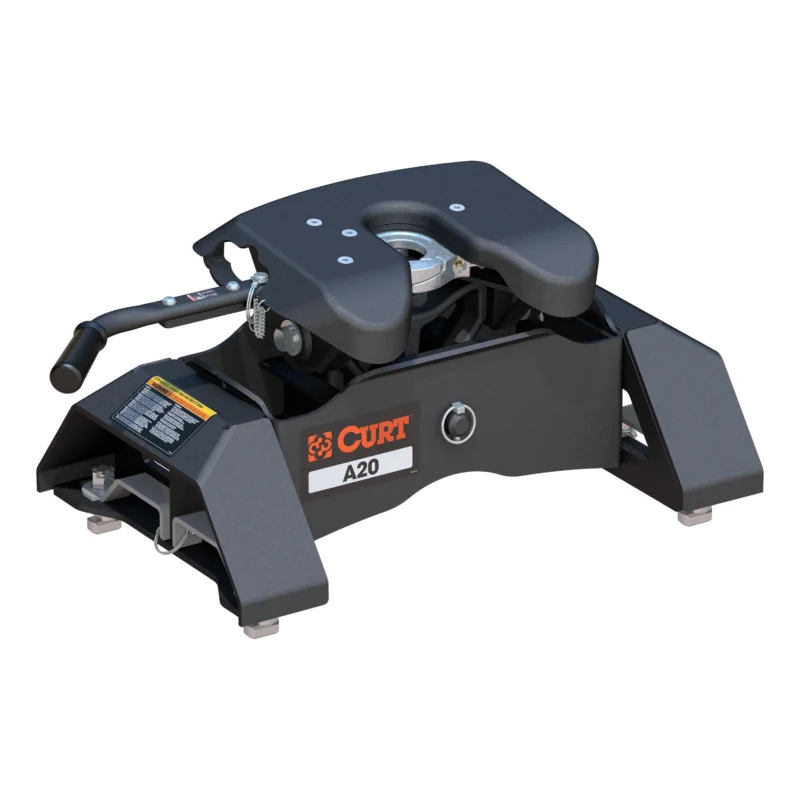

CURT 16092 A20 5th Wheel Hitch, 20,000 lbs, Select Chevrolet Silverado, GMC Sierra 2500, 3500 HD, 8-Foot Bed Puck System
| Brand | CURT |
|---|---|
| Part Number | 16092 |
| Finish | CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 20,000 LB |
| Installation Height | 13 IN - 17 IN |
| Vertical Load | 5,000 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight | 152.3 lbs |
| Year(s) | Make | Model | Bed | Submodel | Cab / Body | Notes |
|---|---|---|---|---|---|---|
| 2020-2026 | Chevrolet | Silverado 2500 HD | 8'2" Bed | BASE | - | Note - With 5th wheel prep package |
| 2020-2026 | Chevrolet | Silverado 3500 HD | 8'2" Bed | BASE | Crew Cab Pickup | Note - With 5th wheel prep package |
| 2020-2026 | Chevrolet | Silverado 3500 HD | 8'2" Bed | BASE | Extended Cab Pickup | Note - With 5th wheel prep package |
| 2020-2026 | Chevrolet | Silverado 3500 HD | 8'2" Bed | BASE | Standard Cab Pickup | Note - With 5th wheel prep package |
| 2020-2026 | GMC | Sierra 2500 HD | 8'2" Bed | BASE | - | Note - With 5th wheel prep package |
| 2020-2026 | GMC | Sierra 3500 HD | 8'2" Bed | BASE | Crew Cab Pickup | Note - With 5th wheel prep package |
| 2020-2026 | GMC | Sierra 3500 HD | 8'2" Bed | BASE | Extended Cab Pickup | Note - With 5th wheel prep package |
| 2020-2026 | GMC | Sierra 3500 HD | 8'2" Bed | BASE | Standard Cab Pickup | Note - With 5th wheel prep package |
