Description

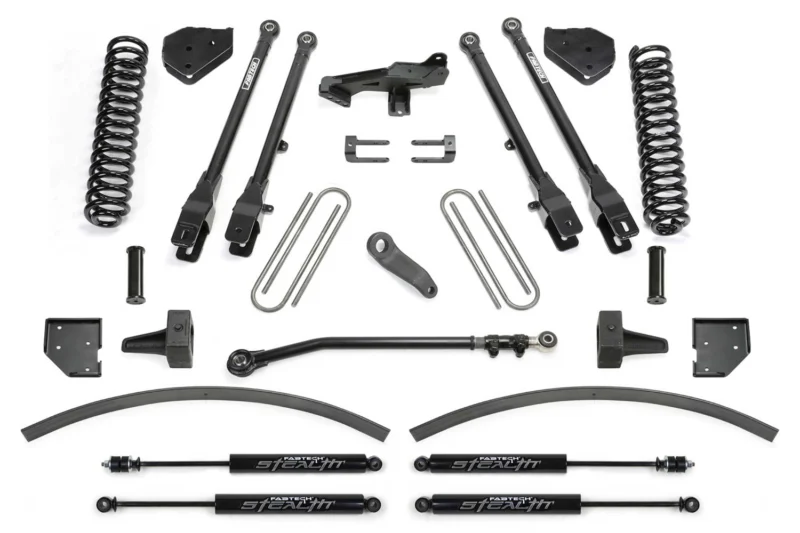

Fabtech's 8 in. 4 Link Conversion System for the Ford Super Duty is designed to provide maximum suspension performance for both on and offroad use. The system replaces the factory Radius Arm suspension with heavy duty 4 Link components for increased strength and functionality. The system will provide less caster change throughout the travel range which benefits on road driving. When offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Unique to this 8 in. system is Fabtech's extended length Track Bar to address the hyper sensitive steering box of the late model Super Duty. Fabtech is the only manufacturer with this exclusive system that offers proper steering performance. Fabtech's extended length Track Bar is 4 in. longer than stock and is offset to the driver side with a stout 1/4 in. thick steel mounting bracket. This design helps keep the Track Bar and Draglink closer to parallel than the factory angles to reduce push in the steering. The Track Bar allows for full lock steering of 15.50 wide tires w/ 4 3/4 in. BS wheels. Fabtech's 4 Link System has been proven in over 10 years of service in rugged commercial and military applications to ensure long life on your daily driven vehicle. High quality components with properly designed suspension geometry makes this Super Duty system the pinnacle of all suspensions. Comes with a free 5 year 60,000 mile powertrain warranty. For a complete understanding of this high quality system please see below features and benefits by component.

4 Link System; 8 in. Lift; Incl. Coil Spring/Stealth Shocks;

Specifications

BrandFabtech
Part NumberK2266M
Lift/Drop Height8
Weight360.8 lbs

Vehicle Fitment

Year(s)MakeModelSubmodelNotes
2017-2022FordF-250 Super DutyBASE8 in. Lift; Incl. Coil Spring/Stealth Shocks; Vehicles equipped with 2 piece driveshaft require FTS419. Diesel models only. Vehicles w/factory rear sway bar must order extended sway bar link kit FTS22276. Front driveshaft modification is required or order driveshaft FTS92035. Does not fit vehicles equipped with Tremor offroad package.
2017-2022FordF-350 Super DutyBASE8 in. Lift; Incl. Coil Spring/Stealth Shocks; Vehicles equipped with 2 piece driveshaft require FTS419. Diesel models only. Vehicles w/factory rear sway bar must order extended sway bar link kit FTS22276. Front driveshaft modification is required or order driveshaft FTS92035. Does not fit vehicles equipped with Tremor offroad package.

Own this? Tell other truck owners how it fits and holds up. Write the first product review

Fabtech P/N K2266M

Lift Systems

$3,944.92

ⓘ
Check if this fits your vehicle Select your vehicle
Professional installation available
We install this! Labor runs $160/hour and suspension, wheel and tire work varies a lot by vehicle and setup — contact your local store for an exact installation quote.
800-953-7108
Nothing is charged for it today — your local H&H store works out the exact cost when they call to say your order has landed.
Built to orderShips direct from the manufacturer to your local H&H store. Call 800-953-7108 for lead times.

If an item can’t be sourced, a refund will be given and the order will be canceled.

Free store pickupReady at your local H&H
22 storesAcross the Southeast
Family-ownedServing trucks since 1987
Installation availableLabor from $160/hour — ask your store
Fitment guaranteeIf it doesn't fit, no restocking fee Details
