Description

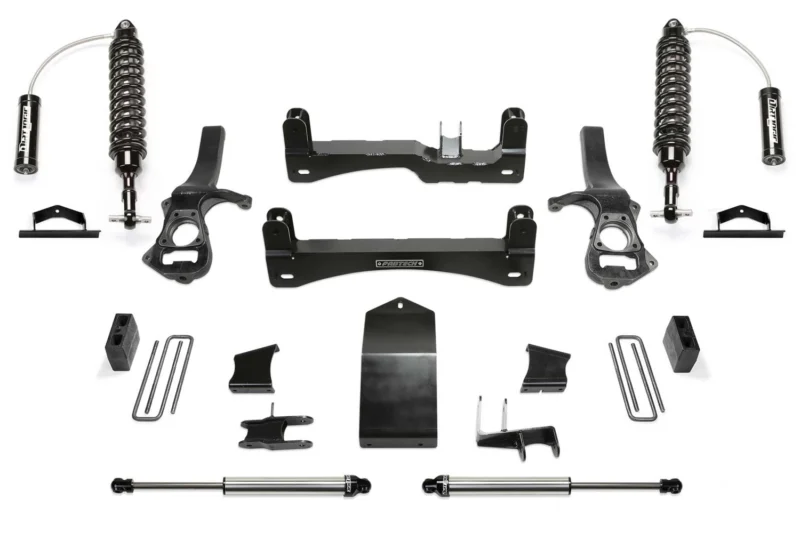

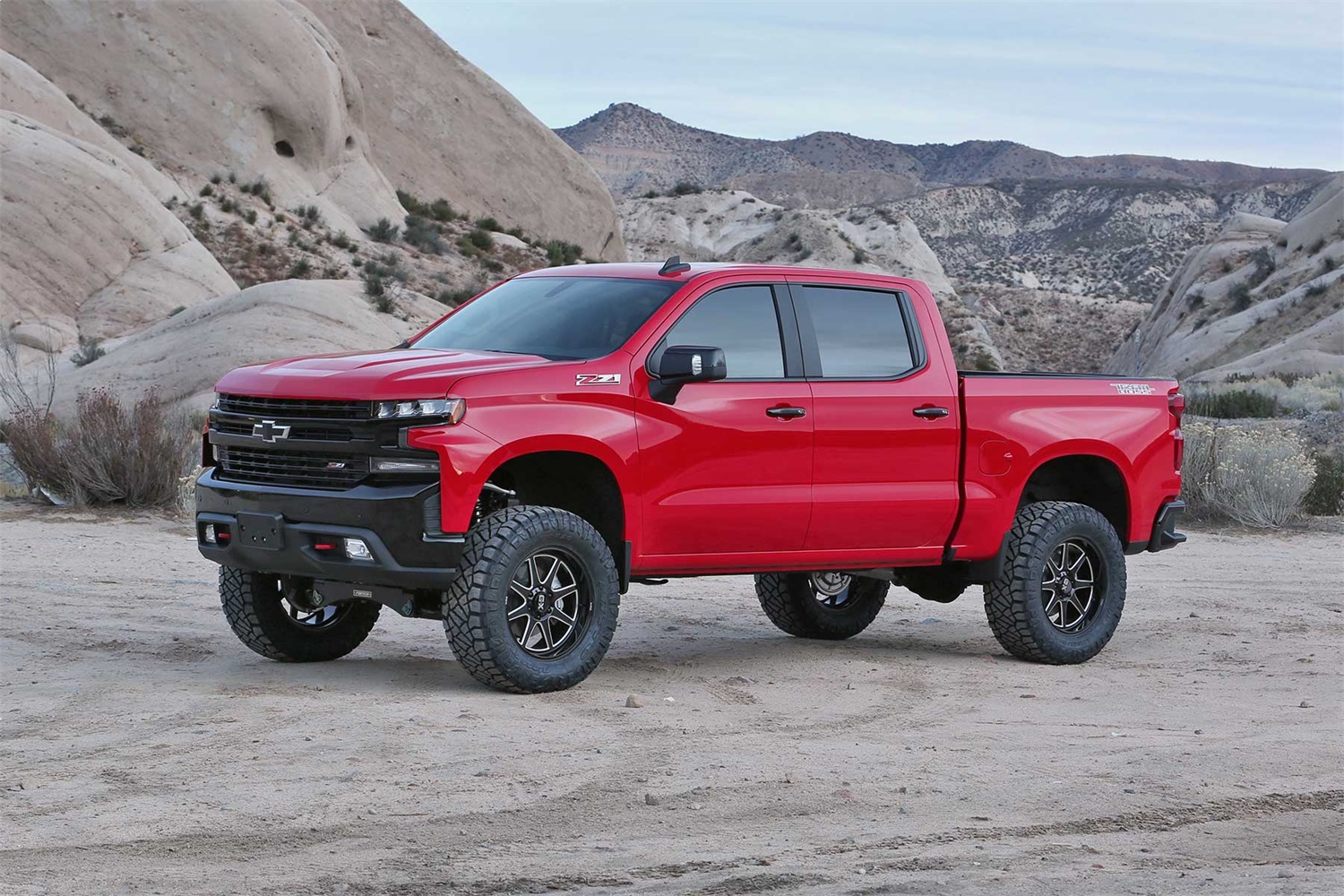

The Chevy Trail Boss and GMC AT4 both have a factory 2 in. lift compared to other GM 1500 trucks of the same year model. Fabtech's suspension system for these two trucks provide a 4 in. lift height on top of the factory 2 in. lift for clearance of 35 in. tall tires. Once a Trail Boss or AT4 is lifted with a Fabtech 4 in. system, the truck will sit at the same height as a 1500 with a 6 in. suspension and 35 in. tires. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech's proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy duty 1/4 in. thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed. The stainless steel Dirt Logic 2.5 Coilovers replace the Trail Boss or AT4 coilover with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride. Rear lift is accomplished by removing the factory 2 in. block and replacing it with a 5 in. block and u-bolt system. Fabtech has addressed all aspects of the Trail Boss suspension for full suspension travel with lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty.
Performance Lift System w/Shocks; 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks;
Specifications
| Brand | Fabtech |
|---|---|
| Part Number | K1141DL |
| Lift/Drop Height | 4 |
| Weight | 292.4 lbs |
Vehicle Fitment
| Year(s) | Make | Model | Bed | Submodel | Cab / Body | Notes |
|---|---|---|---|---|---|---|
| 2022 | Chevrolet | Silverado 1500 LTD | - | BASE | - | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks |
| 2022 | GMC | Sierra 1500 Limited | - | BASE | - | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks |
| 2021 | Chevrolet | Silverado 1500 | - | BASE | - | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks |
| 2020-2021 | GMC | Sierra 1500 | - | BASE | - | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks |
| 2020 | Chevrolet | Silverado 1500 | - | LT Trail Boss | - | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks |
| 2020 | Chevrolet | Silverado 1500 | - | LTZ | - | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks |
| 2020 | Chevrolet | Silverado 1500 | - | RST | - | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks |
| 2020 | Chevrolet | Silverado 1500 | - | Custom | - | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks |
| 2020 | Chevrolet | Silverado 1500 | - | Custom Trail Boss | - | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks |
| 2020 | Chevrolet | Silverado 1500 | - | WT | - | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks |
| 2020 | Chevrolet | Silverado 1500 | - | LT | - | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks |
| 2020 | Chevrolet | Silverado 1500 | - | High Country | - | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks |
| 2020 | Chevrolet | Silverado 1500 | - | SSV | - | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks |
| 2019 | Chevrolet | Silverado 1500 | 5'10" Bed | Custom Trail Boss | Crew Cab Pickup | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks; Can Not Use OEM Wheel And Tire~Not For Models Equipped w/Adaptive Ride Control |
| 2019 | Chevrolet | Silverado 1500 | 5'10" Bed | LT Trail Boss | Crew Cab Pickup | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks; Can Not Use OEM Wheel And Tire~Not For Models Equipped w/Adaptive Ride Control |
| 2019 | GMC | Sierra 1500 | 5'10" Bed | AT4 | Crew Cab Pickup | 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic 2.25 Shocks; Can Not Use OEM Wheel And Tire~Not For Models Equipped w/Adaptive Ride Control |
