Skyjacker P/N JK70LKLTSX-XM

Suspension Lift Kits

Description

First Flex Rate stage delivers a comfortable ride with the ability to flex/expand during full articulation as the suspension drops (full droop). This keeps the coil springs seated in the upper coil mount/bucket and the tires in contact with the terrain. Second Ride Rate stage only engages after compression past Flex Rate. Front and Rear Lower Control Arm Relocation Brackets make room for Long Arm Value Flex Lower Links. Value Flex Longer Lower Links adjustability allows proper caster settings to improve handling. Formed from 2-in. OD x 0.250 wall DOM tubing with pressed-in OEM style steel encased rubber bushings at the frame and the axle mount has Rock Jock's 1-1/4-in. forged Johnny Joints. These Johnny Joints provide over 30 degrees of unrestricted Flex movement in any direction. Front and Rear Adjustable Upper Control Arms keep in phase with lower links. Replacement Front Adjustable Track Bar includes Skyjacker installed pressed-in HD OEM style rubber bushing and an adjustable 3/4-in. Heavy-Duty Rod End, Jam Nut and Alignment Bushings. Front and Rear Bump Stop Spacers bolt onto the axle bump pads and keep the suspension travel safely in check. Rear Extended Length Sway Bar End Links allow full articulation as the suspension drops (full droop). Rear Track Bar Lower Axle Mount Bracket mounts directly to the rear axle housing to correct the track bar angle. Dana 44 Rear Track Bar Mount Brace strengthens the factory mount that is prone to failure. The track bar bracket and brace create better handling with less side-to-side sway. Shocks are a key link in-between the chassis and the moving parts of your suspension. Their key role is to optimize your suspension by keeping your tires in contact with the terrain. Skyjacker's ADX M2.0 Adventure Series Aluminum Monotube Shocks deliver modern technology in the design with an innovative off-road race-inspired full-displaced valving system.

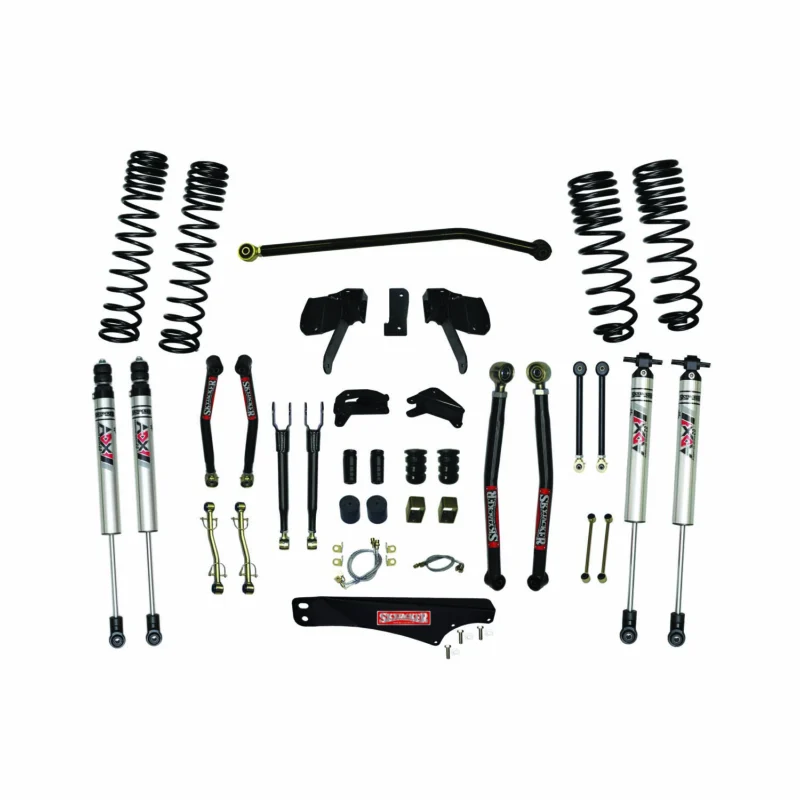

7 in. Lift Kit With D/R L/T Coil Springs, Bump Stop Spacers, Sway Bar End Links, Adjustable Control Arms, Front Adjustable Track Bar, Rear Track Bar Bracket, And ADX M2.0 Adventure Series Aluminum Monotube Shocks.

Specifications

BrandSkyjacker
Part NumberJK70LKLTSX-XM
Maximum Lift7
Mounting Hardware IncludedYes
Shocks IncludedYes
Weight25.5 lbs

Vehicle Fitment

Year(s)MakeModelSubmodelNotes
2018JeepWrangler JKRubiconFront and Rear Replacement Drive Shafts are Required.
2018JeepWrangler JKSaharaFront and Rear Replacement Drive Shafts are Required.
2018JeepWrangler JKSportFront and Rear Replacement Drive Shafts are Required.
2018JeepWrangler JKSport SFront and Rear Replacement Drive Shafts are Required.
2007-2017JeepWranglerRubiconFront and Rear Replacement Drive Shafts are Required.
2007-2017JeepWranglerSaharaFront and Rear Replacement Drive Shafts are Required.
2010-2017JeepWranglerSportFront and Rear Replacement Drive Shafts are Required.
2016JeepWrangler75th AnniversaryFront and Rear Replacement Drive Shafts are Required.
2016JeepWranglerSport SFront and Rear Replacement Drive Shafts are Required.
2011JeepWrangler70th AnniversaryFront and Rear Replacement Drive Shafts are Required.
2007-2011JeepWranglerXFront and Rear Replacement Drive Shafts are Required.
Skyjacker P/N JK70LKLTSX-XM

Suspension Lift Kits

$3,763.69

Check if this fits your vehicle Select your vehicle
Professional installation available
We install this! Suspension, wheel and tire labor varies a lot by vehicle and setup - contact your local store for an exact installation quote.
Built to orderShips direct from the manufacturer to your local H&H store. Call 888-865-4024 for lead times.
7 in. Lift Kit
Free store pickupReady at your local H&H
22 storesAcross the Southeast
Family-ownedServing trucks since 1987
Installation availableAsk your store for a quote
