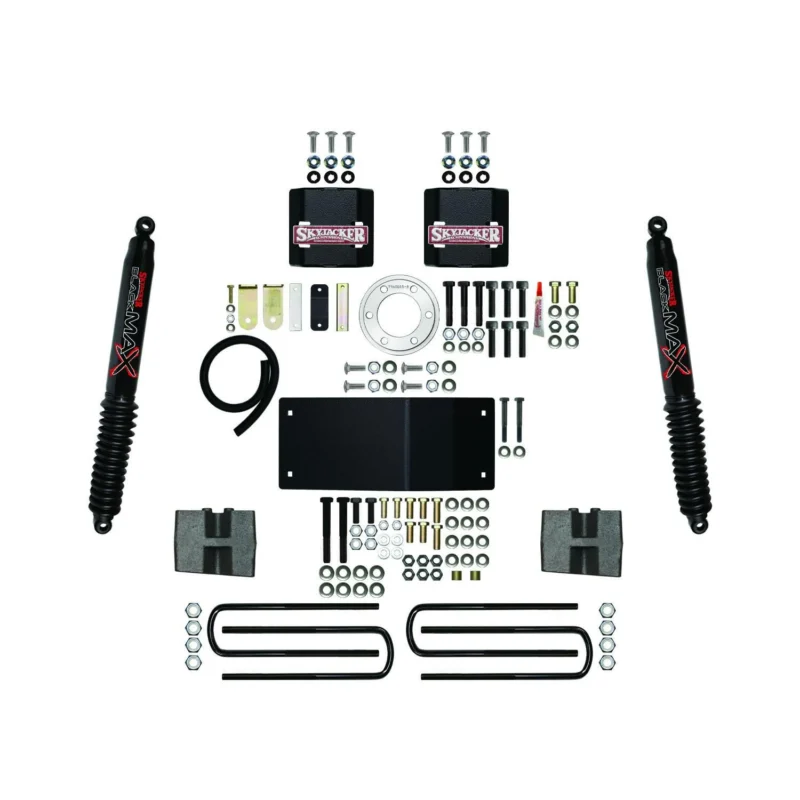

Skyjacker F2160BB - Suspension Lift Kits

Description

Precise engineered 1-piece strut spacers have a specific 'Pitch and Index' offset to preserve CV extension and to prevent CV axle overextension within the OEM tolerances. A differential skid plate tie the two crossmembers together to create a rigid sub-frame and added protection for vital steering and driveline components. This all-inclusive kit has front and rear brake line relocation brackets, differential vent tube extension, a CNC machined 6061-T6 aluminum front driveshaft spacer, rear driveshaft carrier bearing, cast ductile iron rear blocks with longer Grade 8 U-bolts and lock nuts. Complete with all high-quality grade mounting hardware. Every metal fabricated bracket is precise CNC laser cut and precision formed in CNC press break, there is expert workmanship in every component of the kit. Powder coated or Zinc plated to provide an extremely durable protective barrier to prevent corrosion. Black MAX Shocks feature advanced Foam-Cell technology, twin-tube construction with DOM tubing internal cylinder. Increased fluid capacity at least 30% more for MAXimum heat dissipation. Advanced foam-cell technology, a Low-Pro foam insert increases fluid density when fluid is being compressed (compression shock) and eliminates air as fluid expands (expansion shock). Orifice control disk opens and closes depending on rate of speed of the piston moving through the oil. Each end mount is arc-welded 360 degrees all around for strength. Black MAX offers 180 degree directional mounting (mount shaft up or shaft down). These Black MAX Shocks have specific valving and stroke for this application. Internal Stable Steer valving, a heavy-duty compression head, a sintered iron (harder, stronger) piston with a super-finish chrome plated shaft work together to ensure solid and consistent contact between your tires and the terrain. Black MAX increases performance and style to deliver a smooth, comfortable ride.

COM BOX. 6in.21>F150 4WD BKMAX

Specifications

BrandSkyjacker
Part NumberF2160BB
Lift/Drop Height6 in.
Weight80.4 lbs

Vehicle Fitment

Year(s)MakeModelSubmodelNotes
2021-2022FordF-150King Ranch6 in. Lift; Incl. Front Strut Spacers; Skid Plate; Driveshat Spacer; Rear Carrier Bearing Lowering Brackets; Lift Blocks; U-Bolts And Black Max Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021-2022FordF-150Lariat6 in. Lift; Incl. Front Strut Spacers; Skid Plate; Driveshat Spacer; Rear Carrier Bearing Lowering Brackets; Lift Blocks; U-Bolts And Black Max Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021-2022FordF-150Limited6 in. Lift; Incl. Front Strut Spacers; Skid Plate; Driveshat Spacer; Rear Carrier Bearing Lowering Brackets; Lift Blocks; U-Bolts And Black Max Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021-2022FordF-150Platinum6 in. Lift; Incl. Front Strut Spacers; Skid Plate; Driveshat Spacer; Rear Carrier Bearing Lowering Brackets; Lift Blocks; U-Bolts And Black Max Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021-2022FordF-150Police Responder6 in. Lift; Incl. Front Strut Spacers; Skid Plate; Driveshat Spacer; Rear Carrier Bearing Lowering Brackets; Lift Blocks; U-Bolts And Black Max Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021-2022FordF-150SSV6 in. Lift; Incl. Front Strut Spacers; Skid Plate; Driveshat Spacer; Rear Carrier Bearing Lowering Brackets; Lift Blocks; U-Bolts And Black Max Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021-2022FordF-150XL6 in. Lift; Incl. Front Strut Spacers; Skid Plate; Driveshat Spacer; Rear Carrier Bearing Lowering Brackets; Lift Blocks; U-Bolts And Black Max Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021-2022FordF-150XLT6 in. Lift; Incl. Front Strut Spacers; Skid Plate; Driveshat Spacer; Rear Carrier Bearing Lowering Brackets; Lift Blocks; U-Bolts And Black Max Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
