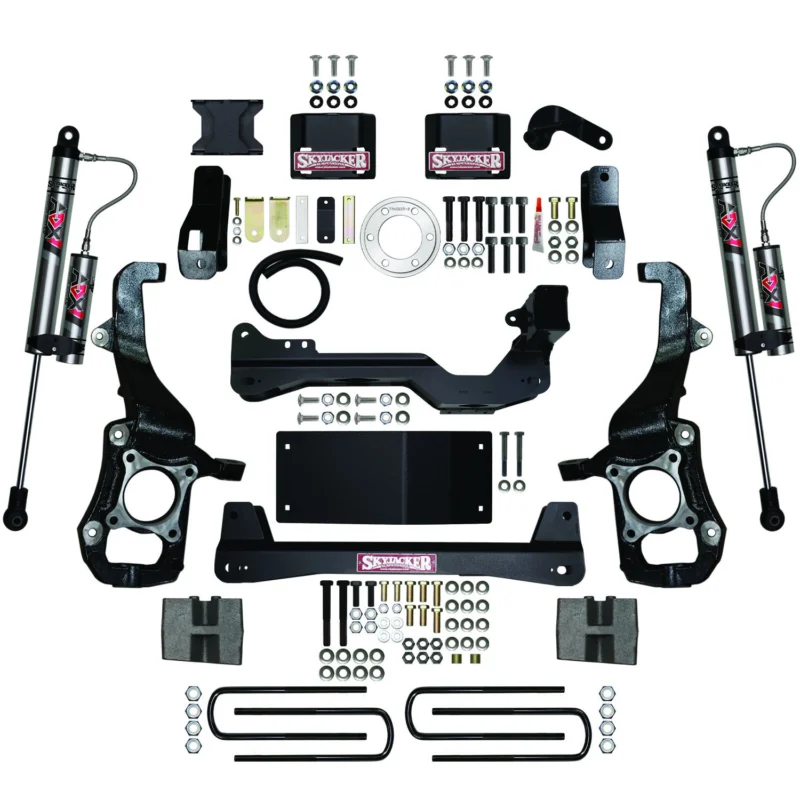

Skyjacker P/N F2145BKX

Suspension Lift Kits

Description

Mixing work and play driving, you need taller tires for ground clearance. Raising the suspension clearance of your F150, gives you room to run larger, more aggressive tires. With Skyjacker's all-in lift kit, you get unparalleled performance with uncompromised strength and maximum clearance. Skyjacker's unique rear crossmember incorporates the driver side sway bar drop bracket for strength and stability. Coupled with a passenger side sway bar drop bracket, the OEM sway bar operates at optimum angles. The pair of sturdy front and rear crossmembers provides a solid mounting point for the OEM lower control arms. A differential skid plate tie the two crossmembers together to create a rigid sub-frame and added protection for vital steering and driveline components. Three separate differential relocation brackets reposition and correct front CV axles and driveshaft angles. Retain your front Ford OEM tuned performance struts by utilizing top mounted strut spacers. Precise engineered 1-piece strut spacers have a specific 'Pitch and Index' offset to preserve CV extension and to prevent CV axle overextension within the OEM tolerances. Exacting engineered CNC machined ductile iron replacement steering knuckles preserve the OEM track width and maintain proper steering geometry through the travel cycle. Aligns to OEM specifications and works properly with Electric Stability Control (ESC) system. This all-inclusive kit has front and rear brake line relocation brackets, differential vent tube extension, a CNC machined 6061-T6 aluminum front driveshaft spacer, rear driveshaft carrier bearing, cast ductile iron rear blocks with longer Grade 8 U-bolts and lock nuts. Complete with all high-quality grade mounting hardware. Rear damper capacity enhanced with Nitro Shocks. Nitro Shocks feature 150 psi pressurized nitrogen gas, twin-tube construction for quicker response with reliable ride control. Nitro Shocks improve tire contact terrain for controlled performance.

4.5in.KT 21 F150 4WD SPCR ADX

Specifications

BrandSkyjacker
Part NumberF2145BKX
Lift/Drop Height4.5 in.
Weight212.9 lbs

Vehicle Fitment

Year(s)MakeModelSubmodelNotes
2021-2022FordF-150XL4.5 in. Lift; Incl. Steering Knuckles; Sway Bar Bracket; Skid Plate And ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021-2022FordF-150Lariat4.5 in. Lift; Incl. Steering Knuckles; Sway Bar Bracket; Skid Plate And ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021-2022FordF-150XLT4.5 in. Lift; Incl. Steering Knuckles; Sway Bar Bracket; Skid Plate And ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021-2022FordF-150King Ranch4.5 in. Lift; Incl. Steering Knuckles; Sway Bar Bracket; Skid Plate And ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021-2022FordF-150Limited4.5 in. Lift; Incl. Steering Knuckles; Sway Bar Bracket; Skid Plate And ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021-2022FordF-150Platinum4.5 in. Lift; Incl. Steering Knuckles; Sway Bar Bracket; Skid Plate And ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021-2022FordF-150Police Responder4.5 in. Lift; Incl. Steering Knuckles; Sway Bar Bracket; Skid Plate And ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021-2022FordF-150SSV4.5 in. Lift; Incl. Steering Knuckles; Sway Bar Bracket; Skid Plate And ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks; Does Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.
2021FordF-150LariatDoes Not Fit w/Regular/Standard Cab Models~18 inch diameter or larger wheels must be used.; 4.5 in. Lift; Incl. Steering Knuckles; Sway Bar Bracket; Skid Plate And ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks
Skyjacker P/N F2145BKX

Suspension Lift Kits

$2,309.53

Check if this fits your vehicle Select your vehicle
Professional installation available
We install this! Suspension, wheel and tire labor varies a lot by vehicle and setup - contact your local store for an exact installation quote.
Built to orderShips direct from the manufacturer to your local H&H store. Call 888-865-4024 for lead times.
Lift Kit-Suspension
Free store pickupReady at your local H&H
22 storesAcross the Southeast
Family-ownedServing trucks since 1987
Installation availableAsk your store for a quote
