Skyjacker F176524KS-XM - Suspension Lift Kits

Description

Skyjacker re-engineered the F350 Super Duty's suspension via an impressive 4-Link Conversion. Replace your OEM radius arms with integrated radius arm drop brackets plus upper and lower adjustable control arms. Formed from 2-in. OD x 0.250 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling. Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4? forged rod end with RB style rubber bushing. Skyjacker's legendary Softride technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. Skyjacker specifically engineered this Variable Rate Coil Spring for the F350 Super Duty 4WD Diesel to deliver a smoother ride. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this high-stress area and to keep the axle centered. A drop pitman corrects steering angle. Lowering brackets realign the front sway bar for maximum sway control. Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. A 4.5-in. rear block and U-bolt kit, E-brake relocation brackets, bump stop spacers, rear braided stainless steel brake line extensions and rear exhaust hanger brackets are included. Shocks are a key link in-between the chassis and your suspension. Front and rear damper capacity enhanced with ADX M2.0 Adventure Series Aluminum Monotube Shocks. ADX M2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever.

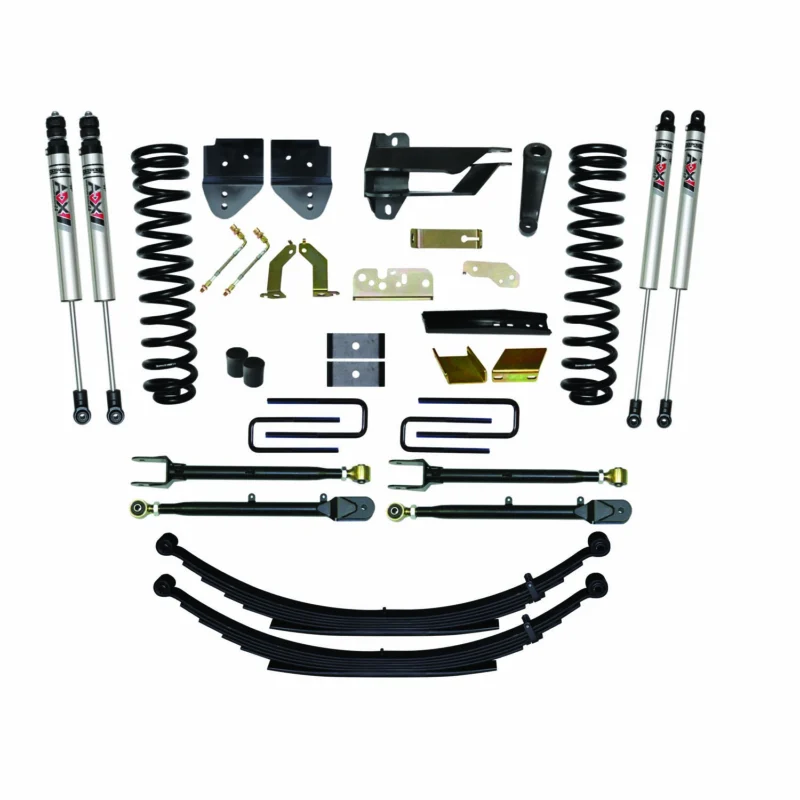

6 in. Lift Kit With Coil Springs, Pitman Arm, Track Bar Bracket, Stabilizer Bracket, Sway Bar Brackets, Brakeline Brackets, Radius Arm Brackets, 4-Link Arms, Rear Leaf Springs, U-bolts, And ADX M2.0 Adventure Series Monotube Shocks.

Specifications

BrandSkyjacker
Part NumberF176524KS-XM
Lift TypeFront - Coil Springs
Maximum Lift6
Mounting Hardware IncludedYes
Shocks IncludedYes
Weight125 lbs

Vehicle Fitment

Year(s)MakeModelSubmodelNotes
2017-2022FordF-250 Super DutyBASEDoes Not Fit Models With Gas Engine. Does Not Fit Tremor Models. If Front Driveshaft Vibration Occurs, Order Extended Driveshaft Part # F17685DS.
2017-2022FordF-350 Super DutyBASEDoes Not Fit Models With Gas Engine. Does Not Fit Tremor Models. If Front Driveshaft Vibration Occurs, Order Extended Driveshaft Part # F17685DS.

Own this? Tell other truck owners how it fits and holds up. Write the first product review

Skyjacker P/N F176524KS-XM

Suspension Lift Kits

$3,406.74

ⓘ
Check if this fits your vehicle Select your vehicle
Professional installation available
We install this! Labor runs $160/hour and suspension, wheel and tire work varies a lot by vehicle and setup — contact your local store for an exact installation quote.
800-953-7108
Nothing is charged for it today — your local H&H store works out the exact cost when they call to say your order has landed.
Built to orderShips direct from the manufacturer to your local H&H store. Call 800-953-7108 for lead times.

If an item can’t be sourced, a refund will be given and the order will be canceled.

Free store pickupReady at your local H&H
22 storesAcross the Southeast
Family-ownedServing trucks since 1987
Installation availableLabor from $160/hour — ask your store
Fitment guaranteeIf it doesn't fit, no restocking fee Details
Price matchFound it cheaper? Tell us before you buy Details
Warranty handled hereClaim it at the store, not by mail Details
