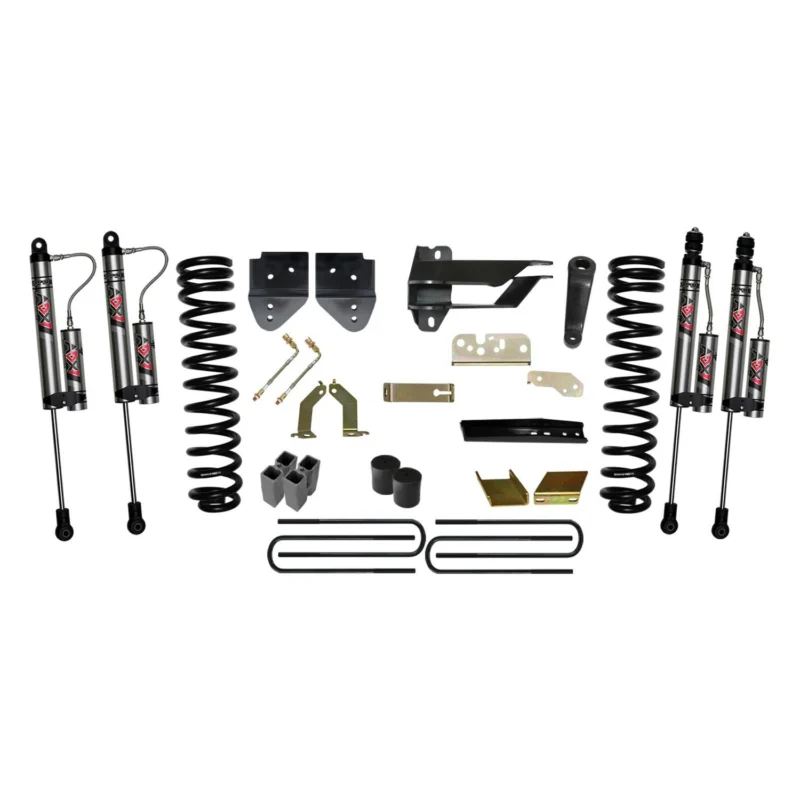

Skyjacker F17651K3-X - Suspension Lift Kits

Description

Whether beating blacktop, working the jobsite or heading to your next off-road exploit, raising your F350s suspension clearance will make it better. Raise it up 6-inches to run 37s for a larger ready-for-action stance. With Skyjacker's all-in lift kit, you can reap the benefits of On-Road Refinement and Off-Road Readiness. Skyjacker's legendary Softride(R) technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. Skyjacker specifically engineered this Variable Rate Coil Spring for the F350 Super Duty 4WD Diesel to deliver a smoother ride. Radius arm drop brackets lower the OEM radius arm mounts to correct caster specifications for proper alignment. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this high-stress area and to keep the axle centered. A drop pitman corrects steering angle. Lowering brackets realign the front sway bar for maximum sway control. Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. A 4.5-inch rear block and U-bolt kit, E-brake relocation brackets, bump stop spacers, rear braided stainless steel brake line extensions and rear exhaust hanger brackets are included. Shocks are a key link in-between the chassis and your suspension. Front and rear damper capacity enhanced with ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks. ADX 2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever. Together this complete kit maintains the factory geometry angles, alignment specifications and structural strength. Straightforward installation with step-by-step guide. Reap the benefits: On-Road Refinement and Off-Road Readiness.

6INKIT 2017 F350 4WD W/DIES

Specifications

BrandSkyjacker
Part NumberF17651K3-X
Lift/Drop Height6 in.

Vehicle Fitment

Year(s)MakeModelSubmodelNotes
2018, 2020-2022FordF-350 Super DutyKing Ranch6 in. Lift; Incl. Coil Springs; Pitman Arm; Track Bar Bracket; Rear Lift Blocks; U-Bolts And ADX 2.0 Adventure Remote Reservoir Monotube Shocks; Does Not Fit Models w/Magnetic Ride Control
2018, 2020-2022FordF-350 Super DutyLariat6 in. Lift; Incl. Coil Springs; Pitman Arm; Track Bar Bracket; Rear Lift Blocks; U-Bolts And ADX 2.0 Adventure Remote Reservoir Monotube Shocks; Does Not Fit Models w/Magnetic Ride Control
2018, 2020-2022FordF-350 Super DutyLimited6 in. Lift; Incl. Coil Springs; Pitman Arm; Track Bar Bracket; Rear Lift Blocks; U-Bolts And ADX 2.0 Adventure Remote Reservoir Monotube Shocks; Does Not Fit Models w/Magnetic Ride Control
2018, 2020-2022FordF-350 Super DutyPlatinum6 in. Lift; Incl. Coil Springs; Pitman Arm; Track Bar Bracket; Rear Lift Blocks; U-Bolts And ADX 2.0 Adventure Remote Reservoir Monotube Shocks; Does Not Fit Models w/Magnetic Ride Control
2018, 2020-2022FordF-350 Super DutyXL6 in. Lift; Incl. Coil Springs; Pitman Arm; Track Bar Bracket; Rear Lift Blocks; U-Bolts And ADX 2.0 Adventure Remote Reservoir Monotube Shocks; Does Not Fit Models w/Magnetic Ride Control
2018, 2020-2022FordF-350 Super DutyXLT6 in. Lift; Incl. Coil Springs; Pitman Arm; Track Bar Bracket; Rear Lift Blocks; U-Bolts And ADX 2.0 Adventure Remote Reservoir Monotube Shocks; Does Not Fit Models w/Magnetic Ride Control
2017, 2019FordF-350 Super DutyBASE6 in. Lift; Incl. Coil Springs; Pitman Arm; Track Bar Bracket; Rear Lift Blocks; U-Bolts And ADX 2.0 Adventure Remote Reservoir Monotube Shocks; Does Not Fit Models w/Magnetic Ride Control

Own this? Tell other truck owners how it fits and holds up. Write the first product review

Skyjacker P/N F17651K3-X

Suspension Lift Kits

$2,266.63

ⓘ
Check if this fits your vehicle Select your vehicle
Professional installation available
We install this! Labor runs $160/hour and suspension, wheel and tire work varies a lot by vehicle and setup — contact your local store for an exact installation quote.
800-953-7108
Nothing is charged for it today — your local H&H store works out the exact cost when they call to say your order has landed.
Built to orderShips direct from the manufacturer to your local H&H store. Call 800-953-7108 for lead times.

If an item can’t be sourced, a refund will be given and the order will be canceled.

Free store pickupReady at your local H&H
22 storesAcross the Southeast
Family-ownedServing trucks since 1987
Installation availableLabor from $160/hour — ask your store
Fitment guaranteeIf it doesn't fit, no restocking fee Details
Price matchFound it cheaper? Tell us before you buy Details
Warranty handled hereClaim it at the store, not by mail Details
