Skyjacker P/N D400BAK-X

Suspension Lift Kits

Description

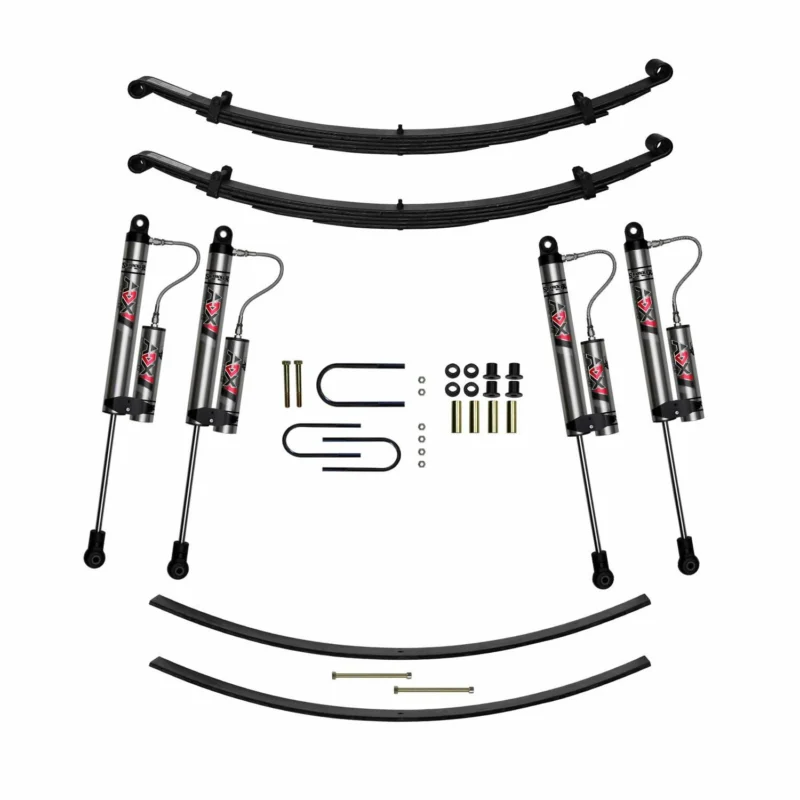

A versatile, purpose-built old iron Dodge is a workhorse with the heart of a warhorse. Invest in your durable Dodge with a premium, proven long lasting suspension system. Give your trusty Dodge W-Series pickup a new life with a new lift. Skyjacker Softride(R) leaf springs are individually shot-peened with hard steel pellets at very high velocities. Softride(R) springs also have tapered leafs to distribute loads more evenly and to create more flex at the leaf ends. Teflon(R) wear pads between leafs and bolt style spring clips prevent binding and eliminate friction. Skyjacker's engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life on these replacement front leaf springs. Includes front u-bolt kit and Polyurethane spring eye bushings with replacement sleeves. OEM rear leaf springs remain and a high-quality add-a-leaf kit lifts the rear. Skyjacker Softride(R) Technology enhances every single aspect of the rear add-a-leaf spring performance. These individual leafs are shot-peened with hard steel pellets at very high velocities. Skyjacker's advanced method of shot-peening compresses the surface of the steel thereby increasing the tensile strength of the spring. ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks exceedingly enhances front and rear dampening. ADX 2.0 offer unmatched shock damping and have specific valving and stroke for this application. ADX 2.0 has an innovative off-road race-inspired full-displaced valving system. Engineered for higher speed applications, remote reservoir shocks still perform at low speeds. The external remote reservoir separates the nitrogen gas from the oil with an Internal Floating Piston (IFP). The majority of the reservoir contains pressurized nitrogen gas. The IFP prevents the gas and oil from mixing or foaming (cavitation). Nitrogen charged with IFP Technology = Quickest Shock Reaction Time Ever. From higher speeds to a slow advance, ADX 2.0 works.

4in. SOFT 74.5-93 DGE FULL SZ

Specifications

BrandSkyjacker
Part NumberD400BAK-X
Lift/Drop Height4 in.

Vehicle Fitment

Year(s)MakeModelSubmodelNotes
1977-1993DodgeW150BASE4 in. Lift; Incl. Front Leaf Springs; Leaf Spring Bushings; Bushing Sleeves; U-Bolts; ADX 2.0 Adventure Series Remote Reservoir Monotube Shocks; Steering Arm Part #DA65 Is Required For 1975-1977 Models~Pitman Arm Part #DA40 Is Required For 1978-1993 Models~Adjustable Drag Link Part #DL10 Is Required~Brake Line Part #FBL65 And RBL65 Are Required For 1975 Models~Models Equipped With Front Sway Bar Require Part #SBL20~Brake Line Part #FBL65 And RBL65 Are Recommended For 1975 Models~Brake Line Part #FBL60 And RBL61 Are Recommended For 1976-1981 Models~Brake Line Part #FBL60 And RBL60 Are Recommended For 1982-1993 Models~Does Not Fit Models With Diesel Engine
1981-1993DodgeW250BASE4 in. Lift; Incl. Front Leaf Springs; Leaf Spring Bushings; Bushing Sleeves; U-Bolts; ADX 2.0 Adventure Series Remote Reservoir Monotube Shocks; Steering Arm Part #DA65 Is Required For 1975-1977 Models~Pitman Arm Part #DA40 Is Required For 1978-1993 Models~Adjustable Drag Link Part #DL10 Is Required~Brake Line Part #FBL65 And RBL65 Are Required For 1975 Models~Models Equipped With Front Sway Bar Require Part #SBL20~Brake Line Part #FBL65 And RBL65 Are Recommended For 1975 Models~Brake Line Part #FBL60 And RBL61 Are Recommended For 1976-1981 Models~Brake Line Part #FBL60 And RBL60 Are Recommended For 1982-1993 Models~Does Not Fit Models With Diesel Engine
1986, 1992DodgeW150BASESteering Arm Part #DA65 Is Required For 1975-1977 Models~Pitman Arm Part #DA40 Is Required For 1978-1993 Models~Adjustable Drag Link Part #DL10 Is Required~Brake Line Part #FBL65 And RBL65 Are Required For 1975 Models~Models Equipped With Front Sway Bar Require Part #SBL20~Brake Line Part #FBL65 And RBL65 Are Recommended For 1975 Models~Brake Line Part #FBL60 And RBL61 Are Recommended For 1976-1981 Models~Brake Line Part #FBL60 And RBL60 Are Recommended For 1982-1993 Models~Does Not Fit Models With Diesel Engine; 4 in. Lift; Incl. Front Leaf Springs; Leaf Spring Bushings; Bushing Sleeves; U-Bolts; ADX 2.0 Adventure Series Remote Reservoir Monotube Shocks
1975-1977, 1984-1989DodgeW100BASE4 in. Lift; Incl. Front Leaf Springs; Leaf Spring Bushings; Bushing Sleeves; U-Bolts; ADX 2.0 Adventure Series Remote Reservoir Monotube Shocks; Steering Arm Part #DA65 Is Required For 1975-1977 Models~Pitman Arm Part #DA40 Is Required For 1978-1993 Models~Adjustable Drag Link Part #DL10 Is Required~Brake Line Part #FBL65 And RBL65 Are Required For 1975 Models~Models Equipped With Front Sway Bar Require Part #SBL20~Brake Line Part #FBL65 And RBL65 Are Recommended For 1975 Models~Brake Line Part #FBL60 And RBL61 Are Recommended For 1976-1981 Models~Brake Line Part #FBL60 And RBL60 Are Recommended For 1982-1993 Models~Does Not Fit Models With Diesel Engine
1981DodgeW250BASESteering Arm Part #DA65 Is Required For 1975-1977 Models~Pitman Arm Part #DA40 Is Required For 1978-1993 Models~Adjustable Drag Link Part #DL10 Is Required~Brake Line Part #FBL65 And RBL65 Are Required For 1975 Models~Models Equipped With Front Sway Bar Require Part #SBL20~Brake Line Part #FBL65 And RBL65 Are Recommended For 1975 Models~Brake Line Part #FBL60 And RBL61 Are Recommended For 1976-1981 Models~Brake Line Part #FBL60 And RBL60 Are Recommended For 1982-1993 Models~Does Not Fit Models With Diesel Engine; 4 in. Lift; Incl. Front Leaf Springs; Leaf Spring Bushings; Bushing Sleeves; U-Bolts; ADX 2.0 Adventure Series Remote Reservoir Monotube Shocks
1975-1980DodgeW200BASE4 in. Lift; Incl. Front Leaf Springs; Leaf Spring Bushings; Bushing Sleeves; U-Bolts; ADX 2.0 Adventure Series Remote Reservoir Monotube Shocks; Steering Arm Part #DA65 Is Required For 1975-1977 Models~Pitman Arm Part #DA40 Is Required For 1978-1993 Models~Adjustable Drag Link Part #DL10 Is Required~Brake Line Part #FBL65 And RBL65 Are Required For 1975 Models~Models Equipped With Front Sway Bar Require Part #SBL20~Brake Line Part #FBL65 And RBL65 Are Recommended For 1975 Models~Brake Line Part #FBL60 And RBL61 Are Recommended For 1976-1981 Models~Brake Line Part #FBL60 And RBL60 Are Recommended For 1982-1993 Models~Does Not Fit Models With Diesel Engine
1977DodgeW100BASESteering Arm Part #DA65 Is Required For 1975-1977 Models~Pitman Arm Part #DA40 Is Required For 1978-1993 Models~Adjustable Drag Link Part #DL10 Is Required~Brake Line Part #FBL65 And RBL65 Are Required For 1975 Models~Models Equipped With Front Sway Bar Require Part #SBL20~Brake Line Part #FBL65 And RBL65 Are Recommended For 1975 Models~Brake Line Part #FBL60 And RBL61 Are Recommended For 1976-1981 Models~Brake Line Part #FBL60 And RBL60 Are Recommended For 1982-1993 Models~Does Not Fit Models With Diesel Engine; 4 in. Lift; Incl. Front Leaf Springs; Leaf Spring Bushings; Bushing Sleeves; U-Bolts; ADX 2.0 Adventure Series Remote Reservoir Monotube Shocks
1976DodgeW200BASESteering Arm Part #DA65 Is Required For 1975-1977 Models~Pitman Arm Part #DA40 Is Required For 1978-1993 Models~Adjustable Drag Link Part #DL10 Is Required~Brake Line Part #FBL65 And RBL65 Are Required For 1975 Models~Models Equipped With Front Sway Bar Require Part #SBL20~Brake Line Part #FBL65 And RBL65 Are Recommended For 1975 Models~Brake Line Part #FBL60 And RBL61 Are Recommended For 1976-1981 Models~Brake Line Part #FBL60 And RBL60 Are Recommended For 1982-1993 Models~Does Not Fit Models With Diesel Engine; 4 in. Lift; Incl. Front Leaf Springs; Leaf Spring Bushings; Bushing Sleeves; U-Bolts; ADX 2.0 Adventure Series Remote Reservoir Monotube Shocks
Skyjacker P/N D400BAK-X

Suspension Lift Kits

$1,761.51

Check if this fits your vehicle Select your vehicle
Professional installation available
We install this! Suspension, wheel and tire labor varies a lot by vehicle and setup - contact your local store for an exact installation quote.
Built to orderShips direct from the manufacturer to your local H&H store. Call 888-865-4024 for lead times.
4 In. Lift Kit
