AXON is the most durable, reliable, feature packed powersports winch anywhere. Designed, engineered, tested, and assembled in the USA, AXON’s no-compromise quality means it has what it takes to stand up to whatever you throw at it. AXON is a versatile workhorse that gives you a variety of control options. All models come with a dash switch that operates the winch while also providing winching feedback (AXON 35 comes with an adaptor so the switch can be mounted on handlebar). The HUB Wireless Receiver (sold separately for AXON 35) lets you operate the winch using your smartphone from over 100 ft away. Easy-to-read gauges show the winch’s motor temperature, load info, and the vehicle’s battery info. The new Plow Mode lets you seamlessly operate your plow—all from your smartphone. AXON 45 and 55 also include a corded remote socket and wiring harness (the corded remote is sold separately). Plow Mode provides superior control over a plow’s position with programmable upper and lower travel limits, preventing possible damage from raising or lowering the blade too much. The one-touch Auto Move option adjusts the plow to its upper and lower limits with one-touch operation, eliminating the need to operate multiple controls at once. Plow Mode requires a Hub Receiver and Smartphone to work (HUB Receiver sold separately for AXON 35 and 35-S). AXON’s unique 2-in-1 motor and contactor unit, aka, Motactor, saves space and provides supreme efficiency. Plus, it saves on install time, so you can put the winch to work faster. The IP68/IP69K-rated waterproof construction keeps the gunk out and the winch working in all conditions. Available in 3,500 lb., 4,500 lb., and 5,500 lb. capacities, there’s an AXON to suite a variety of ATVs and UTVs. With reliability, power, and versatility, AXON lets you GO PREPARED for work or play.

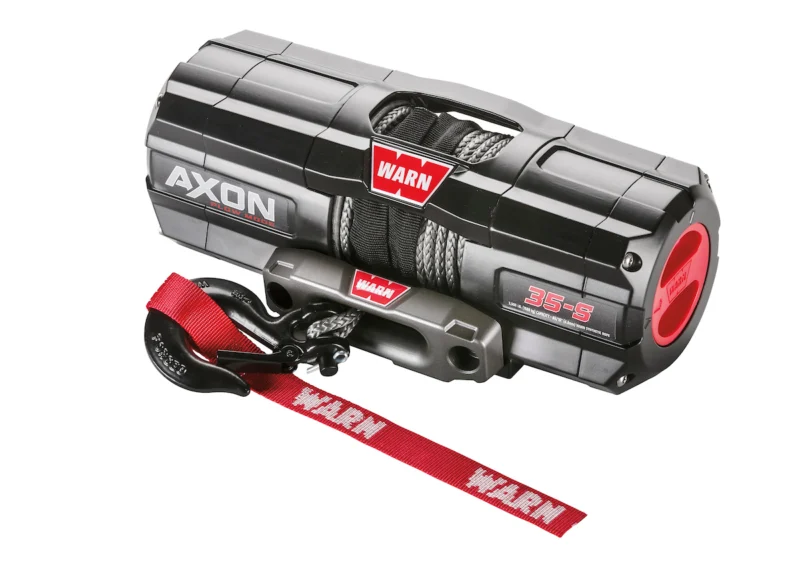

AXON 35-S includes 50-ft. of lightweight, easy-to-handle 3/16-in. Spydura synthetic rope, Epic hawse fairlead, and black hook, and a rockerbar digital control switch. AXON is the ultimate powersports winch featuring Plow Mode.
| Brand | Warn |
|---|---|
| Part Number | 110230 |
| Brake Activation | Automatic |
| Brake Type | Drum |
| Cable Diameter | 0.1875 |
| Cable Length | 50 |
| Cable Material | Synthetic Rope |
| Fairlead Type | Hawse |
| Free Spooling | Yes |
| Gear Ratio | 168:1 |
| Gearing | 3-Stage Planetary |
| Length | 13.3 |
| Maximum Height | 4.8 |
| Maximum Width | 4.6 |
| Motor Type | Permanent Magnet |
| Motor Voltage | 12 |
| Mounting Bolt Pattern Length | 4.87 |
| Mounting Bolt Pattern Width | 3 |
| Mounting Hole Quantity | 4 |
| Plow Mode | Yes |
| Power Out | Yes |
| Rated Line Pull | 3500 |
| Type | Electric |
| Weight | 20 lbs |
| D Shackle Included | No |
No fitment data available.
