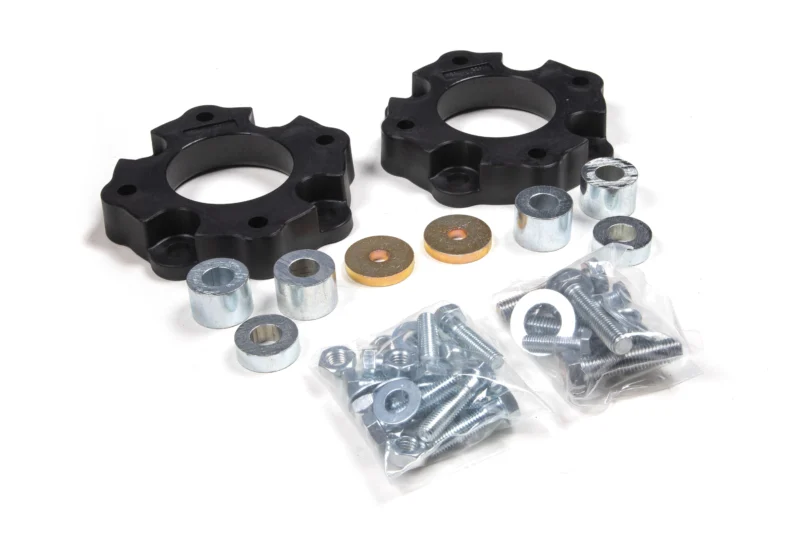

Get the stance and attitude you want for your 2022 Tundra with this 2" lift Kit. This easy to install system makes room for 33" tires without major modifications. No strut compressor or disassembly of the factory strut is required. 2” front spacers and a 1” rear spacer provide the lift while also balancing height front to rear. Included along with the polyurethane spacers are skid plate drop spacers to allow the factory skid plate to be retained, plus sway bar drop spacers and extended front bump stops to create a full solution that does not sacrifice performance. Upgrade the rear shocks to match the added capability of the front with either Nitro gas charged shocks or Fox 2.0 Adventure Series shocks.
| Brand | Zone Offroad |
|---|---|
| Type | Lift Kits |
| Installation Time | About 3 hours 30 minutes |
| Weight | 2.4 - 218.9 lbs |
| Accommodates Factory Wheels | No, Yes |
| Adjustable | No |
| Back Spacing | 4.5", 5.5", See Associated Comments, 6.125", 5, ... |
| Back Spacing 2 | 4.5", 6.25", 7, 5.5", 5", ... |
| Back Spacing 3 | 4.5", 6.25", 5-6, 5" |
| Finish | Powdercoat, e-Coat |
| Fmvss Certification | N/A (See notes), No |
| Front Lift Height | 2", 6", 5", 3", 2.5", ... |
| Front Lift Method | Strut Spacers, Knuckle & Strut Spacer, Knuckle & Drop Cross-Member, Top Spacer, Strut Spacer, ... |
| Installation Difficulty | 3 out of 5, 4 out of 5, Moderately Easy (2 out of 5), Difficult (4 out of 5), 1 out of 5, ... |
| Label Name | 2010-2023 Toyota 4Runner 3" Suspension Lift Kit, 1.5" Rear, Coil Spacer- Spacer Front, 2.0 Adv Series Rear, 2010-2023 Toyota 4Runner 3" Suspension Lift Kit, 1.5" Rear, Coil Spacer - Spacer Front, Nitro Rear |
| Lift Type | Lift Kit, Leveling Kit |
| Max Tire Size | 35 x 12.5, 33 x 12.5, 285/65, 37x12.5, See Associated Comments, ... |
| Max Tire Size 2 | 35 x 12.5, 33 x 12.5, 37x12.5, 295/60, 295 / 60, ... |
| Max Tire Size 3 | 35 x 12.5, 35x12.5, 305/55, 33 x 12.5 |
| Rear Lift Height | 1", 3", 2", 4", 1.5", ... |
| Rear Lift Method | Cast Blocks, Coil Spring Spacers, Coil Spacers, Fabricated Blocks, Block Kit |
| Required Tools | Strut compressor, 1-9/16 or 40MM 12 pt socket; Reciprocating Saw |
| Requires Metal Cutting | No |
| Requires Welding | No, Yes |
| Shocks Included | Fox Adventure Shocks, Zone Nitro Shocks |
| Wheel Size | 18 x 9, 20 x 9, See Associated Comments, 20x9, 16 x 8, ... |
| Wheel Size 2 | 20 x 9, 20x9, 17 x 9 |
| Wheel Size 3 | 22 x 9, 20x9, 20 x 9 |
| Wheel/Tire Fitment Note 2 | Minimal trimming |
| Wheel/Tire Fitment Note 3 | No trimming |
| Wheel/Tire Fitment Note | Trimming required |
Use the Find Your Fit tool above to check if this product fits your specific vehicle.
