The new generation Terra Series winches from Superwinch are engineered specifically to meet the rugged demands of ATV and UTV enthusiasts. Available 2500 lbs. capacities with a choice of wire or synthetic rope, these powerful winches have been redesigned and improved inside and out. Each winch is loaded with a powerful motor, strong all steel gearing and a steel drum for superior performance and durability. All Terra Series winches are equipped with a remotely mountable control box that houses a sealed solenoid and circuit breaker to ensure reliable operation. Free spool function is simple to manage with an easy to engage ergonomic control knob. Each winch includes a 10' wired remote control and a handlebar mounted rocker switch for dependable control and maximum versatility. The Terra Series winches have an IP67 rating for water and dust protection so they are always ready for action.
Terra 2500 Winch
| Brand | Superwinch |
|---|---|
| Type | Winch |
| Weight | 24 - 33 lbs |
| Brake System | Full load holding automatic brake |
| Can Ship By Ground Delivery | Yes |
| Clutch | Free Spooling, Ergonomic Control |
| Color | Textured Gray |
| Dimensions | 12.7in L x 4.5in W x 4.5in H (322mm L x 114mm W x 114mm H), 14.4in L x 4.5in W x 4.5in H (366mm L x 114mm W x 114mm H) |
| Drum | Durable fully welded steel drum |
| EN Compliant | No |
| Fairlead | Aluminum hawse, Stainless Steel 4-Way Roller |
| Finish | Powder Coated |
| Gear Ratio | 198:1, 138:1 |
| Gear System | 3-stage planetary |
| IP Rating | IP67 Waterproof and Dustproof |
| Material | Steel |
| Motor | 1.5 HP, permanent magnet motor, 12V DC, 1.8 HP, permanent magnet motor, 12V DC, 1.6 HP, permanent magnet motor, 12V DC |
| Mounting Bolt Pattern | 3.0in x 4.87in (76mm x 124mm) |
| Net. Weight | 20 lbs (9.1kgs), 17 lbs (7.7kgs), 19 lbs (8.6kgs), 15 lbs (6.8kgs), 22 lbs (10kgs), ... |
| Rated Single Line Pull (Lbs) | 3500, 2500, 4500 |
| Remote Control | 10 ft Rubber Sealed Hand-held plus Handle Bar Rocker Switch |
| Remote Type | Wire |
| Rope | 3/16 in x 40 ft (4.76mm × 12.19m), 15/64 in x 50 ft (6.0mm × 15.2m), 1/4 in x 50 ft (6.3mm × 15.2m) |
| Rope Length | 3/16 in x 40 ft (4.76mm x 12.2m), 7/32 in x 32 ft (5.5mm x 9.75m), 1/4 in x 50 ft (6.35mm x 15.2m), 7/32 in x 32 ft (5.55mm x 9.75m) |
| Rope Material | Synthetic, Steel Wire |
| Voltage | 12V DC |
| Warranty | Limited Lifetime Mechanical/3 Year Limited Electrical |
| Winch Hook | Heavy-Duty, Clevis Pinned Latched |

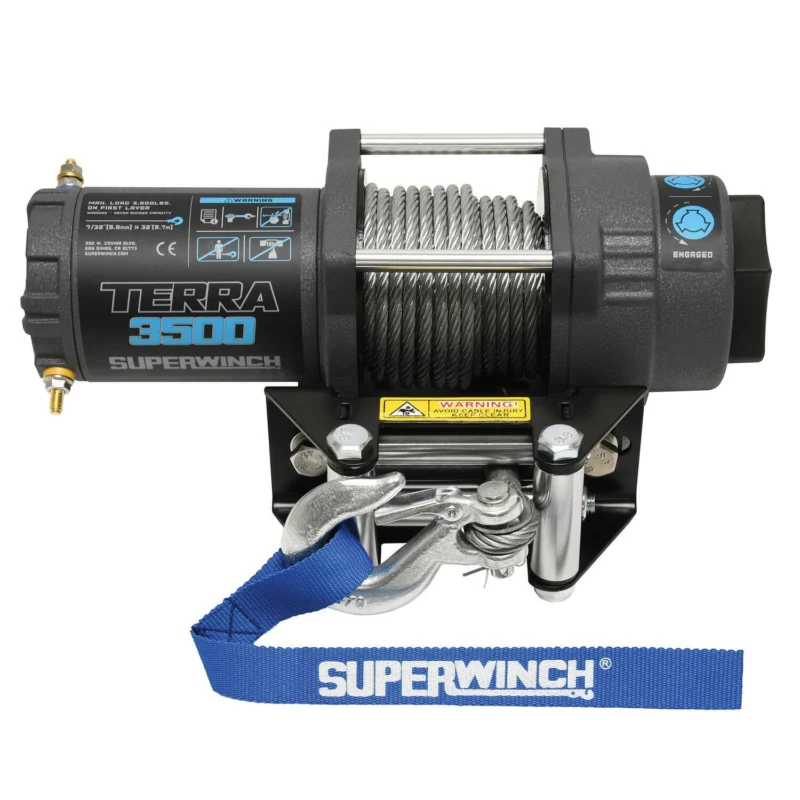

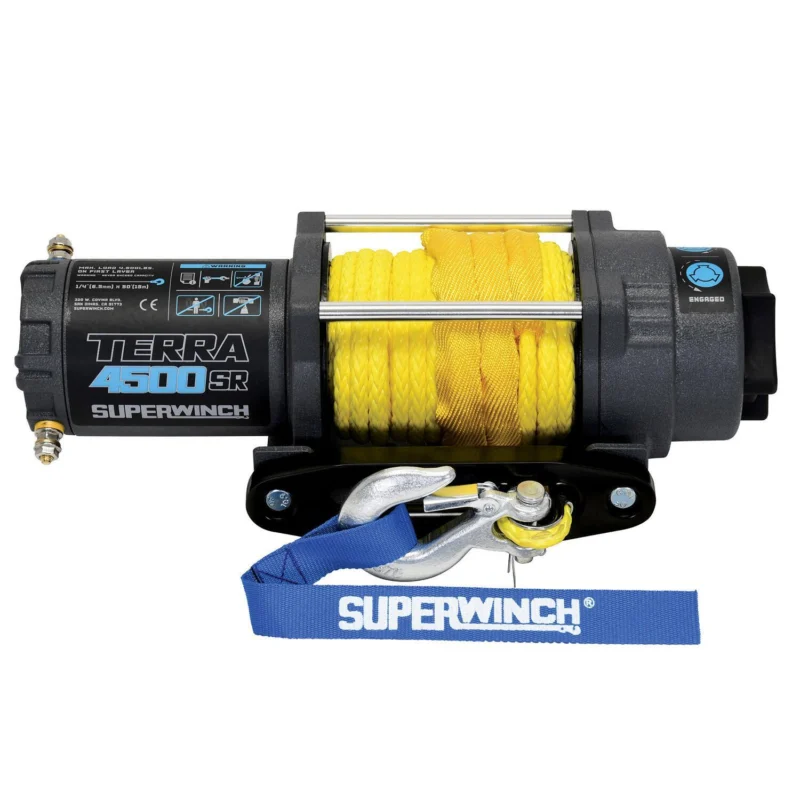

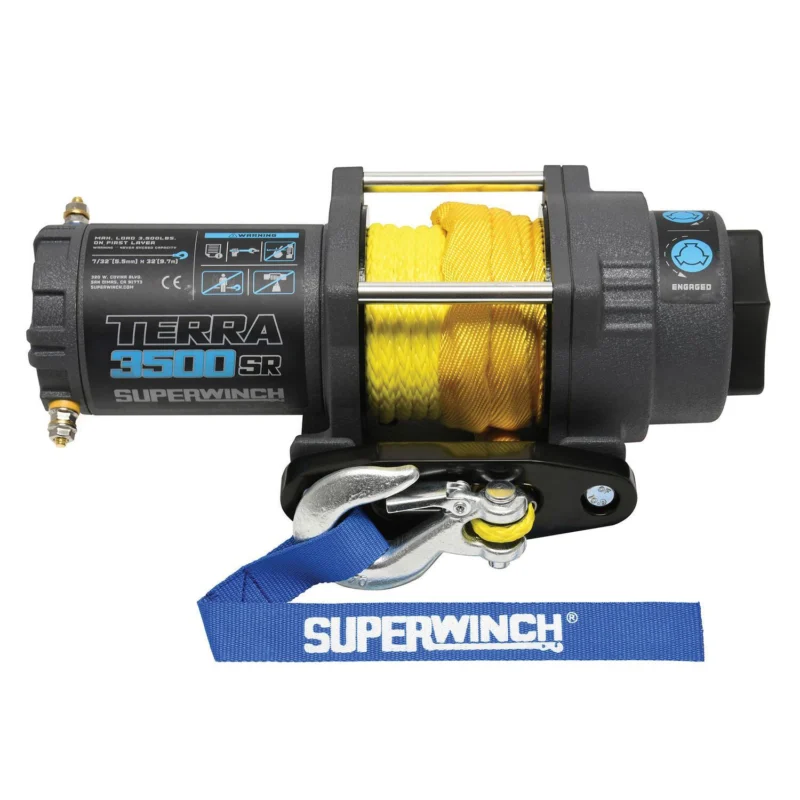

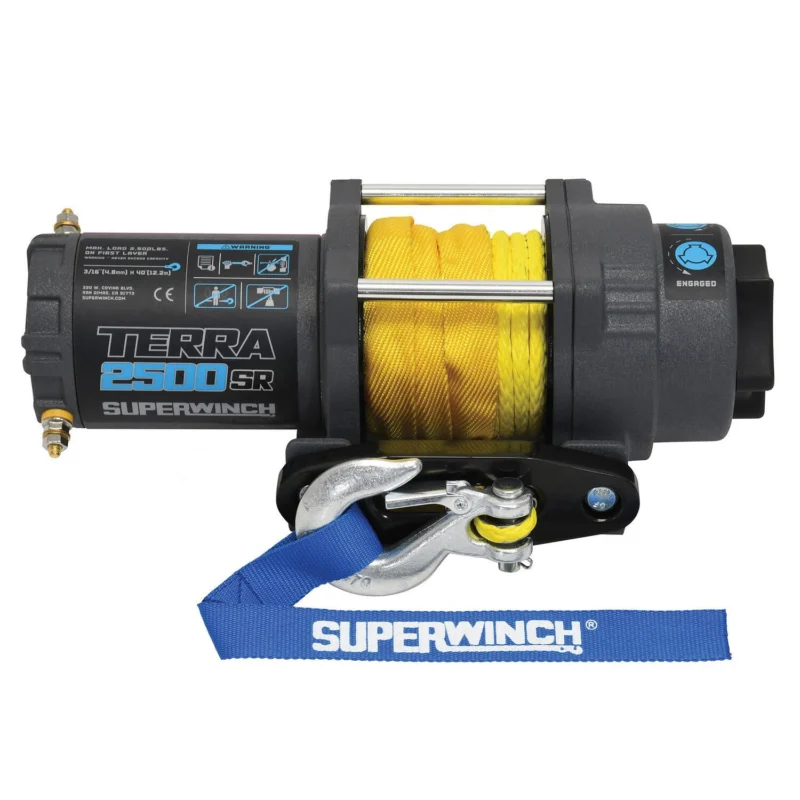

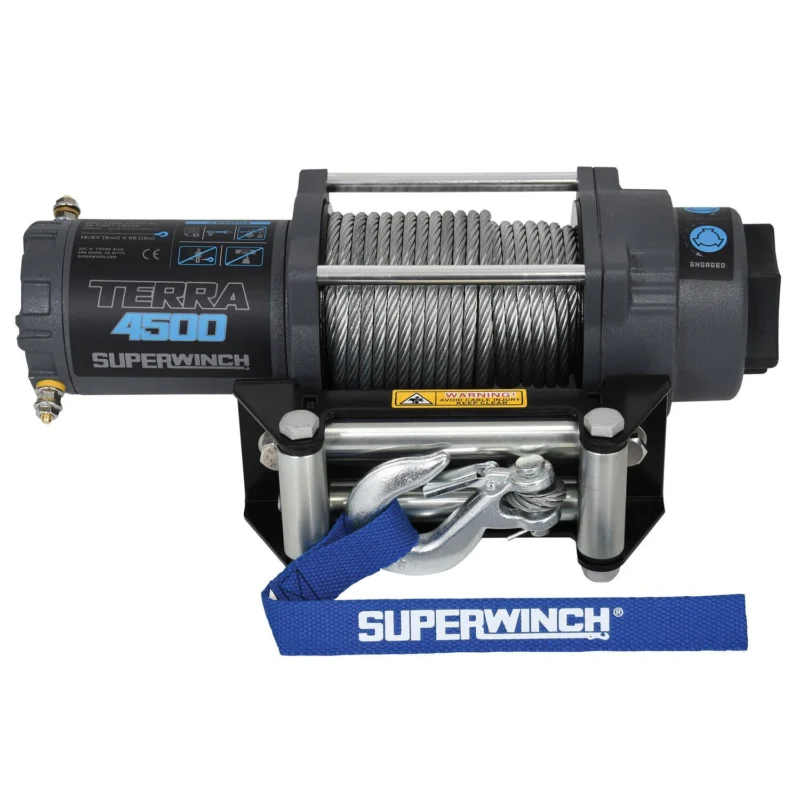

| Winch Model | Terra 2500, Terra 4500SR, Terra 3500, Terra 4500, Terra 2500SR, ... |
| Winch Series | Terra Series |
6 products in this series
