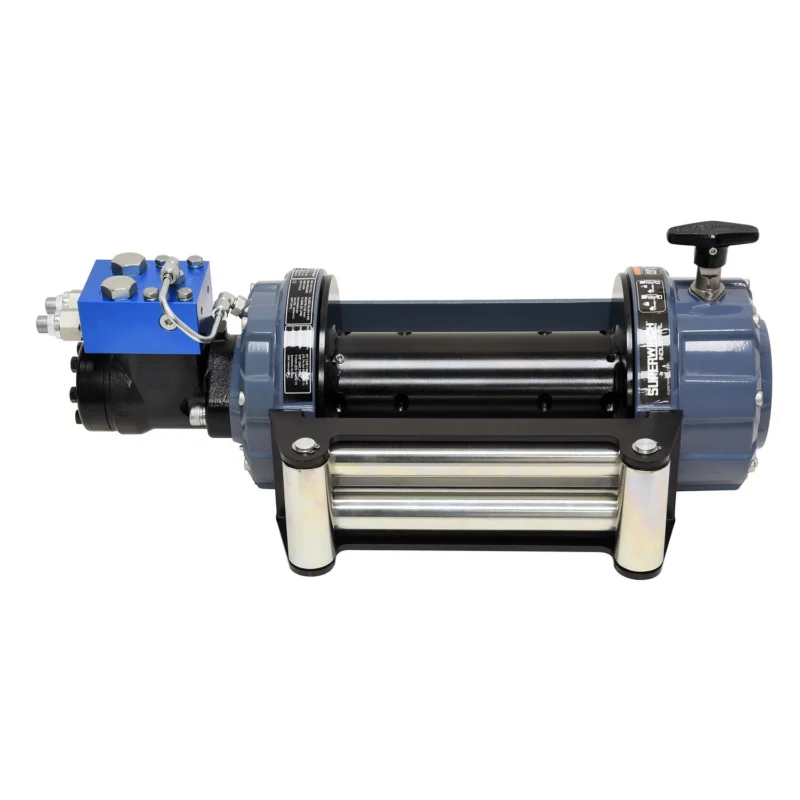

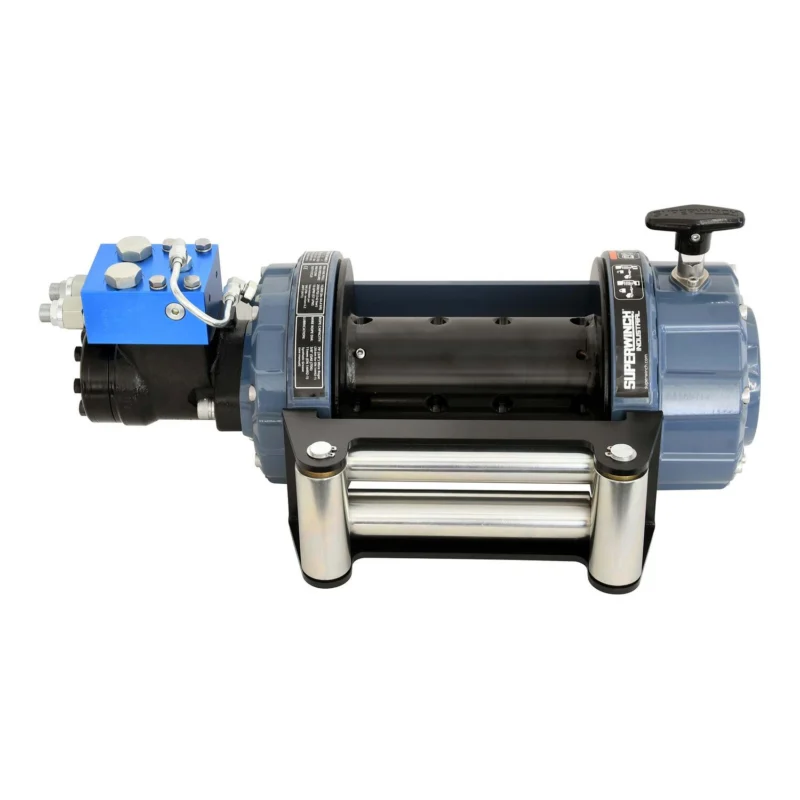

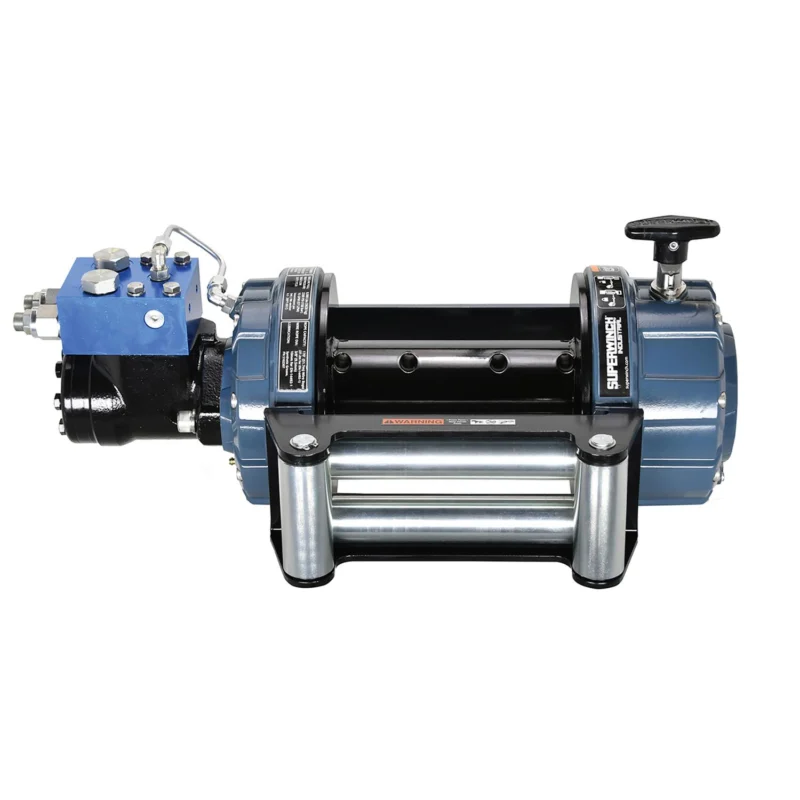

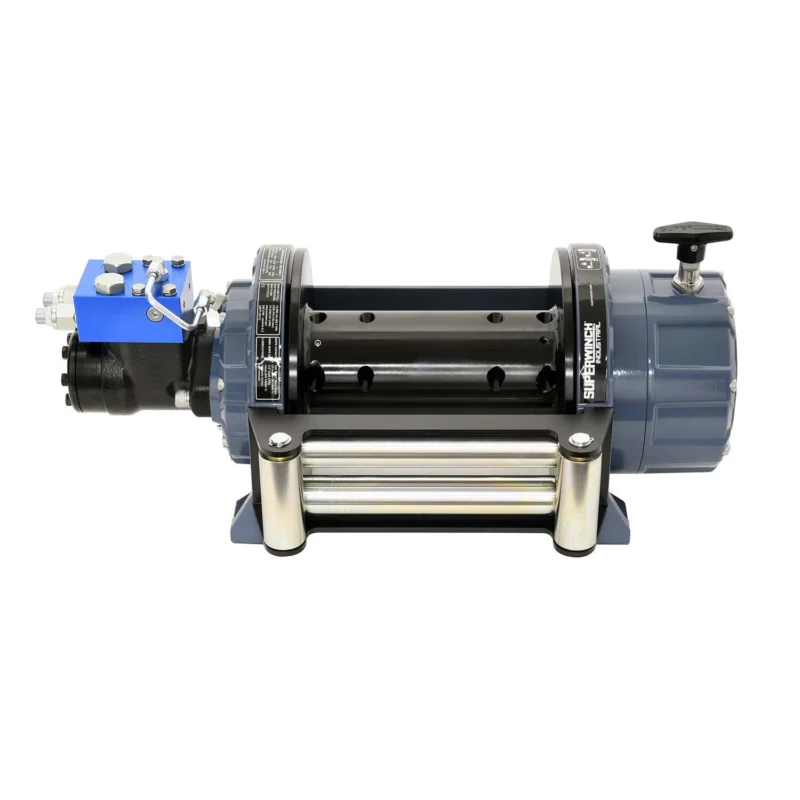

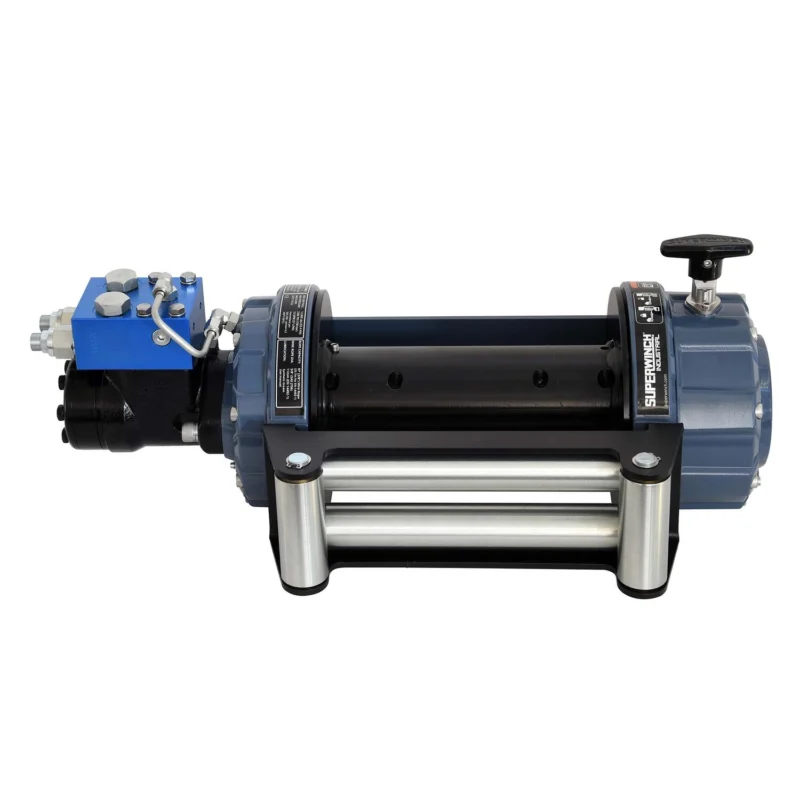

SI 8000 Hydraulic Winch
| Brand | Superwinch |
|---|---|
| Type | Winch |
| Weight | 121 - 197 lbs |
| Brake System | Spring-Applied, Hydraulic Release Multi-Disc |
| Can Ship By Ground Delivery | Yes, No |
| Clutch | Multi-Position Manual Pull-and-Turn |
| Color | Blue Gray |
| Drum Barrel Diameter | 3.9 in. / 99 mm |
| Drum Size | Standard, Narrow |
| EN Compliant | Yes |
| Finish | Powder Coated |
| Gear Ratio | 16:1 |
| Gear System | 2-stage planetary |
| Load Block | Superblock Bi-Directional Load Control Valves |
| Lubrication | Synthetic Grease |
| Material | Steel |
| Maximum Input Flow | 15 gpm/57 lpm |
| Maximum Input Pressure | 2050 psi/142 bar, 2200 psi/150 bar, 2300 psi/158 bar |
| Minimum Rope Breaking Strength | 15100 lbs. (SAE J706) 71.2 kN (EN 14492-1), 15100 lbs. (SAE J706) 89.0 kN (EN 14492-1), 15100 lbs. (SAE J706); 106.8 kN (EN 14492-1) |
| Motor Type | 120 cc Hydraulic Gear Motor |
| Rated Single Line Pull (Lbs) | 10000, 8000, 15000 |
| Recommended Rope | 3/8" (SAE J706) 10 mm (EN 14492-1), 3/8" (SAE J706) 11 mm (EN 14492-1) |
| Rope Attachment | Quad-drilled (Left-hand or Right-hand winding drum) Provides flexibility to mount winch in the best orientation |
| Standards Compliance | SAE J706 / EN 14492-1. CE Directives--Machinery 2006/42/EC; Noise Emission 2000/14/EC; Electromagnetic Compatibility 2014/30/EC |
| Winch Model | SI 8000, SI 10000, SI 15000, SI 12000 |
| Winch Series | SI Hydraulic Series |
6 products in this series
