4 products in this series

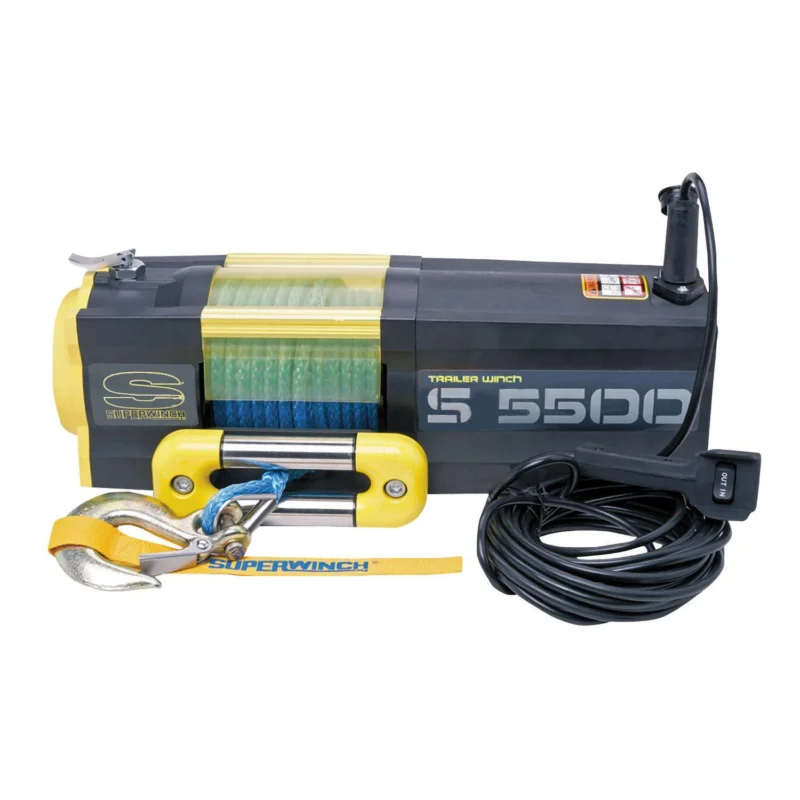

The S5500 Winch continues Superwinch's dominance as the leader in trailer-specific winching. The S5500 trailer winch easily pulls 5,500 lbs powered by its 3.6 hp permanent magnet motor, and its all steel 3-stage planetary gear box. The S5500 includes a safety tinted protective cover which protects the cable, drum and operators fingers. The machined aluminum free-spool lever can also be operated easily by foot.
S5500 Winch; 5500 lbs.; 3.6hp; 12V; 9/32 in. x 60 ft. Steel Rope; Yellow;
| Brand | Superwinch |
|---|---|
| Type | Winch |
| Weight | 40 - 56 lbs |
| Brake System | Mechanical, Automatic Load Holding, Outside Drum |
| Can Ship By Ground Delivery | Yes |
| Clutch | Kick-n-flip |
| Color | Yellow |
| Dimensions | 19.1in L x 6.6in D x 8.2in H (485mm L x 167mm D x 208mm H) |
| Drum Diameter (in.) | 1.25 |
| Drum Length (in.) | 2.83 |
| EN Compliant | No |
| Fairlead | Strong roller-coaster fairlead/hawse hybrid |
| Finish | Powder Coated |
| Gear Ratio | 249:1, 159:1, 153:1 |
| Gear System | 3-stage planetary |
| Line Speed | 80 Amps Motor Draw/19 FPM (5.8 MPM) |
| Material | Steel |
| Motor | 3.6 HP, pemanent magnet motor, 12V DC |
| Mounting Bolt Pattern | 4 bolt |
| Net. Weight | 51 lbs (23.1kgs), 42 lbs (19kgs) |
| Rated Single Line Pull (Lbs) | 7500, 5500 |
| Remote Control | 12 ft Rubber Sealed Hand-held |
| Remote Type | Wire |
| Rope Length | 5/16 in x 55 ft, 1/4 in x 60 ft (6.35mm x 18.3m), 9/32 in x 60 ft (7.14mm x 18.3m) |
| Rope Material | Steel Wire, Synthetic |
| Solenoid | VS4 (sealed submersible vented) |
| Voltage | 12V DC |
| Warranty | 2 Year Limited Manufacturer |
| Winch Hook | Heavy-Duty, Clevis Pinned Latched |
| Winch Model | S7500, S5500SR, S7500SR, S5500 |
| Winch Series | S Series |
