Superwinch H8P hydraulic winches provide users with a heavy-duty solution for the toughest, most demanding commercial/industrial applications All HP Series winches conform to EN 14492- 1 and SAE J706 standards, and also meet CE requirements. Powered by a high-torque motor, and a highly efficient 2 stage planetary gearbox, the H8P winch delivers optimum reliability and performance "day in and day out". The H8P winch is rated at 7,848 pounds (34.9 kN) and features a load control valve to enable the operator precision control of the load. Manual free-spooling and full load holding brakes provide users with reliable, predictable performance on demand. Available in choice of short or long drum configurations, the H8P allows for numerous mounting configuration options depending upon the need (Side, foot, or angle mounted, flat-bed or lowmount). Proven performance, and reliability are hallmarks of Superwinch's heritage spanning half a century and are backed with a limited lifetime warranty valid worldwide.

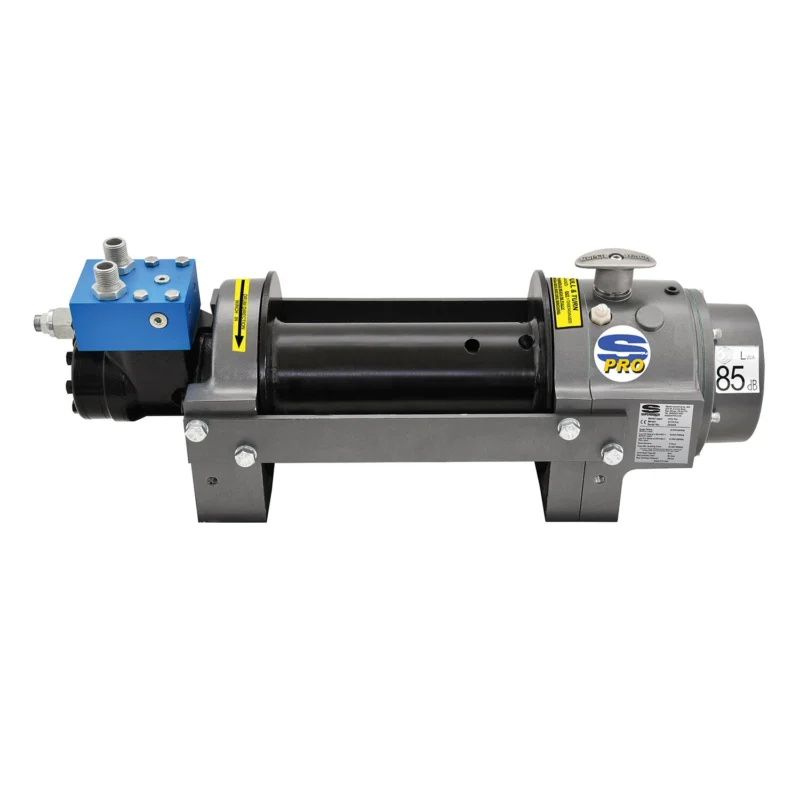

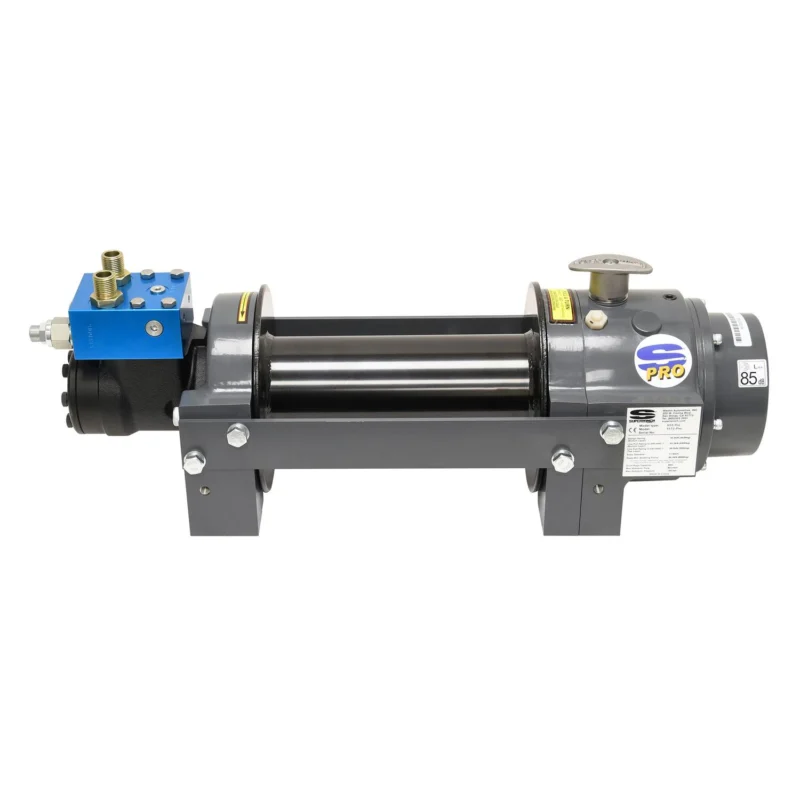

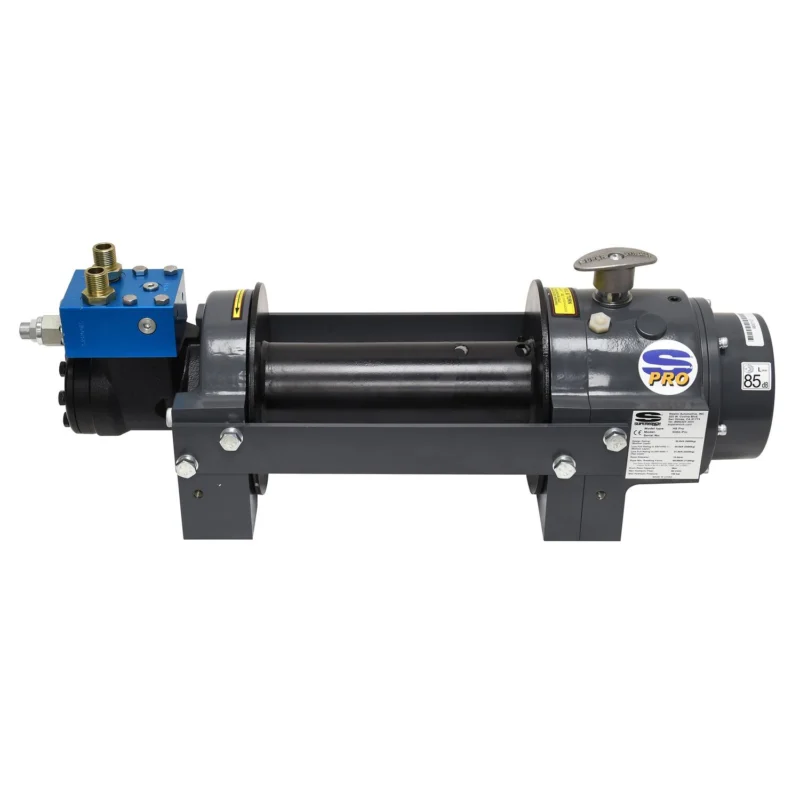

H8P Winch
| Brand | Superwinch |
|---|---|
| Type | Winch |
| Weight | 65 - 106 lbs |
| Brake System | Mechanical Disc Brake |
| Can Ship By Ground Delivery | Yes |
| Clutch | Manual Free-Spool |
| Color | Graphite, Brushed |
| Drum Length (in.) | 10" Long Drum, 7.5" Standard Drum |
| EN Compliant | Yes, No |
| Fairlead | 4-Way Roller |
| Finish | Powder Coated, Brushed |
| Gear Ratio | 16:1 |
| Gear System | 2-stage planetary |
| Material | Steel |
| Maximum Oil Flow | 15.8 gpm (60 l/min) |
| Maximum Oil Pressure | 2,176 psi (150 bar) |
| Mounting Bolt Pattern | Side, foot, angle, flatbed, or low mount |
| Rated Single Line Pull (Lbs) | 8000, 10000 |
| Warranty | Limited Lifetime Manufacturer |
| Winch Model | H10P, H8P, H9W |
| Winch Series | H Series |
