Select your vehicle to find the exact part number for your truck.

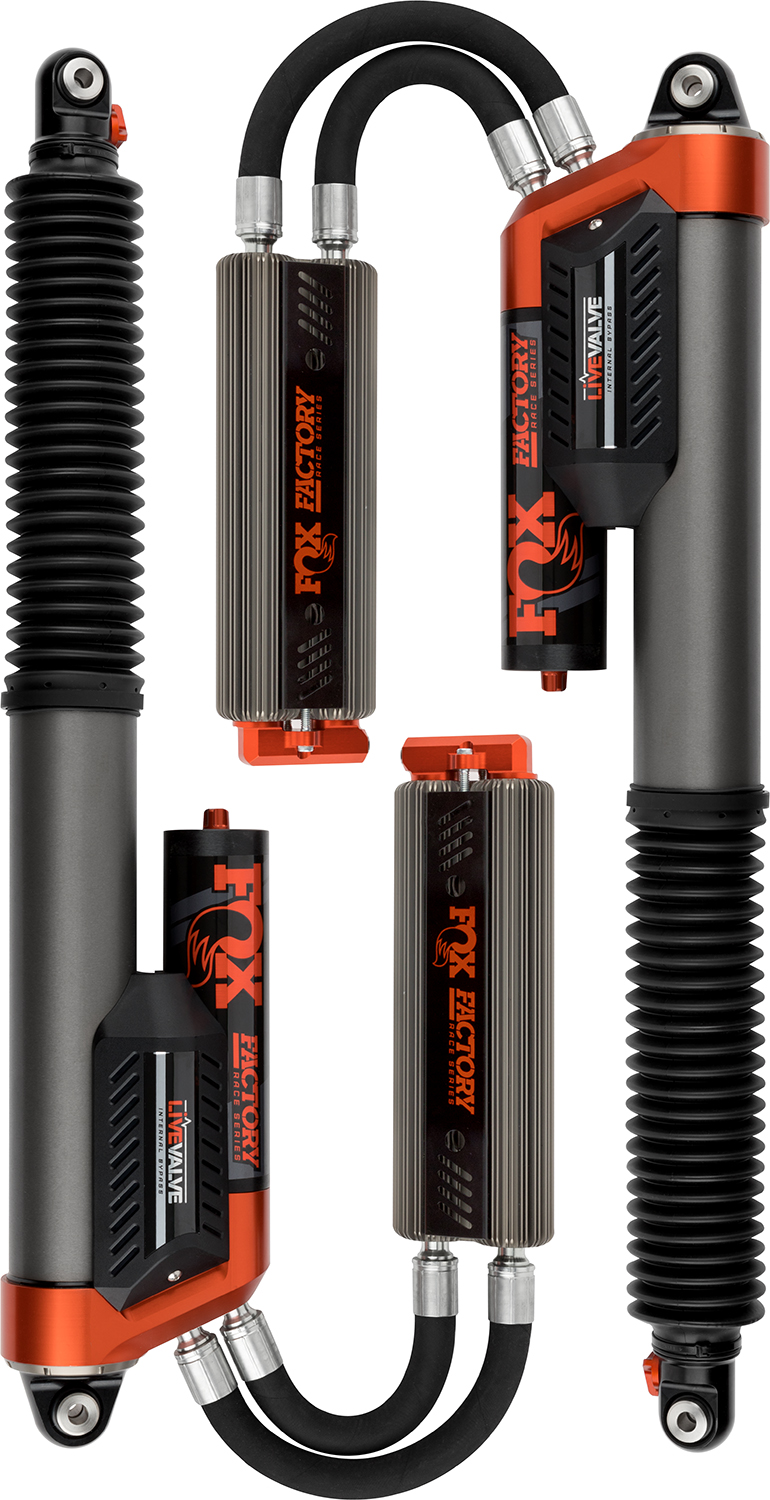

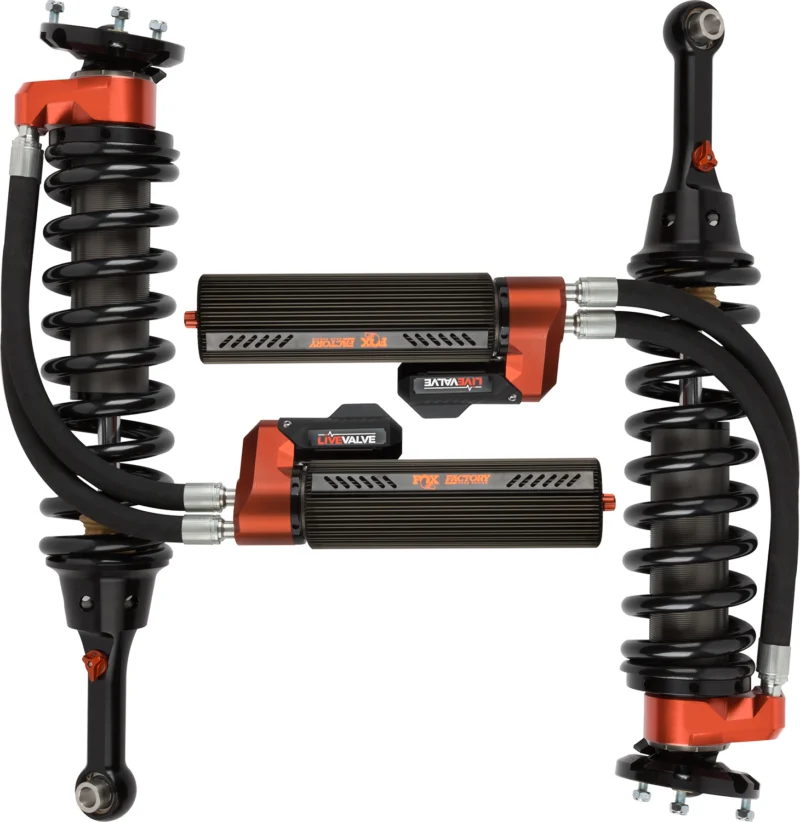

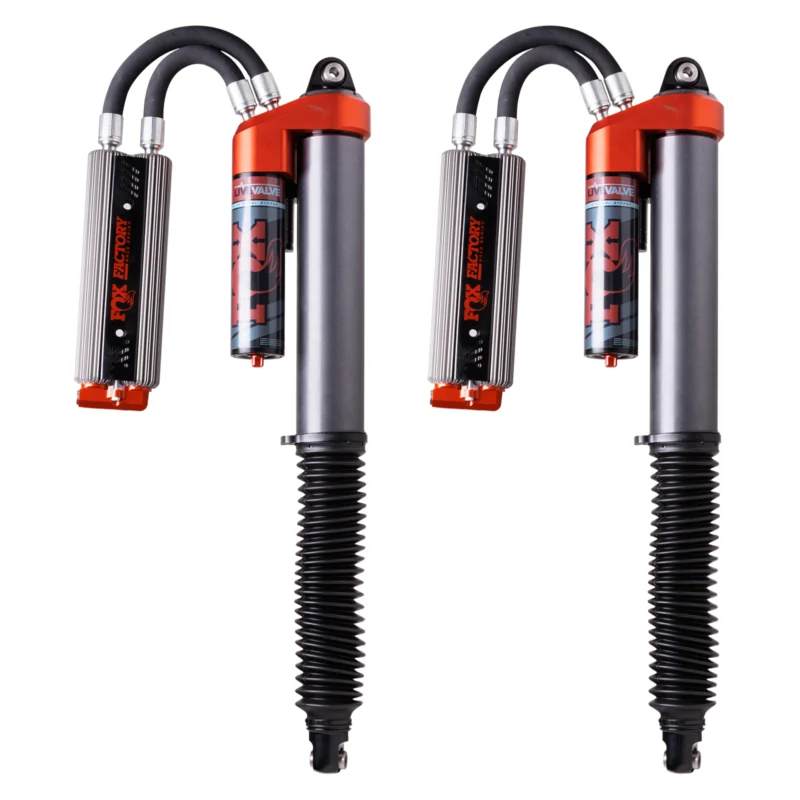

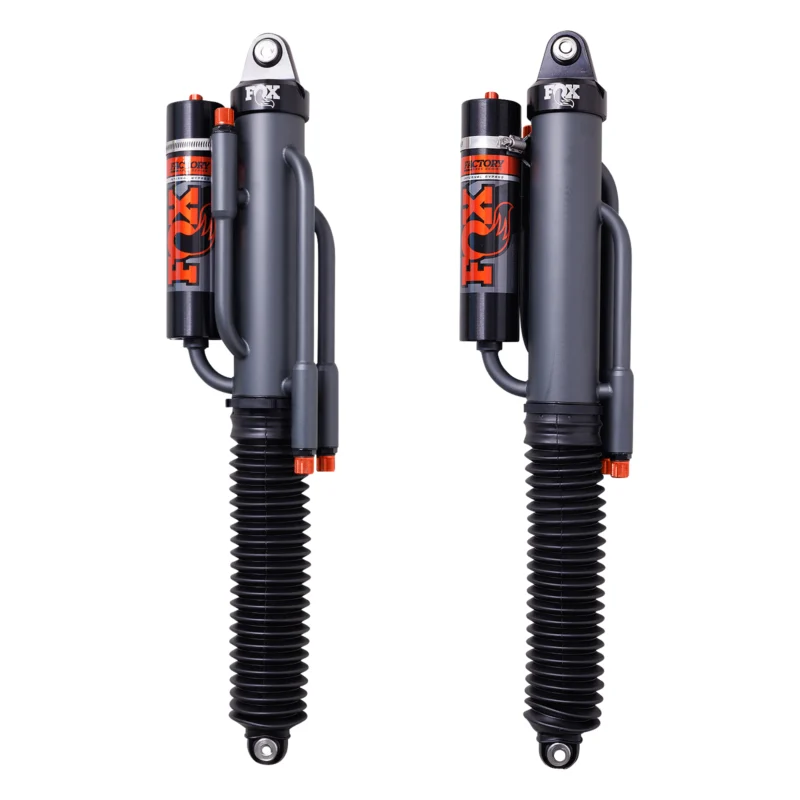

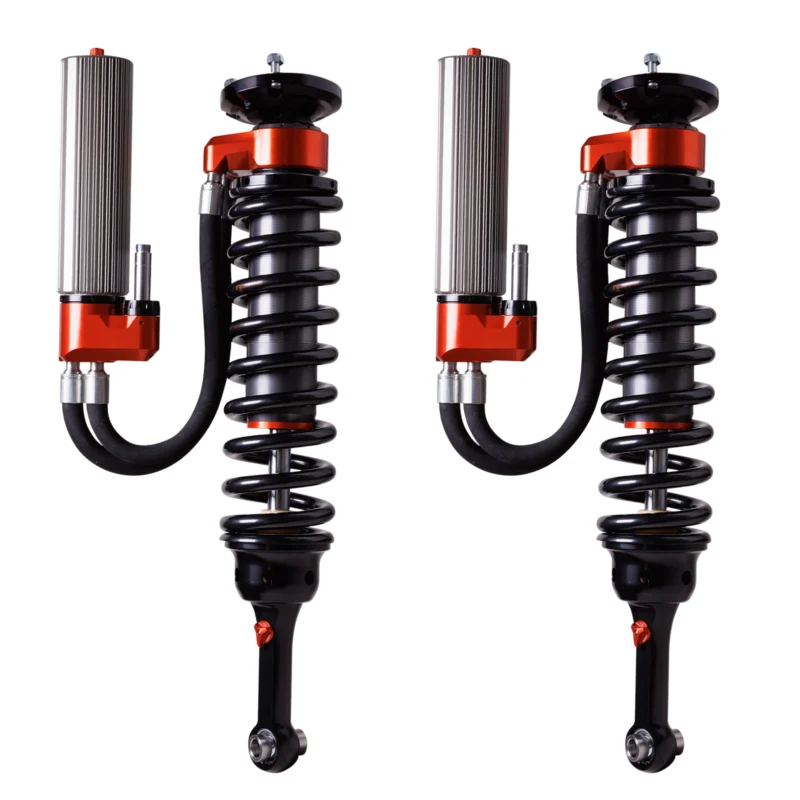

Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Application specific valving to maximize performance.
| Brand | FOX Offroad Shocks |
|---|---|
| Type | External Bypass Shock |
| Weight | 18 - 99 lbs |
| Adjuster Type | External Bypass Clicker - Gen 2, DSC - Dual Speed Compression, Live Valve, QAB - Quick Adjust Bypass, Live Valve/Quick Switch Technology (QS3) - Compression And Rebound, ... |
| Body Diameter (in) | 3, 3.0, 2.5 |
| Body Finish | FOX Grey Cerakote |
| Body Material | Steel, Aluminum |
| Bottom Mount | Eyelet, EB2, Bar Pin, ES6 |
| Bottom Mount (p/n) | 014-11-003-A, 213-28-000-B, 014-11-026, 213-63-011, 213-63-012 |
| Bypass Tube Size | 3/4 |
| Bypass Tubes | 4, 3, 5 |
| Compressed Length (in) | 20.60, 27.60, 18.60, 25.60, 16.6, ... |
| Extended Length (in) | 28.51, 32.51, 45.51, 41.51, 24.46, ... |
| Eyelet Length (in) | 2.00, 2, 2.50 |
| Fox Catalog | OFFROAD, TRUCK |
| Hose | -10 x 28.00, -10 x 38.00 |
| Label Name | 3.0 FRS, EXBP (1" Shaft), 4T (Gold Valve), P/B, 18", LH, 3.0 FRS, EXBP, 4T, R/R, 8", LH, 3.0 FRS, EXBP, 3T, P/B, 16", LH, 3.0 FRS, EXBP, 5T, R/R, 18", LH, 3.0 FRS, EXBP, 3T, R/R, 12", LH, ... |
| Mounting | 1/2 x 1-1/2, 5/8 x 1-1/2 |
| Reservoir Dimensions | 2.55 x 14.00, 2.55 x 10.00, 2.55 x 8.00, 2.55 x 16.00, 2.55 x 12.00 |
| Reservoir Type | Piggyback, Remote, Recirculating Remote |
| Seal Kit | 803-04-025 |
| Series | Factory Race |
| Shaft Size (in) | 7/8, 1 |
| Top Mount | Eyelet, OEM, EB2, Stem, ES6, ... |
| Top Mount (p/n) | 014-11-026, 213-28-000-B, TOP |
| Travel (in) | 17.91, 15.91, 13.91, 9.91, 11.91, ... |
| Travel (rounded) | 8, 18, 16 |
| Valving | 807-24-600, 807-24-610 |
Use the Find Your Fit tool above to check if this product fits your specific vehicle.
