Select your vehicle to find the exact part number for your truck.

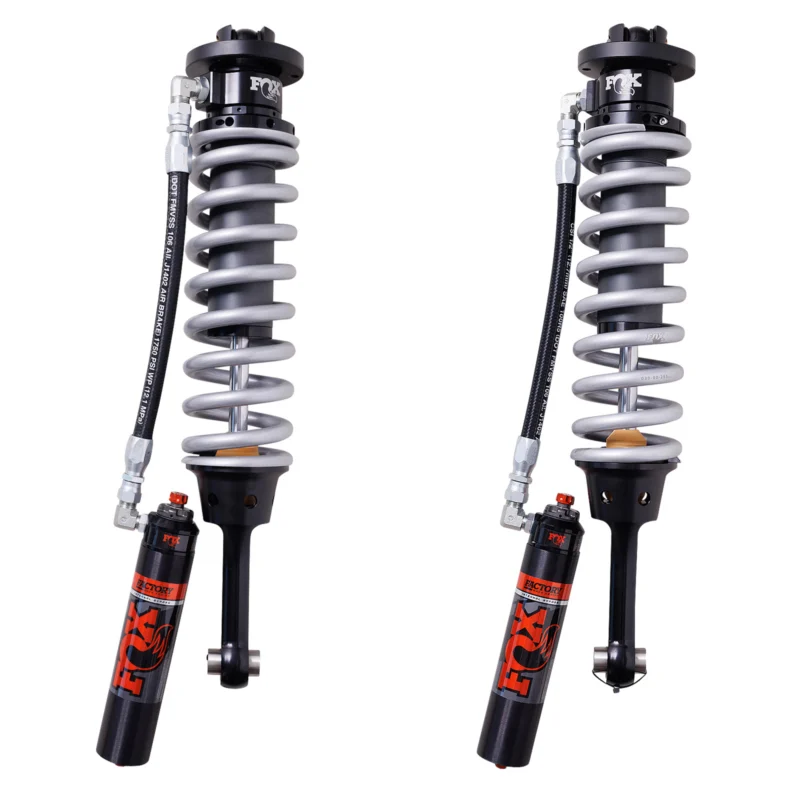

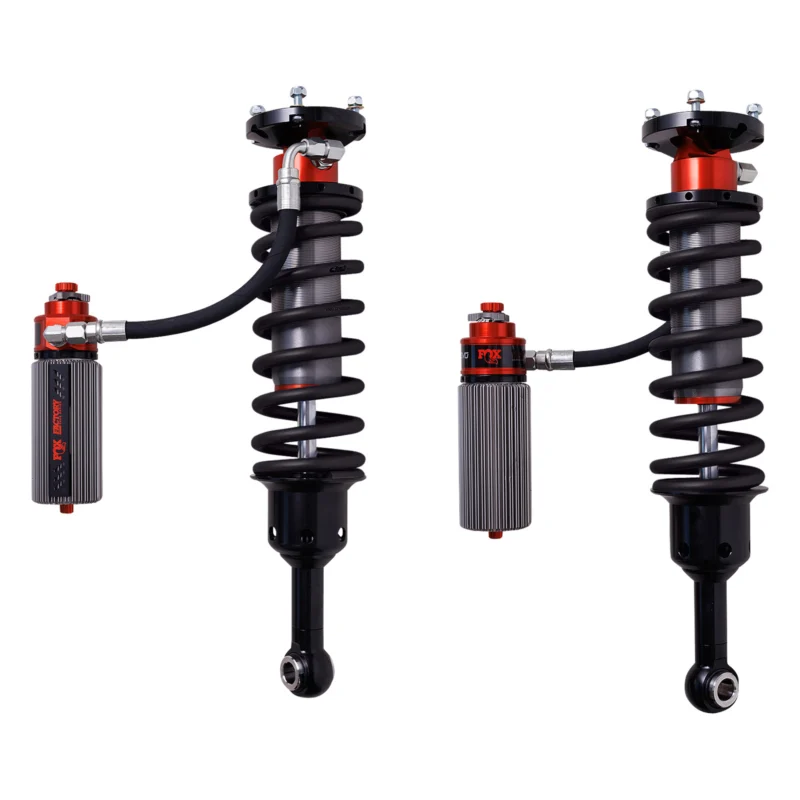

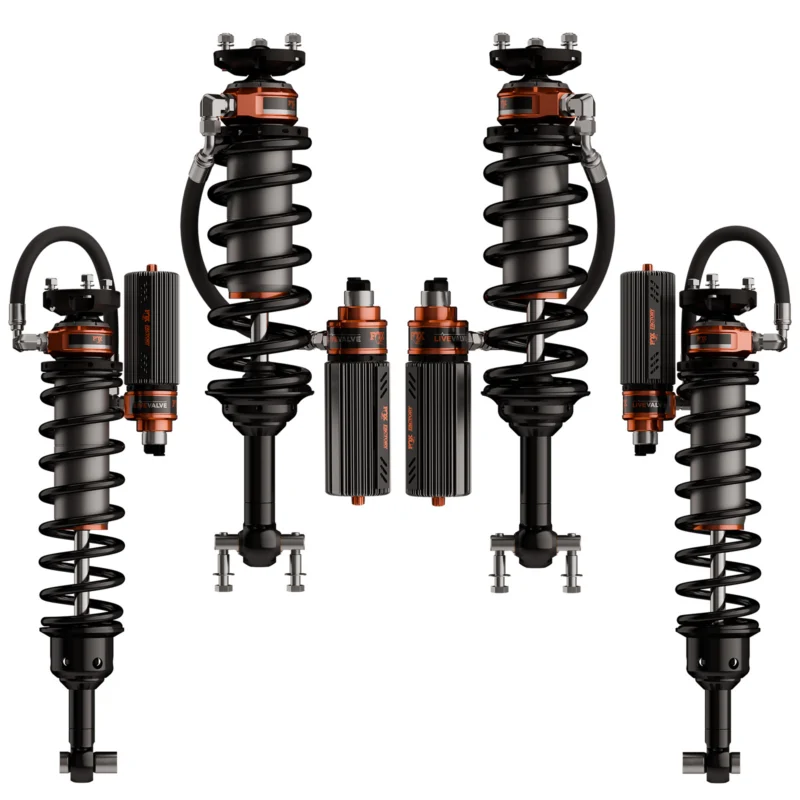

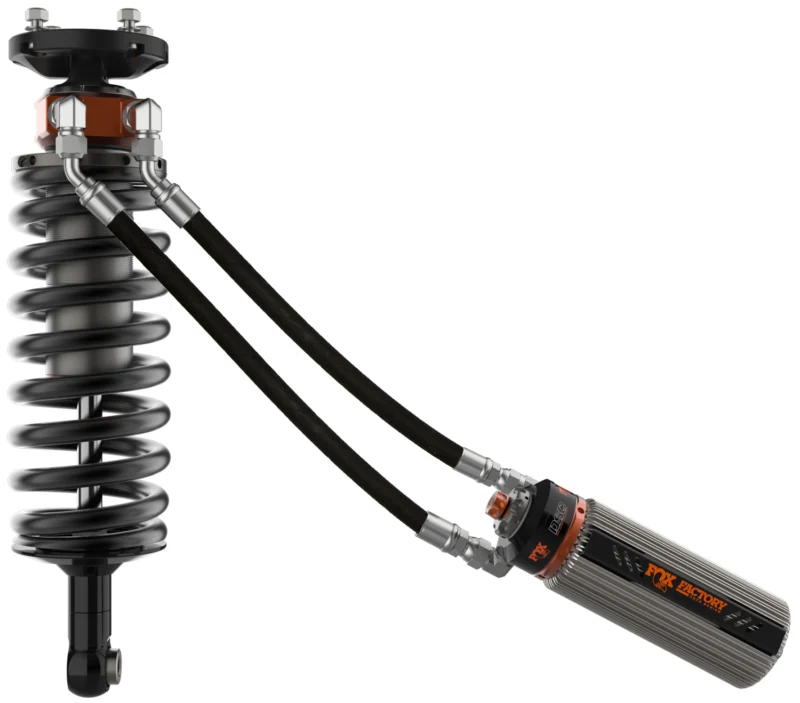

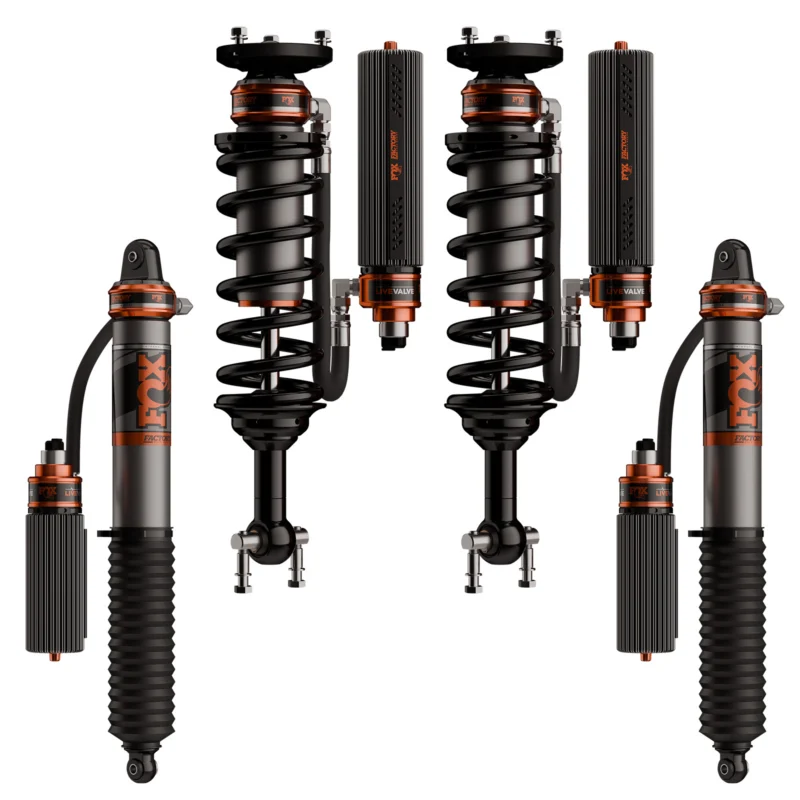

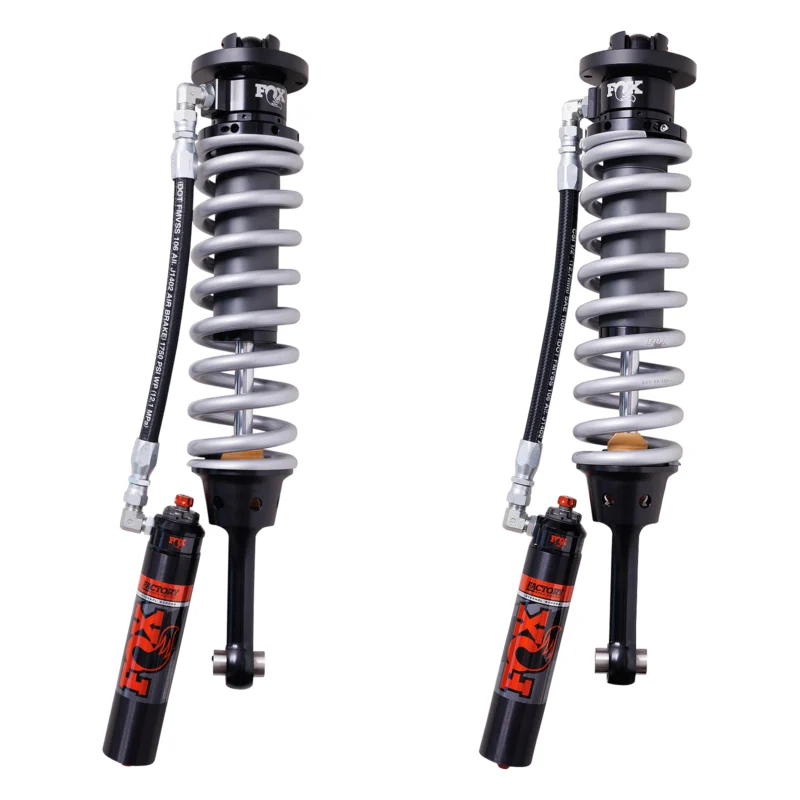

Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Application specific valving to maximize performance.
| Brand | FOX Offroad Shocks |
|---|---|
| Type | Coil-Over Shock |
| Weight | 18 - 210 lbs |
| Adjuster Type | DSC EVO, DSC - Dual Speed Compression |
| Body Diameter (in) | 3.2, 3, 3.0 |
| Body Finish | FOX Grey Cerakote |
| Body Material | Aluminum, Steel |
| Bottom Mount | Eyelet, Eyelet(F/R), Bar Pin(F)/Eyelet(R), Barpin(F)/Eyelet(R) |
| Compressed Length (in) | 18.33(F)/17.05(R), 17.15(F)/17.57(R), 18.64, 24.50, 17.95(F)/18.45(R), ... |
| Extended Length (in) | 24.91(F)/26.44(R), 23.45(F)/28.63(R), 24.99, 33.50, 27.97, ... |
| Eyelet Length (in) | 2.50 |
| Fox Catalog | TRUCK, OFFROAD |
| Hose | -12 x 18.00 |
| Label Name | 3.0 FRS, CO, R/R, 12", Kit: 22-On Toyota Tundra, w/UCA, Front Coilover, Internal Bypass, 3.0 Series, Recirc R/R, DSC, 2-2.25” Lift, Kit: 21-23 Ford F150 Supercrew, 3.2 Truck FRS, LIVE Valve, Connected Suspension, 2-2.5" Lift, Kit: 24-ON Toyota Tacoma, Internal Bypass, 3.2 Truck FRS, LIVE Valve, Connected Suspension, 3.0 FRS, CO, R/R, 16", ... |
| Mounting | 5/8 x 1-1/2 |
| Reservoir Dimensions | 3.00 x 12.00, 3.00 x 16.00, 3.00 x 14.00 |
| Reservoir Type | Remote, Recirculating Remote |
| Series | Factory Race |
| Shaft Size (in) | 1 |
| Top Mount | OEM, OEM(F)/Stem(R), Eyelet, OEM(F)/Eyelet(R), TM |
| Top Mount (p/n) | TOP |
| Travel (in) | 6.58(F)/9.39(R), 5.45(F)/11.06(R), 16.00, 7.53, 10.00, ... |
| Valving | 807-24-601 |
Use the Find Your Fit tool above to check if this product fits your specific vehicle.
