Select your vehicle to find the exact part number for your truck.

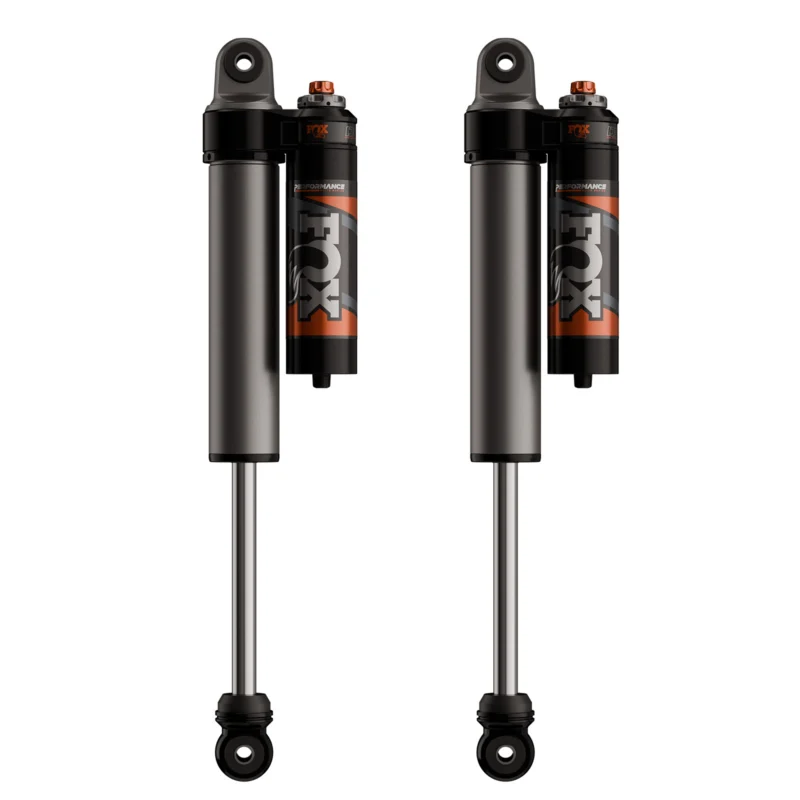

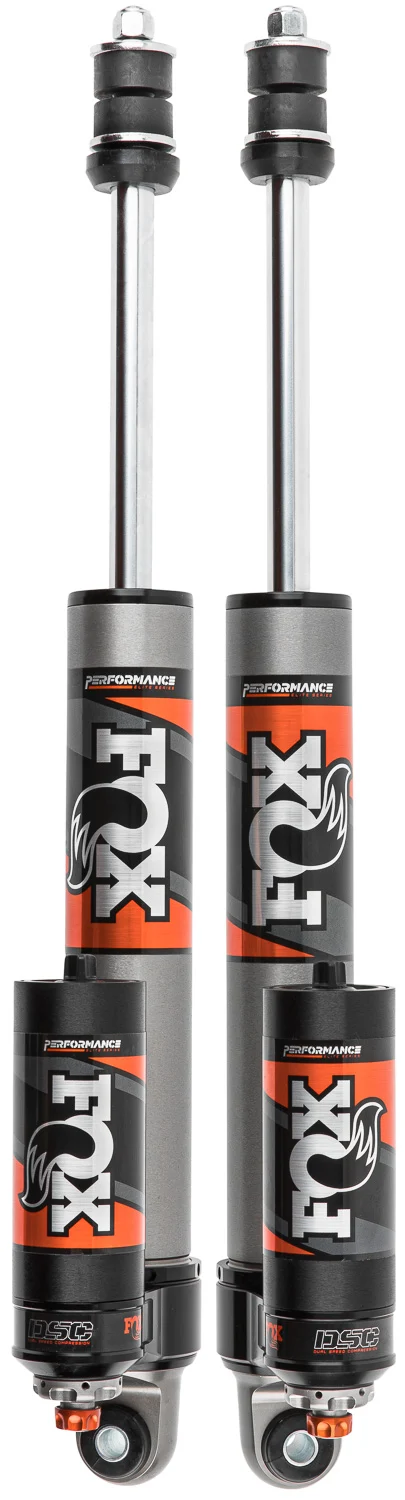

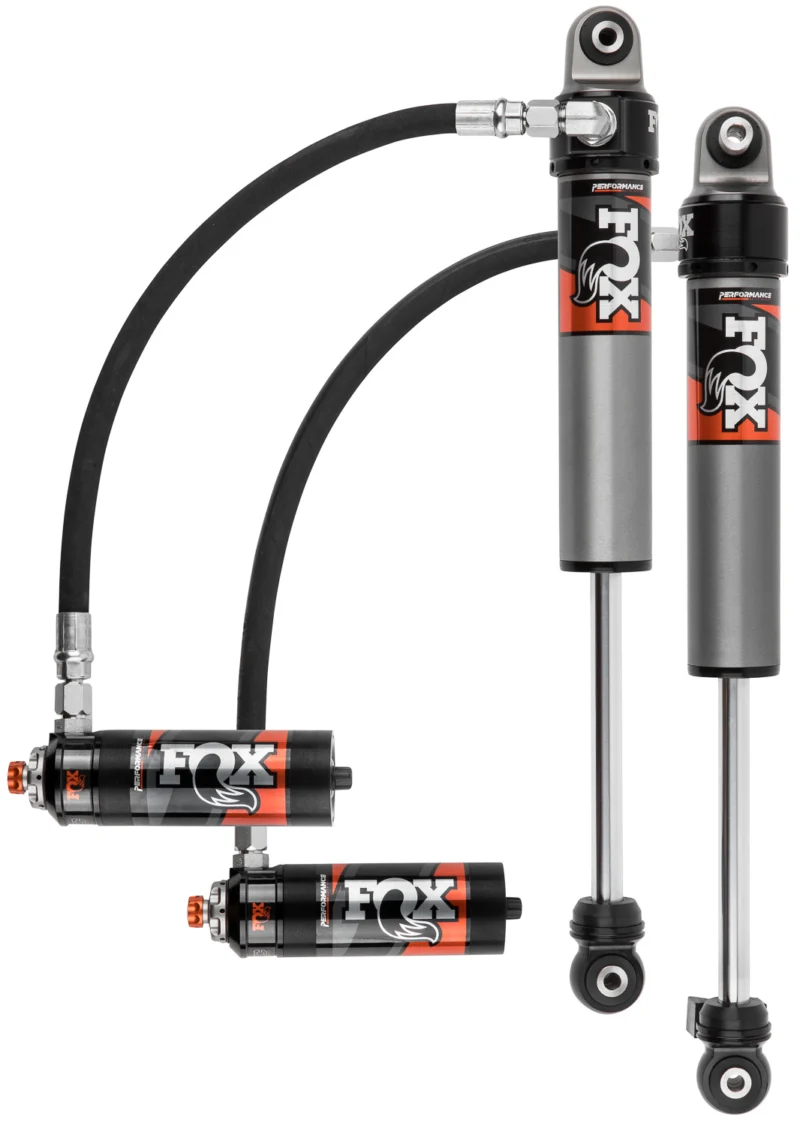

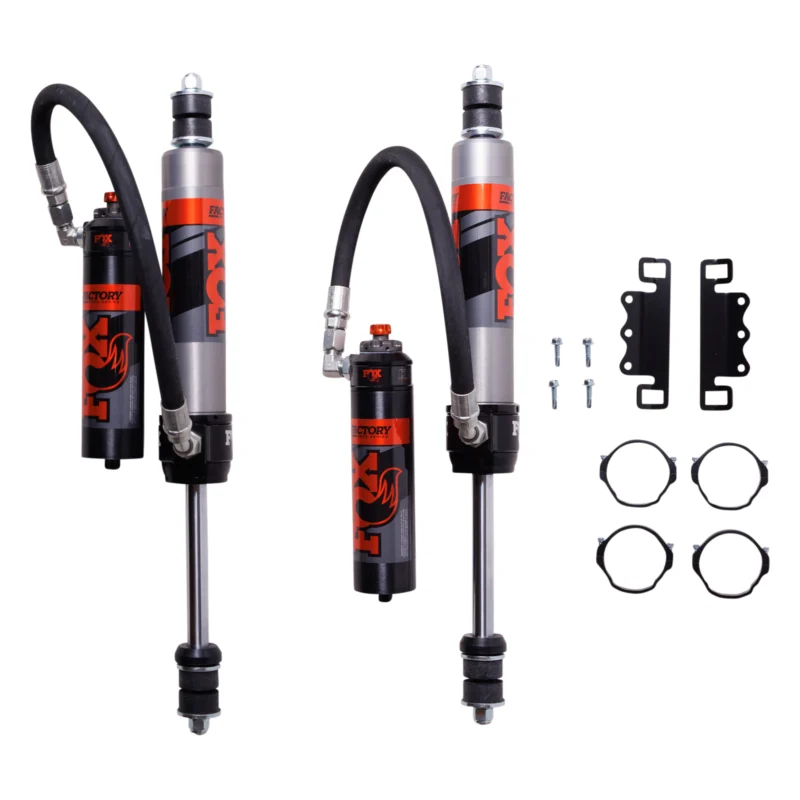

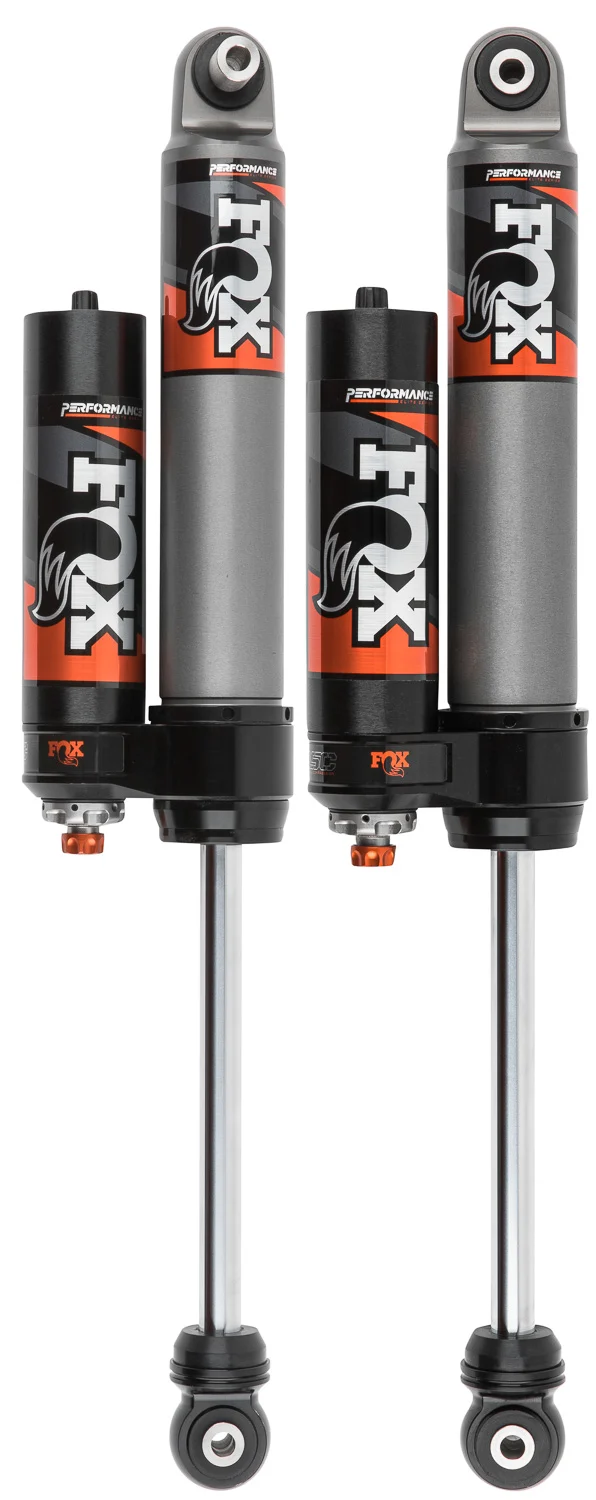

Developed from our off-road race shocks, FOX Performance Elite Series combines race-proven technology with new, cutting-edge features to provide all the adjustability and capacity needed to take on serious off-roading in your Jeep.
Application specific valving to maximize performance.
| Brand | FOX Offroad Shocks |
|---|---|
| Type | IFP Shock |
| Weight | 5 - 56.5 lbs |
| Adjuster Type | DSC - Dual Speed Compression, DSC EVO, DSC - Dual Speed Compression & Rebound |
| Body Diameter (in) | 2.5 |
| Body Material | Aluminum, Steel |
| Bottom Mount | Eyelet, EB2, ES1, ES6, Clevis, ... |
| Bottom Mount (p/n) | 014-11-026, 213-28-000-B, 213-28-001-B, 213-27-000-B, 014-11-031, ... |
| Compressed Length (in) | 16.30, 17.40, 16.34, 15.84, 19.54, ... |
| Extended Length (in) | 30.72, 25.81, 26.31, 23.97, 35.88, ... |
| Fox Catalog | TRUCK |
| Label Name | Kit: 05-ON Ford SD Rear, 2.5 Series, P/B, 11.4", 0-1.5" Lift, DSC, Kit: 20-ON GM 2500/3500, Rear, 2.5 Truck PES, P/B, 10.17", 0-1" Lift, DSC, 19-ON Jeep Gladiator JT, Front, 2.5 Truck PS, IFP, 2-3” Lift, HTO, Kit: 07-18 Jeep JK Rear, 2.5 Truck PES, P/B, 2.5-4" Lift, DSC, Kit: 22-ON Toyota Tundra, Rear, 2.5 Truck PES, R/R, DSC EVO, 0-1.5” Lift, ... |
| Reservoir Type | Internal Floating Piston, Remote, Piggyback, Internal Floating Piston (IFP) |
| Series | Performance, Performance Elite, Factory Race |
| Top Mount | Eyelet, Stem, EB2, OEM, Bar Pin, ... |
| Top Mount (p/n) | 014-11-026, 213-28-000-B, 803-00-221-A, 213-28-001-B, 213-27-000-B, ... |
| Travel (in) | 9.48, 9.98, 11.19, 10.98, 9.29, ... |
Use the Find Your Fit tool above to check if this product fits your specific vehicle.
