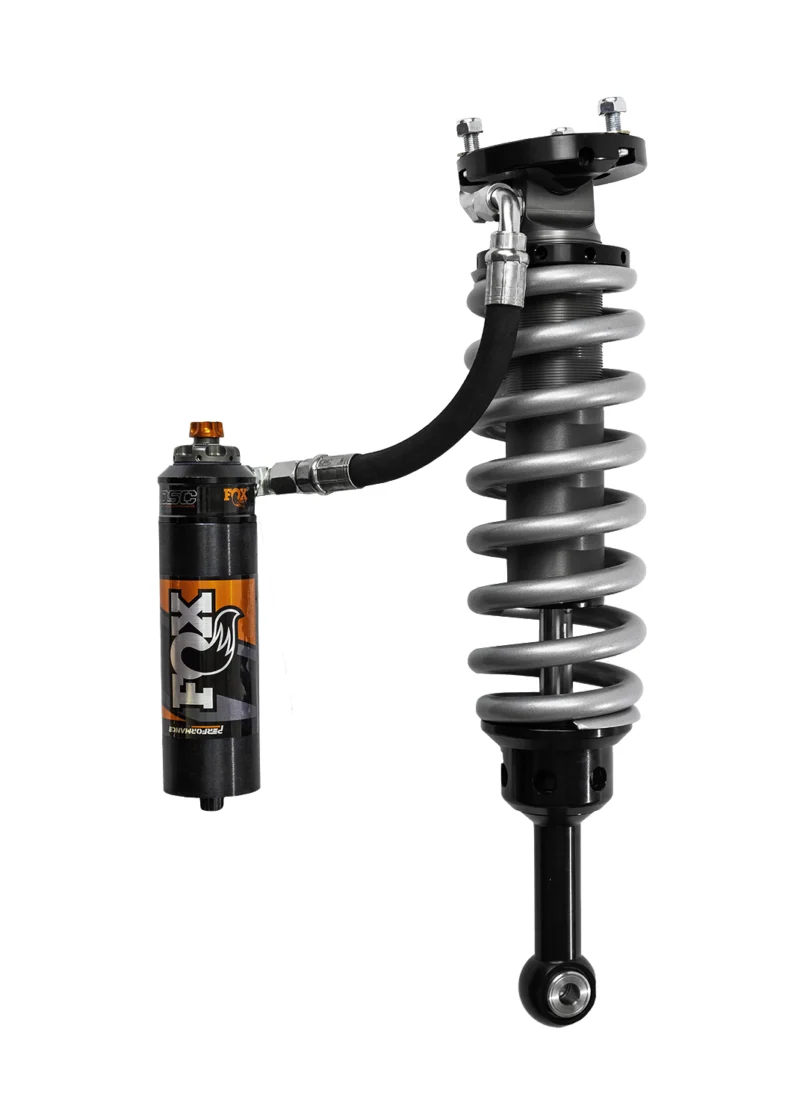

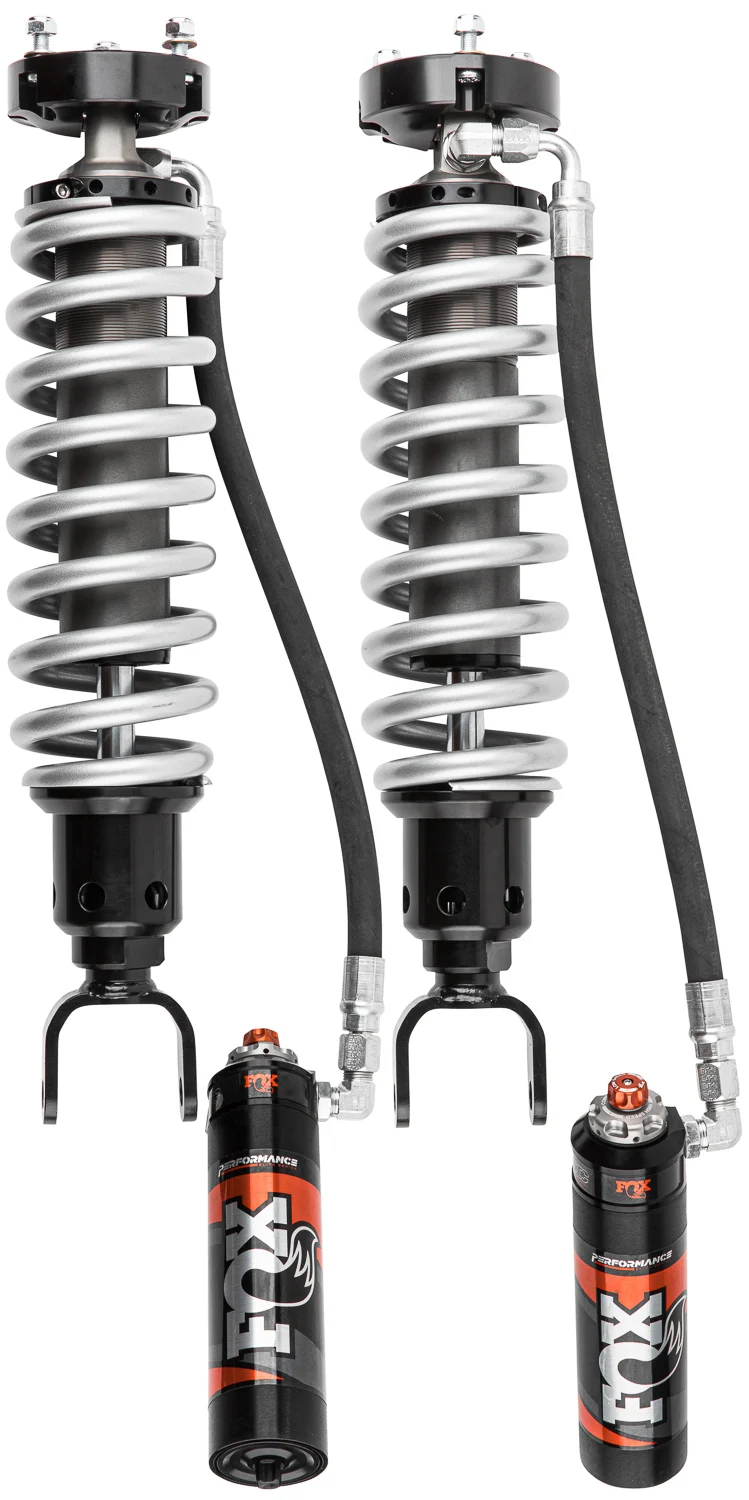

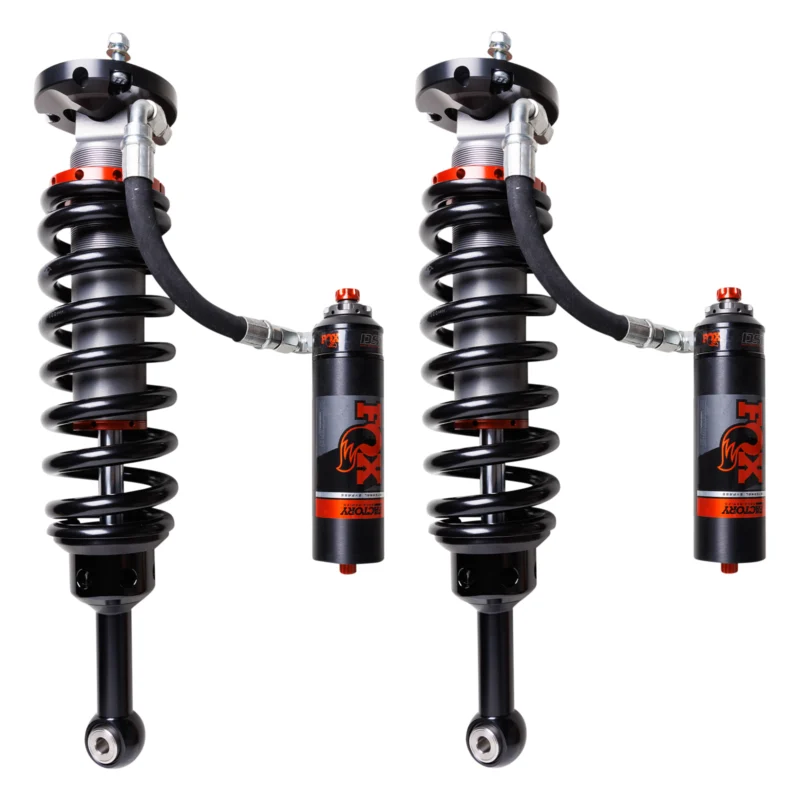

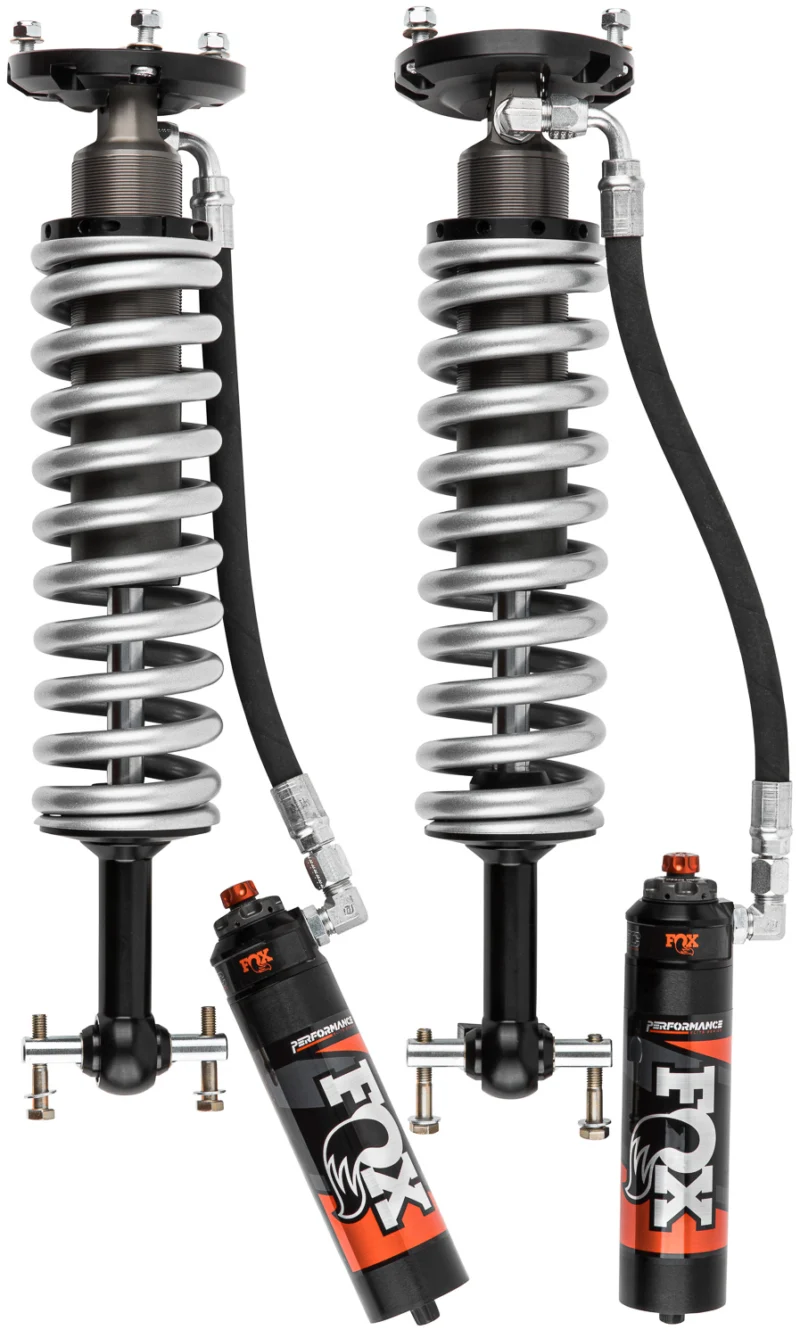

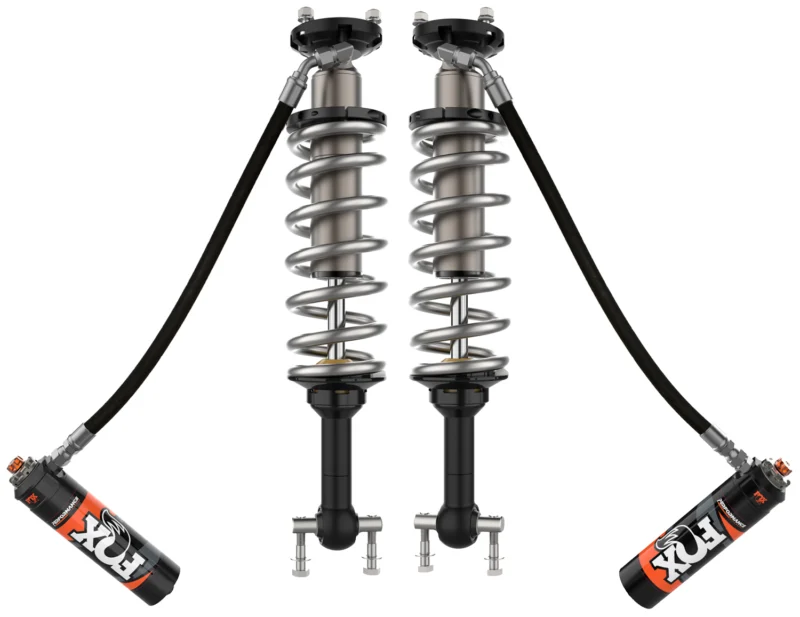

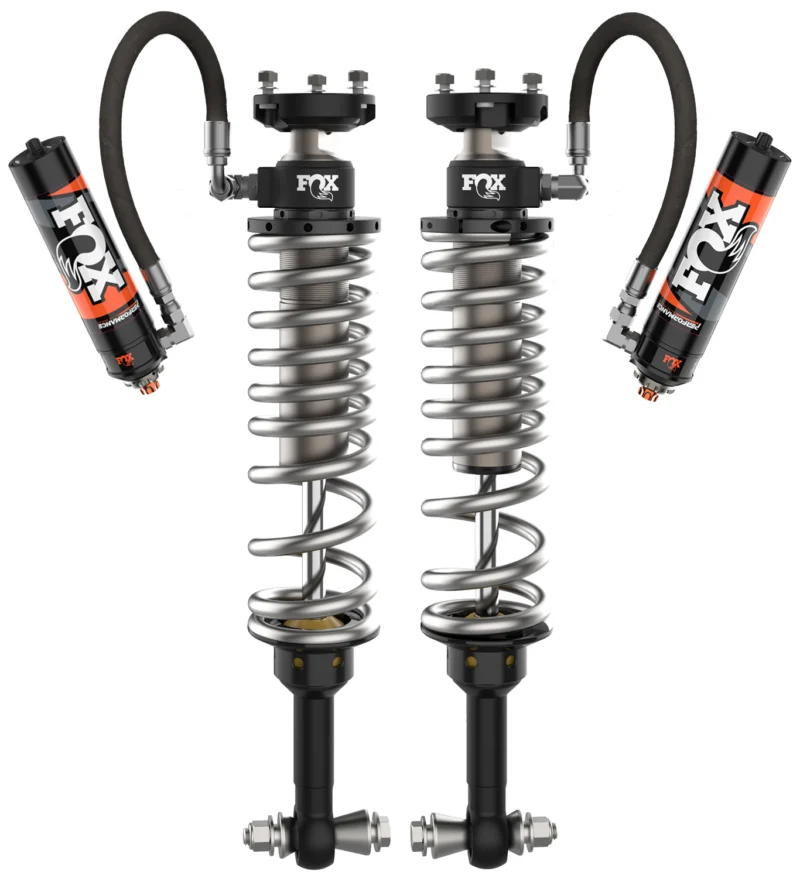

Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Application specific valving to maximize performance.
| Brand | FOX Offroad Shocks |
|---|---|
| Type | Coil-Over Shock |
| Weight | 10 - 90 lbs |
| Adjuster Type | DSC - Dual Speed Compression, DSC EVO |
| Body Diameter (in) | 2.5 |
| Body Finish | FOX Grey Cerakote, Clear Zinc Plated |
| Body Material | Steel, Aluminum |
| Bottom Mount | Eyelet, Bar Pin, Clevis, BP7 |
| Bottom Mount (p/n) | 213-63-008, 808-08-005, 213-63-006 |
| Compressed Length (in) | 16.64, 23.50, 20.50, 25.50, 16.50, ... |
| Extended Length (in) | 24.45, 28.45, 41.45, 32.45, 37.45, ... |
| Eyelet Length (in) | 1.95, 1.90 |
| Fox Catalog | TRUCK, OFFROAD |
| Hose | -8 x 18.00, -10 x 18.00 |
| Label Name | Kit: 14-ON Dodge 1500 Diesel 4wd Front Coilover, 2.5 Series, R/R, 5.7", 0-2" Lift, DSC, 2.5 FRS, CO, P/B, DSC, 10", Kit: 19-ON GM 1500 Front Coilover, 2.5 Series, AL, R/R, Non-TB/Non-AT4 0-2" Lift, TB/AT4 No Lift, 2.5 FRS, CO, R/R, 16", Kit: 22-ON Toyota LC300 & Lexus LX600, Front Coilover, 2.5 Truck PES, R/R, DSC, 0-2" (0-50mm) Lift, ... |
| Mounting | 1/2 x 1-1/2 |
| Reservoir Dimensions | 2.55 x 10.00, 2.55 x 14.00, 2.55 x 8.00 |
| Reservoir Type | Remote, Piggyback, Emulsion, Internal Floating Piston (IFP) |
| Seal Kit | 803-04-034 |
| Series | Factory Race, Performance Elite, Performance |
| Shaft Size (in) | 7/8 |
| Top Mount | Eyelet, OEM, TM |
| Top Mount (p/n) | TOP |
| Travel (in) | 13.95, 9.95, 7.95, 15.95, 11.95, ... |
| Valving | 807-24-301, 807-24-302, 807-24-300 |
