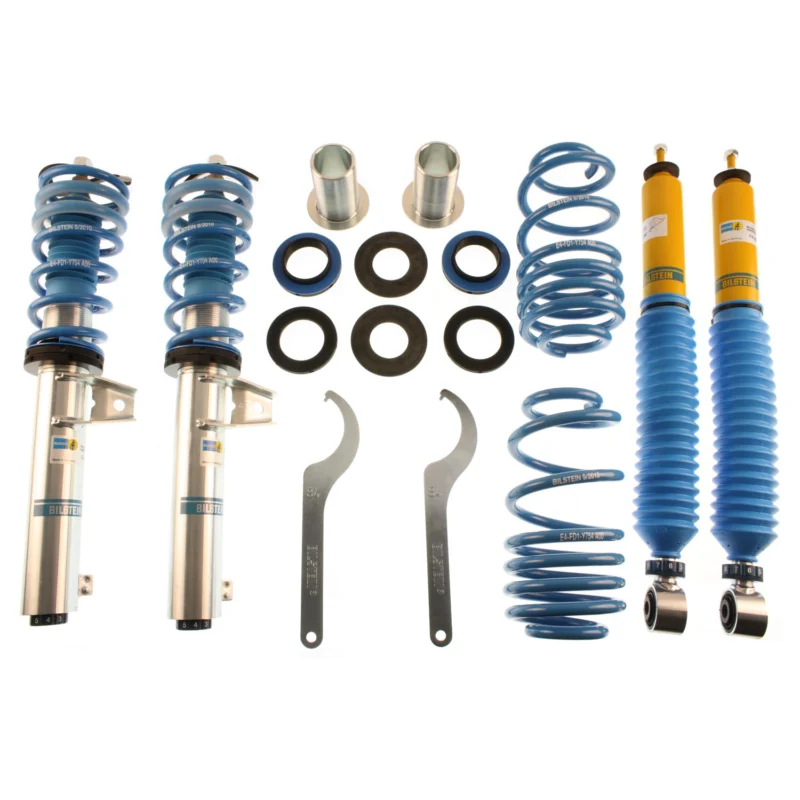

Bilstein B16 (PSS10) suspension kits feature ride height adjustability with 10-stage manually adjustable dampers in an OE quality, direct fit package. The 10-stage damping system adjusts both rebound and compression with each click to provide the best handling performance in any condition. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B16 (PSS10) suspension kits are made in Germany and feature technology tested on the famed Nürburgring.
Performance Suspension System
| Brand | Bilstein |
|---|---|
| Part Number | 48-135245 |
| Front Main Spring Rate (lbs/in) | 428 |
| Front Main Spring Type | Progressive |
| Internal Design | Monotube |
| PartType | Suspension Kit |
| Rear Main Spring Rate (lbs/in) | 285 |
| Rear Main Spring Type | Progressive |
| Segment | Tuning |
| Series | B16 (PSS10) |
| Finish | Dampers: Zinc Plated Front Yellow Rear/Springs: Blue |
| Weight | 53.15 lbs |
| Year(s) | Make | Model | Submodel | Cab / Body | Notes |
|---|---|---|---|---|---|
| 2016-2018, 2020-2021 | Volkswagen | Passat | R-Line | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension |
| 2013-2018, 2020-2021 | Volkswagen | Passat | S | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension |
| 2012-2018, 2020-2021 | Volkswagen | Passat | SE | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension |
| 2012-2013, 2020 | Volkswagen | Passat | SEL | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension |
| 2019 | Volkswagen | Passat | SE R-Line | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension |
| 2014-2015, 2019 | Volkswagen | Passat | Wolfsburg Edition | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension |
| 2017-2018 | Volkswagen | Jetta | GLI | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; With 55mm Outside Strut Diameter |
| 2016-2018 | Volkswagen | Jetta | S | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; With 55mm Outside Strut Diameter |
| 2016-2018 | Volkswagen | Jetta | SE | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; With 55mm Outside Strut Diameter |
| 2016-2018 | Volkswagen | Jetta | SEL | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; With 55mm Outside Strut Diameter |
| 2016-2018 | Volkswagen | Jetta | Sport | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; With 55mm Outside Strut Diameter |
| 2018 | Volkswagen | Jetta | Wolfsburg Edition | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; With 55mm Outside Strut Diameter |
| 2018 | Volkswagen | Passat | GT | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension |
| 2012-2018 | Volkswagen | Passat | SEL Premium | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension |
| 2016-2017 | Volkswagen | CC | R-Line Executive | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2009-2017 | Volkswagen | CC | Sport | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2014-2016 | Volkswagen | CC | R-Line | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2016 | Volkswagen | CC | Trend | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2016 | Volkswagen | CC | V6 Executive 4Motion | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2016 | Volkswagen | Jetta | GLI SE | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; With 55mm Outside Strut Diameter |
| 2016 | Volkswagen | Jetta | GLI SEL | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; With 55mm Outside Strut Diameter |
| 2016 | Volkswagen | Jetta | SEL Premium | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; With 55mm Outside Strut Diameter |
| 2016 | Volkswagen | Passat | SEL | - | Without Electronic Suspension; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Front Lowered Height: 30-50mm, up to 1210kg Axle Load |
| 2014-2015 | Volkswagen | CC | Executive | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2015 | Volkswagen | CC | Executive 4 Motion | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2015 | Volkswagen | Jetta | GLI SE | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2015 | Volkswagen | Jetta | GLI SEL | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2008-2015 | Volkswagen | Jetta | S | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2008-2015 | Volkswagen | Jetta | SE | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2008-2015 | Volkswagen | Jetta | SEL | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2015 | Volkswagen | Jetta | Sport | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2015 | Volkswagen | Jetta | TDI S | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2015 | Volkswagen | Jetta | TDI SE | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2015 | Volkswagen | Jetta | TDI SEL | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2015 | Volkswagen | Passat | Limited Edition | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension |
| 2015 | Volkswagen | Passat | Sport | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension |
| 2012-2015 | Volkswagen | Passat | TDI SE | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension |
| 2014-2015 | Volkswagen | Passat | TDI SEL Premium | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension |
| 2014 | Volkswagen | CC | 4 Motion | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2006-2009, 2012-2014 | Volkswagen | Jetta | GLI | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2014 | Volkswagen | Jetta | TDI | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; With 55mm Outside Strut Diameter; Without Electronic Suspension |
| 2012-2014 | Volkswagen | Jetta | TDI Premium | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2013 | Audi | A3 | TDI | - | Front Lowered Height: 20-30mm, up to 1210kg Axle Load; Rear Lowered Height: 10-30mm, up to 1100kg Axle Load; With 55mm Outside Strut Diameter |
| 2006-2013 | Audi | A3 Quattro | Base | - | Front Lowered Height: 20-30mm, up to 1210kg Axle Load; Rear Lowered Height: 10-30mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2012-2013 | Volkswagen | CC | Lux | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2013 | Volkswagen | CC | Sport Plus | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2013 | Volkswagen | CC | VR6 4Motion Executive | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2005-2006, 2009-2013 | Volkswagen | Jetta | TDI | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2012-2013 | Volkswagen | Passat | TDI SEL | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension |
| 2007-2012 | Audi | A3 | Base | - | Front Lowered Height: 20-30mm, up to 1210kg Axle Load; Rear Lowered Height: 10-30mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2011-2012 | Audi | A3 | TDI | - | Front Lowered Height: 20-30mm, up to 1210kg Axle Load; Rear Lowered Height: 10-30mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2012 | Volkswagen | CC | Lux Limited | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2012 | Volkswagen | CC | Lux Plus | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2012 | Volkswagen | Passat | S | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Without Electronic Suspension; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2009-2011 | Volkswagen | CC | Luxury | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2009-2011 | Volkswagen | CC | VR6 4Motion | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2011 | Volkswagen | Jetta | Base | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2010 | Audi | A3 | TDI | - | Front Lowered Height: 20-30mm, up to 1210kg Axle Load; Rear Lowered Height: 10-30mm, up to 1100kg Axle Load; With 55mm Outside Strut Diameter; Without Electronic Suspension |
| 2009-2010 | Volkswagen | CC | VR6 | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2009-2010 | Volkswagen | CC | VR6 Sport | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load |
| 2007-2010 | Volkswagen | Jetta | Wolfsburg Edition | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2008-2010 | Volkswagen | Passat | Komfort | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2006-2009 | Volkswagen | GTI | Base | - | Front Lowered Height: 20-30mm, up to 1210kg Axle Load; Rear Lowered Height: 10-30mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2008-2009 | Volkswagen | Rabbit | S | - | Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2008 | Volkswagen | Passat | Lux | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2008 | Volkswagen | Passat | Turbo | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2008 | Volkswagen | Passat | VR6 | Sedan | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2008 | Volkswagen | R32 | Base | - | Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2005-2007 | Volkswagen | Jetta | 2.5 | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2006-2007 | Volkswagen | Jetta | 2.0T | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2006-2007 | Volkswagen | Passat | 2.0T | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2007 | Volkswagen | Passat | 3.6 | Sedan | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2006-2007 | Volkswagen | Passat | Value Edition | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2007 | Volkswagen | Passat | Wolfsburg Edition | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2006-2007 | Volkswagen | Rabbit | 2.5 | - | Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2006 | Audi | A3 | Base | - | Front Lowered Height: 20-30mm, up to 1210kg Axle Load; With 55mm Outside Strut Diameter; Without Electronic Suspension; Rear Lowered Height: 10-30mm, up to 1100kg Axle Load |
| 2006 | Volkswagen | Jetta | Value Edition | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1100kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
| 2006 | Volkswagen | Passat | 3.6 | - | Front Lowered Height: 30-50mm, up to 1210kg Axle Load; Rear Lowered Height: 30-50mm, up to 1250kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter |
