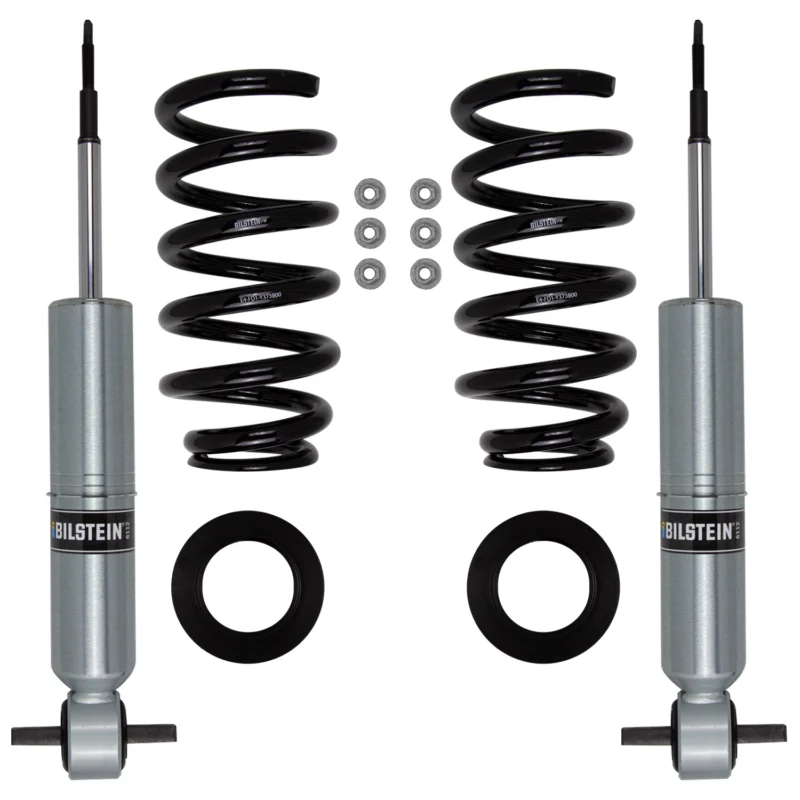

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Front Suspension Kit
| Brand | Bilstein |
|---|---|
| Part Number | 47-325753 |
| Adjustable Damping | Non-Adjustable |
| Aftermarket Upper Arms Required | Yes |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Collapsed Length (IN) | 14.96 |
| Collapsed Length (mm) | 380.0 |
| Extended Length (IN) | 19.65 |
| Extended Length (mm) | 499.1 |
| Finish | Dampers: Zinc Plated/Springs: Black |
| Front Main Spring Rate (lbs/in) | 750 |
| Internal Design | Monotube |
| PartType | Suspension Kit |
| Piston Diameter | 60mm |
| Segment | Light Truck |
| Series | B8 6112 |
| Shaft Diameter | 18mm |
| Spring Seat Included | Yes |
| Stroke/Travel Length (IN) | 4.69 |
| Stroke/Travel Length (mm) | 119.1 |
| Weight | 54.65 lbs |
| Boot Included | No |
| Reservoir | No |
| Year(s) | Make | Model | Submodel | Cab / Body | Notes |
|---|---|---|---|---|---|
| 2019 | Chevrolet | Silverado 1500 LD | Custom | - | Provides 1.85-2.75" Front Lift; Without Magnetic Ride Control Suspension; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended; For Silverado 1500 LD only – same as 2014-2018 body style. |
| 2019 | Chevrolet | Silverado 1500 LD | LT | - | Provides 1.85-2.75" Front Lift; Without Magnetic Ride Control Suspension; For Silverado 1500 LD only – same as 2014-2018 body style.; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2019 | Chevrolet | Silverado 1500 LD | WT | - | Provides 1.85-2.75" Front Lift; Without Magnetic Ride Control Suspension; For Silverado 1500 LD only – same as 2014-2018 body style.; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2019 | GMC | Sierra 1500 Limited | Base | - | Provides 1.85-2.75" Front Lift; Without Magnetic Ride Control Suspension; For Sierra 1500 Limited only – same as 2014-2018 body style; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2019 | GMC | Sierra 1500 Limited | SLE | - | Provides 1.85-2.75" Front Lift; Without Magnetic Ride Control Suspension; For Sierra 1500 Limited only – same as 2014-2018 body style; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2017-2018 | Chevrolet | Silverado 1500 | Custom | - | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2018 | Chevrolet | Silverado 1500 | High Country | - | Provides 1.85-2.75" Front Lift; Without Magnetic Ride Control Suspension; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2017-2018 | Chevrolet | Silverado 1500 | LS | Crew Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2017-2018 | Chevrolet | Silverado 1500 | LS | Extended Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2017-2018 | Chevrolet | Silverado 1500 | LT | Crew Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2017-2018 | Chevrolet | Silverado 1500 | LT | Extended Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2017-2018 | Chevrolet | Silverado 1500 | LTZ | - | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2017-2018 | Chevrolet | Silverado 1500 | WT | Crew Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2017-2018 | Chevrolet | Silverado 1500 | WT | Extended Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2017-2018 | Chevrolet | Silverado 1500 | High Country | - | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2017-2018 | GMC | Sierra 1500 | Base | Crew Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2017-2018 | GMC | Sierra 1500 | Base | Extended Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2017-2018 | GMC | Sierra 1500 | SLE | Crew Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2017-2018 | GMC | Sierra 1500 | SLE | Extended Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2017-2018 | GMC | Sierra 1500 | SLT | - | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended |
| 2016 | Chevrolet | Silverado 1500 | Custom | - | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
| 2014-2016 | Chevrolet | Silverado 1500 | High Country | - | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
| 2015-2016 | Chevrolet | Silverado 1500 | LS | Crew Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
| 2015-2016 | Chevrolet | Silverado 1500 | LS | Extended Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
| 2014-2016 | Chevrolet | Silverado 1500 | LT | Crew Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
| 2014-2016 | Chevrolet | Silverado 1500 | LT | Extended Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
| 2014-2016 | Chevrolet | Silverado 1500 | LTZ | - | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
| 2014-2016 | Chevrolet | Silverado 1500 | WT | Crew Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
| 2014-2016 | Chevrolet | Silverado 1500 | WT | Extended Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
| 2014-2016 | GMC | Sierra 1500 | Base | Crew Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
| 2014-2016 | GMC | Sierra 1500 | Base | Extended Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
| 2014-2016 | GMC | Sierra 1500 | SLE | Crew Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
| 2014-2016 | GMC | Sierra 1500 | SLE | Extended Cab Pickup | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
| 2014-2016 | GMC | Sierra 1500 | SLT | - | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
| 2014 | GMC | Sierra 1500 | Denali | - | Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details |
