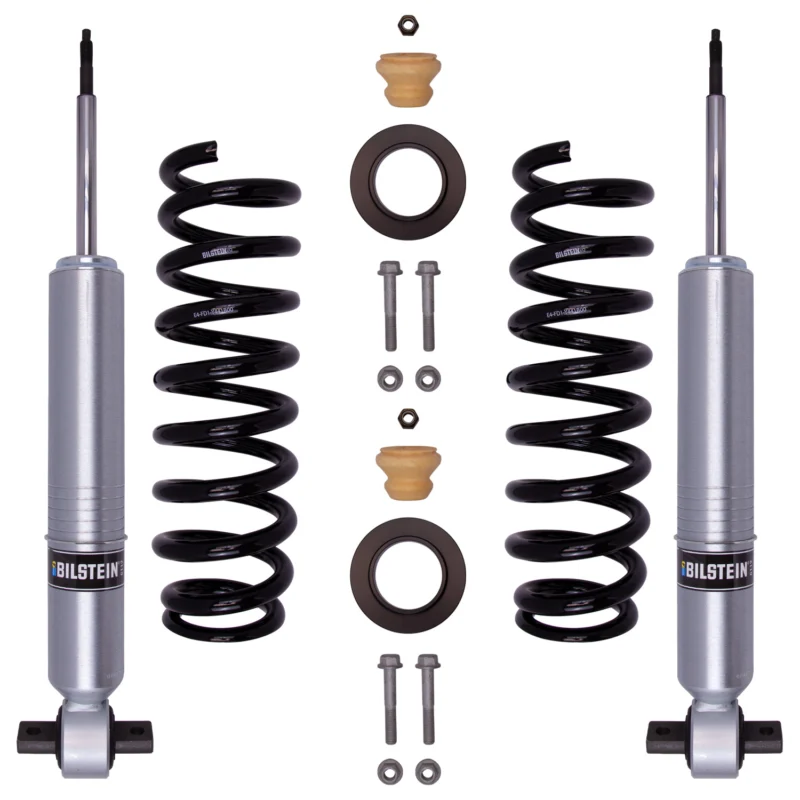

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Front Suspension Kit
| Brand | Bilstein |
|---|---|
| Part Number | 47-323841 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Collapsed Length (IN) | 16.30 |
| Collapsed Length (mm) | 414.0 |
| Extended Length (IN) | 22.22 |
| Extended Length (mm) | 564.3 |
| Finish | Dampers: Zinc Plated/Springs: Black |
| Front Main Spring Rate (lbs/in) | 500 |
| Internal Design | Monotube |
| PartType | Suspension Kit |
| Piston Diameter | 60mm |
| Segment | Light Truck |
| Series | B8 6112 |
| Shaft Diameter | 18mm |
| Spring Seat Included | Yes |
| Stroke/Travel Length (IN) | 5.92 |
| Stroke/Travel Length (mm) | 150.3 |
| Weight | 53.3 lbs |
| Boot Included | No |
| Reservoir | No |
| Year(s) | Make | Model | Submodel | Cab / Body | Notes |
|---|---|---|---|---|---|
| 2021-2026 | Ford | F-150 | King Ranch | Crew Cab Pickup | Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid |
| 2021-2026 | Ford | F-150 | King Ranch | Crew Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2021-2026 | Ford | F-150 | Lariat | Crew Cab Pickup | Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid |
| 2021-2026 | Ford | F-150 | Lariat | Crew Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2021-2026 | Ford | F-150 | Platinum | Crew Cab Pickup | Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid |
| 2021-2026 | Ford | F-150 | Platinum | Crew Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2025-2026 | Ford | F-150 | Tremor | - | Provides 0-1.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2021, 2023-2026 | Ford | F-150 | XL | Crew Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2021-2026 | Ford | F-150 | XL | Extended Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2021-2026 | Ford | F-150 | XLT | Crew Cab Pickup | Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid |
| 2021-2026 | Ford | F-150 | XLT | Extended Cab Pickup | Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid |
| 2021-2026 | Ford | F-150 | XLT | Crew Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2021-2026 | Ford | F-150 | XLT | Extended Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2024-2026 | Ford | F-150 | STX | Crew Cab Pickup | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping |
| 2024-2026 | Ford | F-150 | STX | Extended Cab Pickup | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping |
| 2021-2026 | Ford | F-150 | XL | Crew Cab Pickup | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping |
| 2021-2026 | Ford | F-150 | XL | Extended Cab Pickup | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping |
| 2021-2026 | Ford | F-150 | XLT | Crew Cab Pickup | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping |
| 2021-2026 | Ford | F-150 | XLT | Extended Cab Pickup | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping |
| 2021-2026 | Ford | F-150 | Lariat | Crew Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping |
| 2025-2026 | Ford | F-150 | STX | Crew Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping |
| 2021-2026 | Ford | F-150 | Tremor | - | Provides 0-1.5" Front Lift; Without Continuously Controlled Damping |
| 2021-2026 | Ford | F-150 | XL | Crew Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping |
| 2021-2026 | Ford | F-150 | XL | Extended Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping |
| 2021-2026 | Ford | F-150 | XLT | Crew Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping |
| 2021-2026 | Ford | F-150 | XLT | Extended Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping |
| 2024 | Ford | F-150 | STX | Crew Cab Pickup | Without Continuously Controlled Damping; Provides 0-2.5" Front Lift |
| 2021-2023 | Ford | F-150 | Lariat | Crew Cab Pickup | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping |
| 2021-2023 | Ford | F-150 | Lariat | Extended Cab Pickup | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping |
| 2021-2023 | Ford | F-150 | King Ranch | Crew Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping |
| 2021-2023 | Ford | F-150 | Lariat | Extended Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping |
| 2021-2023 | Ford | F-150 | Platinum | Crew Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping |
| 2021-2023 | Ford | F-150 | Lariat | Extended Cab Pickup | Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid |
| 2021-2023 | Ford | F-150 | Lariat | Extended Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2021-2023 | Ford | F-150 | Limited | Crew Cab Pickup | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2021-2023 | Ford | F-150 | XL | Crew Cab Pickup | Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid |
| 2021-2023 | Ford | F-150 | XL | Extended Cab Pickup | Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid |
| 2022 | Ford | F-150 | XL | Crew Cab Pickup | EcoBoost Engine; Without Continuously Controlled Damping; Provides 0-2.5" Front Lift |
