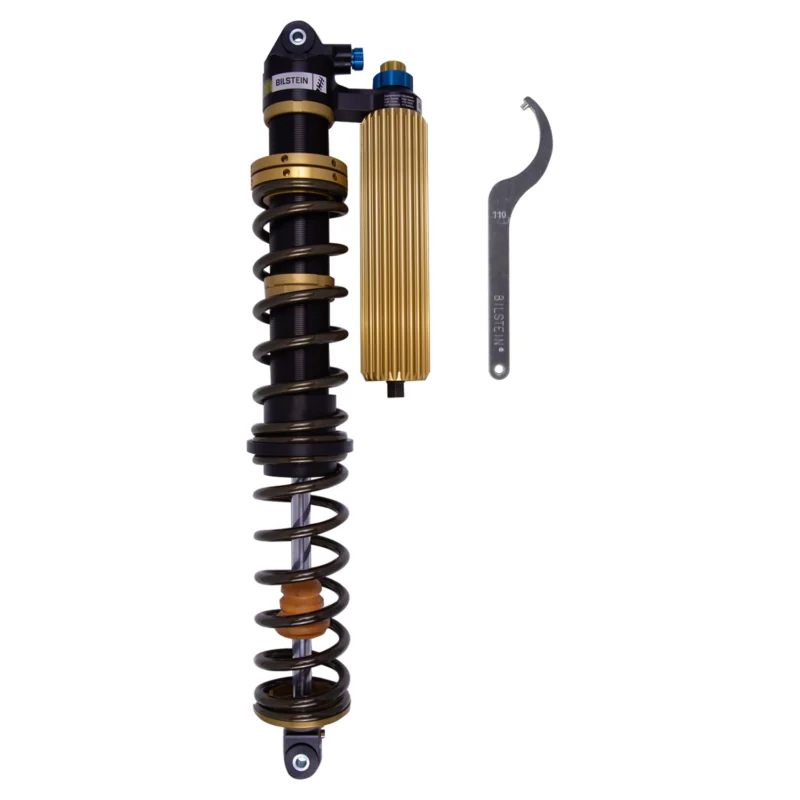

Bilstein P/N 41-330579

B8 6112 Coilover

Description

Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability, all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein’s patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression, rebound, and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to withstand race conditions right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique “bottomless” ride with Bilstein’s new Black Hawk Powersports coilover packages.

60mm Front Right Corner Module

Specifications

BrandBilstein
Part Number41-330579
Body DesignThreaded Body
Body MaterialAluminum alloy
Collapsed Length (IN)20.40
Collapsed Length (MM)518.2
Extended Length (IN)31.88
Extended Length (MM)809.7
FinishType III Hard Anodized
Internal DesignMonotube
Lower Mount TypeEye 12mm (ID)
MakeCan-Am
ModelMaverick X3
PartTypeShocks / Struts
Piston Diameter60mm
PositionFront Right
Rebound @0.52m/sAdjustable
ReservoirYes
SegmentMotorsports
SeriesBlack Hawk Powersports
Shaft Diameter (mm)22.0
Stroke/Travel Length (IN)11.48
Stroke/Travel Length (mm)291.6
Upper Mount TypeEye 12mm (ID)
Adjustable Damping4-Way Adjustable - High and Low Speed Compression, Rebound, JCO-Jounce Cut-Off (Hydraulic Bump)
Weight32.55 lbs

Vehicle Fitment

Year(s)MakeModelSubmodelNotes
2022-2023Can-AmMaverick X3 RS Turbo RRBase2 Seats
2022-2023Can-AmMaverick X3 X mr Turbo RR 72Base2 Seats
2022-2023Can-AmMaverick X3 X rc Turbo RR 72Base2 Seats
2020-2023Can-AmMaverick X3 X rs Turbo RRBase2 Seats
2021-2023Can-AmMaverick X3 X rs Turbo RR Smart-ShoxBase2 Seats
2020-2022Can-AmMaverick X3 X mr Turbo RRBase2 Seats
2020-2022Can-AmMaverick X3 X rc Turbo RRBase2 Seats
2020-2021Can-AmMaverick X3 RS Turbo RBase2 Seats
2018-2019Can-AmMaverick X3 X mr Turbo RBase2 Seats
2018-2019Can-AmMaverick X3 X rc Turbo RBase2 Seats
2017-2019Can-AmMaverick X3 X rs Turbo RBase2 Seats
