Bilstein P/N 41-325247

B8 6112 Coilover

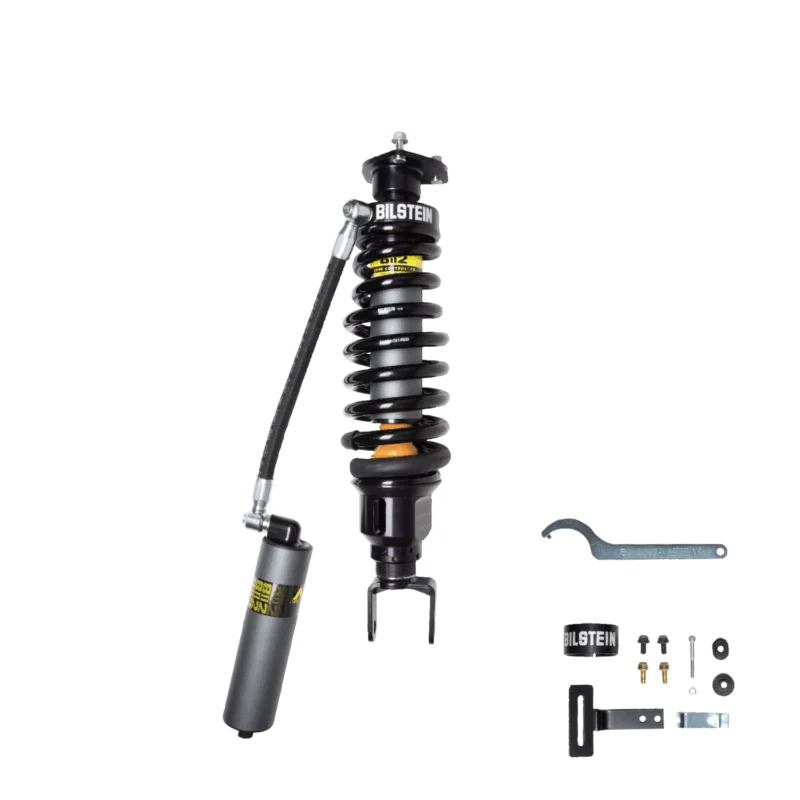

Bilstein 41-325247 - B8 6112 Coilover

Description

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

60mm Front Left Corner Module

Specifications

BrandBilstein
Part Number41-325247
Adjustable DampingNon-Adjustable
Body DesignSmooth Body (Coilover)
Body MaterialSteel
Collapsed Length (IN)16.92
Collapsed Length (MM)429.8
Extended Length (IN)22.16
Extended Length (MM)562.8
FinishDampers: EVO Grey/Springs: Black
Front Main Spring Rate (lbs/in)550 lbs
Internal DesignMonotube
Lower Mount TypeEye 16.5mm
PartTypeShocks / Struts
Piston Diameter60mm
ReservoirYes
SegmentLight Truck
SeriesB8 8112 (ZoneControl CR)
Shaft Diameter (mm)22.0
Spring Seat IncludedYes
Upper Mount TypeSpecial
Weight40.3 lbs

Vehicle Fitment

Year(s)MakeModelSubmodelNotes
2023-2024, 2026Ram1500Big HornProvides 1.25-2.5" Front Lift without factory Off-Road Package; 0.6-1.9" Front Lift with factory Off-Road Package; Without Air Suspension; Aftermarket Upper Control Arms required
2023-2024, 2026Ram1500Big HornProvides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package; Without Air Suspension; Aftermarket Upper Control Arms required
2026Ram1500ExpressAftermarket Upper Control Arms required; Without Air Suspension; Provides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package
2026Ram1500ExpressProvides 1.25-2.5" Front Lift without factory Off-Road Package; 0.6-1.9" Front Lift with factory Off-Road Package; Without Air Suspension; Aftermarket Upper Control Arms required
2023-2024, 2026Ram1500LaramieProvides 1.25-2.5" Front Lift without factory Off-Road Package; 0.6-1.9" Front Lift with factory Off-Road Package; Without Air Suspension; Aftermarket Upper Control Arms required
2023-2024, 2026Ram1500LaramieProvides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package; Without Air Suspension; Aftermarket Upper Control Arms required
2023-2024, 2026Ram1500Lone StarProvides 1.25-2.5" Front Lift without factory Off-Road Package; 0.6-1.9" Front Lift with factory Off-Road Package; Without Air Suspension; Aftermarket Upper Control Arms required
2026Ram1500Lone StarProvides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package; Aftermarket Upper Control Arms required; Without Air Suspension
2023-2024, 2026Ram1500RebelProvides 0.6-1.9" Front Lift; Without Air Suspension; Aftermarket Upper Control Arms required
2023-2024, 2026Ram1500TradesmanProvides 1.25-2.5" Front Lift without factory Off-Road Package; 0.6-1.9" Front Lift with factory Off-Road Package; Without Air Suspension; Aftermarket Upper Control Arms required
2023-2024, 2026Ram1500TradesmanProvides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package; Without Air Suspension; Aftermarket Upper Control Arms required
2026Ram1500WarlockProvides 0.6-1.9" Front Lift; Without Air Suspension; Aftermarket Upper Control Arms required
2023-2024Ram1500Limited LonghornProvides 1.25-2.5" Front Lift without factory Off-Road Package; 0.6-1.9" Front Lift with factory Off-Road Package; Without Air Suspension; Aftermarket Upper Control Arms required
2023-2024Ram1500Limited LonghornProvides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package; Without Air Suspension; Aftermarket Upper Control Arms required
2023-2024Ram1500Lone StarProvides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package; Without Air Suspension; Aftermarket Upper Control Arms required
2023-2024Ram1500RebelProvides 1.1-2" Front Lift; Without Air Suspension; Aftermarket Upper Control Arms required
2020-2023Ram1500Big HornProvides 1.1-2.25" Front Lift without Factory Off-Road Package; 0-1.25" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2020-2023Ram1500LaramieProvides 1.1-2.25" Front Lift without Factory Off-Road Package; 0-1.25" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2022-2023Ram1500LimitedProvides 1.1-2.25" Front Lift without Factory Off-Road Package; 0-1.25" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2021-2023Ram1500Limited LonghornProvides 1.1-2.25" Front Lift without Factory Off-Road Package; 0-1.25" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2021-2023Ram1500Lone StarProvides 1.1-2.25" Front Lift without Factory Off-Road Package; 0-1.25" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2020-2023Ram1500RebelProvides 0-1.25" Front Lift; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2020-2023Ram1500TradesmanProvides 1.1-2.25" Front Lift without Factory Off-Road Package; 0-1.25" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2019-2022Ram1500Big HornProvides 1.25-2.5" Front Lift without factory Off-Road Package; 0.6-1.9" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2019-2022Ram1500Big HornProvides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2019-2022Ram1500LaramieProvides 1.25-2.5" Front Lift without factory Off-Road Package; 0.6-1.9" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2019-2022Ram1500LaramieProvides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2021-2022Ram1500Limited LonghornProvides 1.25-2.5" Front Lift without factory Off-Road Package; 0.6-1.9" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2022Ram1500Limited LonghornProvides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2022Ram1500Lone StarAftermarket Upper Control Arms required; Without Air Leveling Suspension; Provides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package
2019-2022Ram1500Lone StarProvides 1.25-2.5" Front Lift without factory Off-Road Package; 0.6-1.9" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2019-2022Ram1500RebelProvides 0.6-1.9" Front Lift; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2019-2022Ram1500RebelProvides 1.1-2" Front Lift; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2019-2022Ram1500TradesmanProvides 1.25-2.5" Front Lift without factory Off-Road Package; 0.6-1.9" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2019-2022Ram1500TradesmanProvides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2019-2021Ram1500Laramie LonghornProvides 1.25-2.5" Front Lift without factory Off-Road Package; 0.6-1.9" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2019-2021Ram1500Laramie LonghornProvides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2021Ram1500Limited LonghornProvides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package; Aftermarket Upper Control Arms required; Without Air Leveling Suspension
2019-2021Ram1500Lone StarProvides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2021Ram1500LonghornProvides 1.25-2.5" Front Lift without factory Off-Road Package; 0.6-1.9" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2021Ram1500LonghornProvides 1.75-2.6" Front Lift without factory Off-Road Package; 1.1-2" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2020-2021Ram1500Laramie LonghornProvides 1.1-2.25" Front Lift without Factory Off-Road Package; 0-1.25" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2021Ram1500LonghornProvides 1.1-2.25" Front Lift without Factory Off-Road Package; 0-1.25" Front Lift with factory Off-Road Package; Without Air Leveling Suspension; Aftermarket Upper Control Arms required
2020Ram1500Lone StarAftermarket Upper Control Arms required; Without Air Leveling Suspension; Provides 1.1-2.25" Front Lift without Factory Off-Road Package; 0-1.25" Front Lift with factory Off-Road Package
