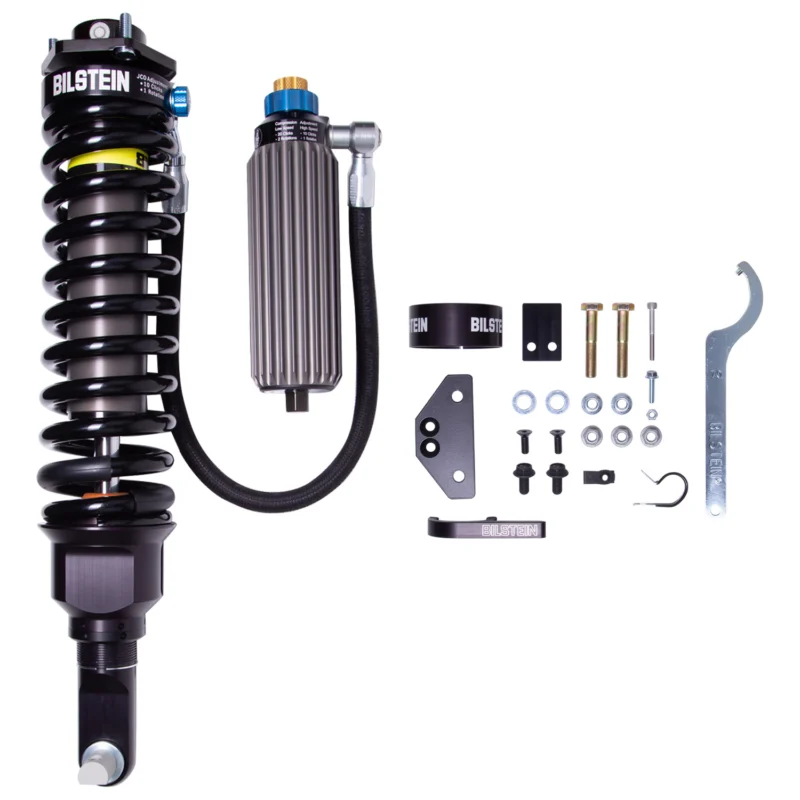

BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit, feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound. Plus, 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option. The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads, fully loaded or unloaded, the B8 8112 Black Hawk offers the “best in class” ride experience.
60mm Front Right Corner Module
| Brand | Bilstein |
|---|---|
| Part Number | 41-314227 |
| Aftermarket Upper Arms Required | Yes |
| Body Design | Smooth Body (Coilover) |
| Body Material | Aluminum |
| Collapsed Length (IN) | 17.59 |
| Collapsed Length (MM) | 446.2 |
| Extended Length (IN) | 23.40 |
| Extended Length (MM) | 594.7 |
| Finish | Dampers: EVO Grey/Springs: Black |
| Front Main Spring Rate (lbs/in) | 400 |
| Internal Design | Monotube |
| Lower Mount Type | Crossbar |
| PartType | Shocks / Struts |
| Piston Diameter | 60mm |
| Reservoir | Yes - Finned Aluminum |
| Segment | Light Truck |
| Series | B8 8112 Black Hawk |
| Shaft Diameter (mm) | 22.0 |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Adjustable Damping | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
| Weight | 39.8 lbs |
| Boot Included | No |
| Year(s) | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2021-2026 | Ford | Bronco | Badlands | Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package |
| 2021-2026 | Ford | Bronco | Badlands | Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package |
| 2021-2023, 2025-2026 | Ford | Bronco | Base | Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2021-2023, 2025-2026 | Ford | Bronco | Base | Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package |
| 2021-2026 | Ford | Bronco | Big Bend | Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2023-2026 | Ford | Bronco | Heritage Edition | Provides 0-1.4" Front Lift |
| 2021-2026 | Ford | Bronco | Outer Banks | Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2026 | Ford | Bronco | Stroppe Edition | Provides 0.5-1.4" Front Lift |
| 2025 | Ford | Bronco | Stroppe Edition | Provides 0.6-1.7" Front Lift |
| 2021-2024 | Ford | Bronco | Outer Banks | Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package |
| 2021-2024 | Ford | Bronco | Wildtrak | Provides 0-1.4" Front Lift |
| 2021-2024 | Ford | Bronco | Wildtrak | Provides 0.6-1.7" Front Lift |
| 2021-2024 | Ford | Bronco | Big Bend | Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package |
| 2021-2022, 2024 | Ford | Bronco | Black Diamond | Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2021-2024 | Ford | Bronco | Black Diamond | Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package |
| 2022-2024 | Ford | Bronco | Everglades | Provides 0-1.4" Front Lift |
| 2023-2024 | Ford | Bronco | Heritage Edition | Provides 0.6-1.7" Front Lift |
| 2023-2024 | Ford | Bronco | Heritage Limited Edition | Provides 0-1.4" Front Lift |
| 2023-2024 | Ford | Bronco | Heritage Limited Edition | Provides 0.6-1.7" Front Lift |
| 2023 | Ford | Bronco | Black Diamond | Aftermarket upper control arms recommended for lift heights greater than 2.5"; Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package |
| 2021 | Ford | Bronco | First Edition | Provides 0-1.4" Front Lift |
| 2021 | Ford | Bronco | First Edition | Provides 0.6-1.7" Front Lift |
