Bilstein P/N 25-331127

B8 5100

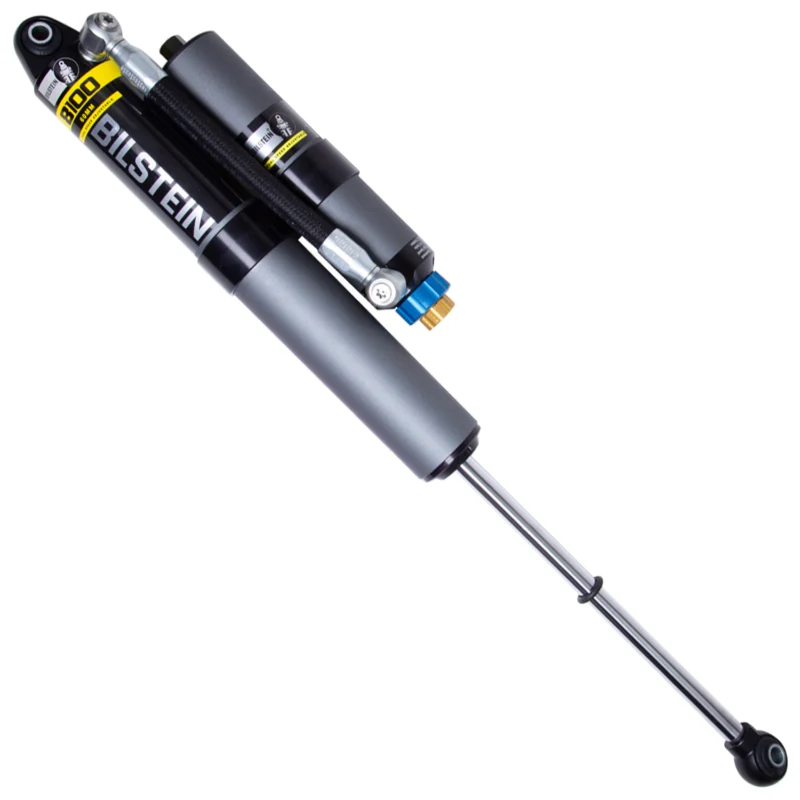

Bilstein 25-331127 - B8 5100

Description

The Bilstein B8 8100 (DSA) reservoir shock absorber is an adjustable large bore 60mm (2.65" OD) direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (DSA) will allow you to tame the terrain in comfort.

60mm Shock Absorber

Specifications

BrandBilstein
Part Number25-331127
Body DesignBypass Body (Non-Coilover)
Collapsed Length (IN)19.49
Collapsed Length (MM)495.0
Extended Length (IN)32.01
Extended Length (MM)813.0
FinishEVO Grey
Internal DesignMonotube
Lower Mount TypeEye 12.8mm
PartTypeShocks / Struts
Piston Diameter60mm
ReservoirYes
SegmentLight Truck
SeriesB8 8100 (DSA)
Shaft Diameter18mm
Upper Mount TypeEye 12.8mm
Adjustable DampingClick Adjusters for High and Low Speed Compression
Weight22.3 lbs

Vehicle Fitment

Year(s)MakeModelSubmodelNotes
2018-2026JeepWranglerRubiconFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2024-2026JeepWranglerRubicon XFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2018-2026JeepWranglerSportFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2018-2026JeepWranglerSport SFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021-2026JeepWranglerWillysFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2023-2025JeepWranglerHigh Altitude 4xeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2023-2025JeepWranglerRubicon 4xeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2024-2025JeepWranglerRubicon X 4xeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2023-2025JeepWranglerSaharaFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2023-2025JeepWranglerSahara 4xeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2024-2025JeepWranglerSport S 4xeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2024-2025JeepWranglerWillys 4xeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2023-2024JeepWranglerRubicon 392Fits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2024JeepWranglerRubicon 392 Final EditionFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021-2024JeepWranglerWillys SportFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2023JeepWranglerSahara AltitudeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2023JeepWranglerSahara High AltitudeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2023JeepWranglerSport AltitudeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021, 2023JeepWranglerFreedomFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2023JeepWranglerHigh AltitudeRequires appropriate bump stop extensions; Fits Vehicles With 3-4.5" Rear Lift
2023JeepWranglerHigh TideFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2022JeepWranglerUnlimited High TideFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2018-2022JeepWranglerUnlimited RubiconFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021-2022JeepWranglerUnlimited Rubicon 392Fits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021-2022JeepWranglerUnlimited Rubicon 4xeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2018-2022JeepWranglerUnlimited SaharaFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021-2022JeepWranglerUnlimited Sahara 4xeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2022JeepWranglerUnlimited Sahara AltitudeRequires appropriate bump stop extensions; Fits Vehicles With 3-4.5" Rear Lift
2021-2022JeepWranglerUnlimited Sahara High AltitudeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2019-2022JeepWranglerUnlimited SportFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021-2022JeepWranglerUnlimited Sport AltitudeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2018-2022JeepWranglerUnlimited Sport SFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021-2022JeepWranglerUnlimited WillysFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021-2022JeepWranglerUnlimited Willys SportFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021-2022JeepWranglerUnlimited High AltitudeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021-2022JeepWranglerUnlimited High Altitude 4xeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021JeepWrangler80th AnniversaryFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021JeepWranglerIslanderFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021JeepWranglerUnlimited 80th AnniversaryFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021JeepWranglerUnlimited FreedomFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021JeepWranglerUnlimited IslanderFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2021JeepWranglerUnlimited Sahara AltitudeFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2018-2019JeepWranglerUnlimited MoabFits Vehicles With 3-4.5" Rear Lift; Requires appropriate bump stop extensions
2018JeepWranglerUnlimited SportRequires appropriate bump stop extensions; Fits Vehicles With 3-4.5" Rear Lift
Bilstein P/N 25-331127

B8 5100

$818.00

ⓘ
Check if this fits your vehicle Select your vehicle
Professional installation available
We install this! Suspension, wheel and tire labor varies a lot by vehicle and setup - contact your local store for an exact installation quote.
888-865-4024
Built to orderShips direct from the manufacturer to your local H&H store. Call 888-865-4024 for lead times.
