Bilstein P/N 25-311846

B8 5100, Zinc Plated

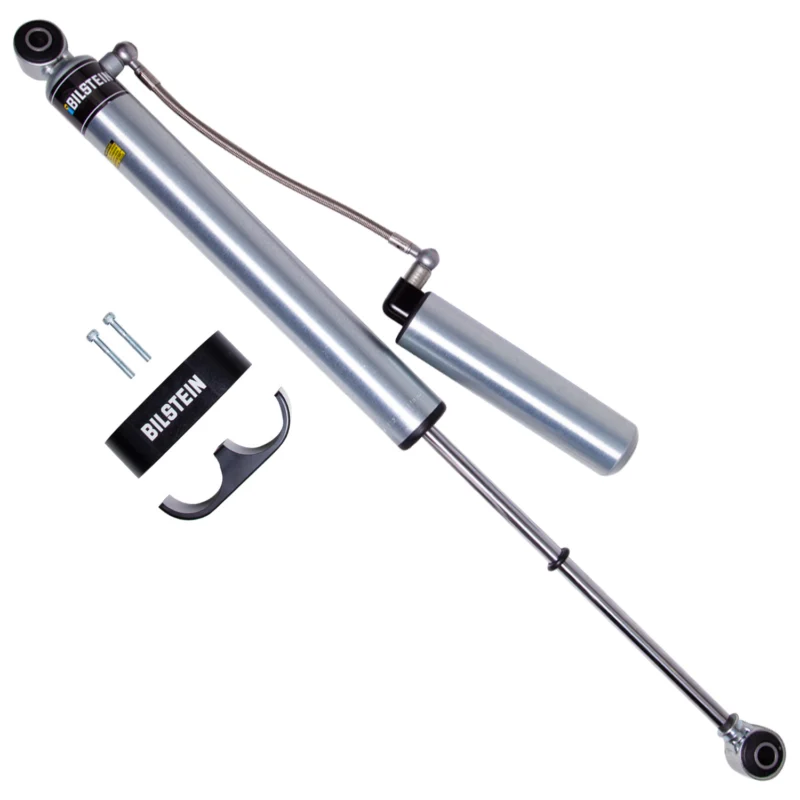

Bilstein 25-311846 - B8 5100, Zinc Plated

Description

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

46mm Monotube Shock Absorber

Specifications

BrandBilstein
Part Number25-311846
Adjustable DampingNon-Adjustable
Billet Reservoir Clamp IncludedYes
Body DesignSmooth Body (Non-Coilover)
Collapsed Length (IN)18.14
Collapsed Length (MM)460.8
Extended Length (IN)31.28
Extended Length (MM)794.5
FinishZinc Plated
Internal DesignMonotube
Lower Mount TypeEye 14.4mm
PartTypeShocks / Struts
Piston Diameter46mm
ReservoirYes
SegmentLight Truck
SeriesB8 5160
Shaft Diameter14mm
Stroke/Travel Length (IN)13.14
Stroke/Travel Length (mm)333.8
Upper Mount TypeEye 14.4mm
Weight8.5 lbs

Vehicle Fitment

Year(s)MakeModelSubmodelNotes
2015-2026ChevroletSilverado 2500 HDHigh CountryFits Vehicles With 3-4" Rear Lift
2011-2026ChevroletSilverado 2500 HDLTFits Vehicles With 3-4" Rear Lift
2011-2026ChevroletSilverado 2500 HDLTZFits Vehicles With 3-4" Rear Lift
2011-2026ChevroletSilverado 2500 HDWTFits Vehicles With 3-4" Rear Lift
2020-2026ChevroletSilverado 2500 HDCustomFits Vehicles With 3-4" Rear Lift
2015-2026ChevroletSilverado 3500 HDHigh CountryFits Vehicles With 3-4" Rear Lift
2011-2026ChevroletSilverado 3500 HDLTFits Vehicles With 3-4" Rear Lift
2011-2026ChevroletSilverado 3500 HDLTZFits Vehicles With 3-4" Rear Lift
2011-2026ChevroletSilverado 3500 HDWTFits Vehicles With 3-4" Rear Lift
2020-2026GMCSierra 2500 HDAT4Fits Vehicles With Aftermarket 3-4" Rear Lift
2011-2026GMCSierra 2500 HDDenaliFits Vehicles With 3-4" Rear Lift
2024-2026GMCSierra 2500 HDDenali UltimateFits Vehicles With 3-4" Rear Lift
2022-2026GMCSierra 2500 HDProFits Vehicles With 3-4" Rear Lift
2011-2026GMCSierra 2500 HDSLEFits Vehicles With 3-4" Rear Lift
2011-2026GMCSierra 2500 HDSLTFits Vehicles With 3-4" Rear Lift
2024-2026GMCSierra 3500 HDAT4Fits Vehicles With 3-4" Rear Lift
2011-2026GMCSierra 3500 HDDenaliFits Vehicles With 3-4" Rear Lift
2024-2026GMCSierra 3500 HDDenali UltimateFits Vehicles With 3-4" Rear Lift
2022-2026GMCSierra 3500 HDProFits Vehicles With 3-4" Rear Lift
2011-2026GMCSierra 3500 HDSLEFits Vehicles With 3-4" Rear Lift
2011-2026GMCSierra 3500 HDSLTFits Vehicles With 3-4" Rear Lift
2020-2023GMCSierra 3500 HDAT4Fits Vehicles With Aftermarket 3-4" Rear Lift
2015-2021GMCSierra 2500 HDBaseFits Vehicles With 3-4" Rear Lift
2015-2021GMCSierra 3500 HDBaseFits Vehicles With 3-4" Rear Lift
2011-2014GMCSierra 2500 HDWTFits Vehicles With 3-4" Rear Lift
2011-2014GMCSierra 3500 HDWTFits Vehicles With 3-4" Rear Lift
2001-2010ChevroletSilverado 2500 HDLTFits Vehicles With 4" Rear Lift
2007-2010ChevroletSilverado 2500 HDLTZFits Vehicles With 4" Rear Lift
2004, 2006-2010ChevroletSilverado 2500 HDWTFits Vehicles With 4" Rear Lift
2007-2010ChevroletSilverado 3500 HDLTFits Vehicles With 4" Rear Lift
2007-2010ChevroletSilverado 3500 HDLTZFits Vehicles With 4" Rear Lift
2007-2010ChevroletSilverado 3500 HDWTFits Vehicles With 4" Rear Lift
2001-2010GMCSierra 2500 HDSLEFits Vehicles With 4" Rear Lift
2001-2010GMCSierra 2500 HDSLTFits Vehicles With 4" Rear Lift
2003-2010GMCSierra 2500 HDWTFits Vehicles With 4" Rear Lift
2007-2010GMCSierra 3500 HDSLEFits Vehicles With 4" Rear Lift
2007-2010GMCSierra 3500 HDSLTFits Vehicles With 4" Rear Lift
2007-2010GMCSierra 3500 HDWTFits Vehicles With 4" Rear Lift
2007ChevroletSilverado 2500 HD ClassicLSFits Vehicles With 4" Rear Lift
2007ChevroletSilverado 2500 HD ClassicLTFits Vehicles With 4" Rear Lift
2007ChevroletSilverado 2500 HD ClassicWTFits Vehicles With 4" Rear Lift
2007ChevroletSilverado 3500 ClassicLSFits Vehicles With 4" Rear Lift
2007ChevroletSilverado 3500 ClassicLSFits Vehicles With 4" Rear Lift; With Independent Front Suspension
2007ChevroletSilverado 3500 ClassicLTFits Vehicles With 4" Rear Lift
2007ChevroletSilverado 3500 ClassicLTFits Vehicles With 4" Rear Lift; With Independent Front Suspension
2007ChevroletSilverado 3500 ClassicWTFits Vehicles With 4" Rear Lift
2007ChevroletSilverado 3500 ClassicWTFits Vehicles With 4" Rear Lift; With Independent Front Suspension
2007GMCSierra 2500 HD ClassicSLFits Vehicles With 4" Rear Lift
2007GMCSierra 2500 HD ClassicSLEFits Vehicles With 4" Rear Lift
2007GMCSierra 2500 HD ClassicSLTFits Vehicles With 4" Rear Lift
2007GMCSierra 2500 HD ClassicWTFits Vehicles With 4" Rear Lift
2001, 2006ChevroletSilverado 1500 HDLTFits Vehicles With 4" Rear Lift; Without ZX3 Electronic Suspension Package
2001-2006ChevroletSilverado 2500 HDLSFits Vehicles With 4" Rear Lift
2001-2006ChevroletSilverado 3500LSFits Vehicles With 4" Rear Lift
2001-2006ChevroletSilverado 3500LSFits Vehicles With 4" Rear Lift; With Independent Front Suspension
2001-2006ChevroletSilverado 3500LTFits Vehicles With 4" Rear Lift
2001-2006ChevroletSilverado 3500LTFits Vehicles With 4" Rear Lift; With Independent Front Suspension
2004, 2006ChevroletSilverado 3500WTFits Vehicles With 4" Rear Lift
2004, 2006ChevroletSilverado 3500WTFits Vehicles With 4" Rear Lift; With Independent Front Suspension
2001, 2006GMCSierra 1500 HDSLEFits Vehicles With 4" Rear Lift; Without ZX3 Electronic Suspension Package
2001, 2006GMCSierra 1500 HDSLTFits Vehicles With 4" Rear Lift; Without ZX3 Electronic Suspension Package
2001-2002, 2006GMCSierra 2500 HDSLFits Vehicles With 4" Rear Lift
2001-2002, 2006GMCSierra 3500SLFits Vehicles With 4" Rear Lift
2001-2002, 2006GMCSierra 3500SLFits Vehicles With 4" Rear Lift; With Independent Front Suspension
2001-2006GMCSierra 3500SLEFits Vehicles With 4" Rear Lift
2001-2006GMCSierra 3500SLEFits Vehicles With 4" Rear Lift; With Independent Front Suspension
2001-2006GMCSierra 3500SLTFits Vehicles With 4" Rear Lift
2001, 2003-2006GMCSierra 3500SLTFits Vehicles With 4" Rear Lift; With Independent Front Suspension
2004-2006GMCSierra 3500WTFits Vehicles With 4" Rear Lift
2004-2006GMCSierra 3500WTFits Vehicles With 4" Rear Lift; With Independent Front Suspension
2005ChevroletSilverado 1500 HDBaseFits Vehicles With 4" Rear Lift; Without ZX3 Electronic Suspension Package; Without Quadrasteer
2002-2003, 2005ChevroletSilverado 1500 HDLSFits Vehicles With 4" Rear Lift; Without ZX3 Electronic Suspension Package; Without Quadrasteer
2002-2003, 2005ChevroletSilverado 1500 HDLTFits Vehicles With 4" Rear Lift; Without ZX3 Electronic Suspension Package; Without Quadrasteer
2001-2005ChevroletSilverado 2500 HDBaseFits Vehicles With 4" Rear Lift
2001-2005ChevroletSilverado 3500BaseFits Vehicles With 4" Rear Lift
2001-2005ChevroletSilverado 3500BaseFits Vehicles With 4" Rear Lift; With Independent Front Suspension
2002-2003, 2005GMCSierra 1500 HDSLEFits Vehicles With 4" Rear Lift; Without Quadrasteer; Without ZX3 Electronic Suspension Package
2002-2003, 2005GMCSierra 1500 HDSLTFits Vehicles With 4" Rear Lift; Without Quadrasteer; Without ZX3 Electronic Suspension Package
2002-2005GMCSierra 2500 HDBaseFits Vehicles With 4" Rear Lift
2002-2005GMCSierra 3500BaseFits Vehicles With 4" Rear Lift
2002-2005GMCSierra 3500BaseFits Vehicles With 4" Rear Lift; With Independent Front Suspension
2002-2004ChevroletSilverado 2500BaseFits Vehicles With 4" Rear Lift; Without Quadrasteer
2002-2004ChevroletSilverado 2500LSFits Vehicles With 4" Rear Lift; Without Quadrasteer
2002-2004ChevroletSilverado 2500LTFits Vehicles With 4" Rear Lift; Without Quadrasteer
2004ChevroletSilverado 2500WTFits Vehicles With 4" Rear Lift; Without Quadrasteer
2002-2004GMCSierra 2500BaseFits Vehicles With 4" Rear Lift; Without Quadrasteer
2003-2004GMCSierra 2500SLEFits Vehicles With 4" Rear Lift; Without Quadrasteer
2002-2004GMCSierra 2500SLTFits Vehicles With 4" Rear Lift; Without Quadrasteer
2003-2004GMCSierra 2500WTFits Vehicles With 4" Rear Lift; Without Quadrasteer
2002GMCSierra 2500SLFits Vehicles With 4" Rear Lift; Without Quadrasteer
2002GMCSierra 2500SLEWithout Quadrasteer; Fits Vehicles With 4" Rear Lift
2002GMCSierra 3500SLTWith Independent Front Suspension; Fits Vehicles With 4" Rear Lift
2001ChevroletSilverado 1500 HDLSFits Vehicles With 4" Rear Lift; Without ZX3 Electronic Suspension Package
1999-2001ChevroletSilverado 2500BaseFits Vehicles With 4" Rear Lift
1999-2001ChevroletSilverado 2500LSFits Vehicles With 4" Rear Lift
1999-2001ChevroletSilverado 2500LTFits Vehicles With 4" Rear Lift
1999-2001GMCSierra 2500SLFits Vehicles With 4" Rear Lift
1999-2001GMCSierra 2500SLEFits Vehicles With 4" Rear Lift
1999-2001GMCSierra 2500SLTFits Vehicles With 4" Rear Lift
Bilstein P/N 25-311846

B8 5100, Zinc Plated

$299.00

ⓘ
Check if this fits your vehicle Select your vehicle
Professional installation available
We install this! Suspension, wheel and tire labor varies a lot by vehicle and setup - contact your local store for an exact installation quote.
888-865-4024
Built to orderShips direct from the manufacturer to your local H&H store. Call 888-865-4024 for lead times.
Shock
Free store pickupReady at your local H&H
22 storesAcross the Southeast
Family-ownedServing trucks since 1987
Installation availableAsk your store for a quote
