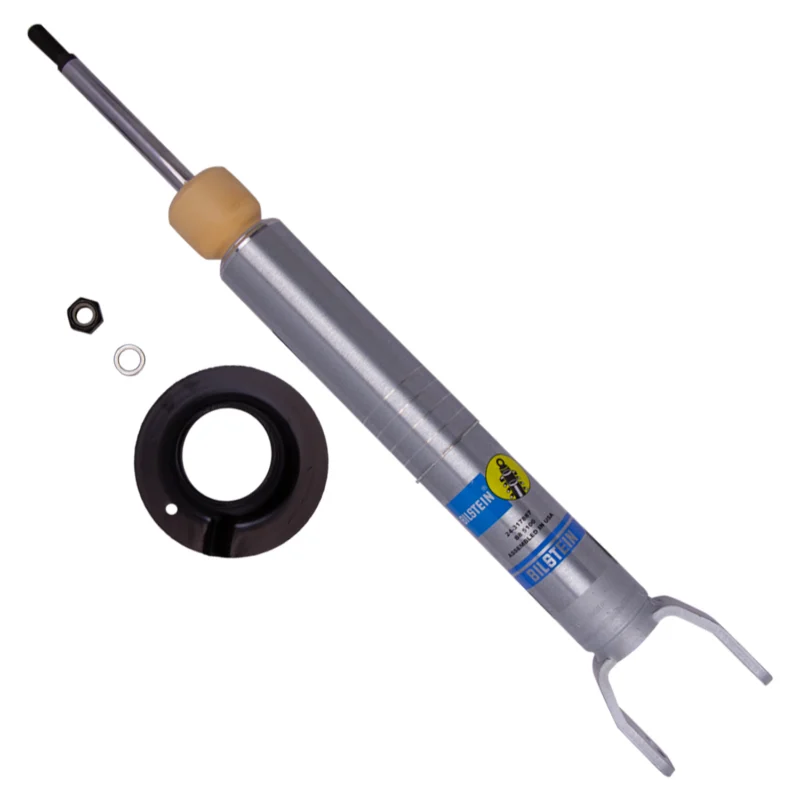

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
46mm Monotube Shock Absorber
| Brand | Bilstein |
|---|---|
| Part Number | 24-317887 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Collapsed Length (IN) | 15.12 |
| Collapsed Length (MM) | 384.0 |
| Extended Length (IN) | 21.46 |
| Extended Length (MM) | 545.2 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Clevis |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Shaft Diameter | 14mm |
| Spring Seat Included | Yes |
| Stroke/Travel Length (IN) | 6.34 |
| Stroke/Travel Length (mm) | 161.0 |
| Upper Mount Type | Stem |
| Weight | 6.04 lbs |
| Boot Included | No |
| Reservoir | No |
| Year(s) | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2023-2024 | Ram | 1500 Classic | Tradesman | Provides 0-2.8" Front Lift |
| 2023-2024 | Ram | 1500 Classic | Warlock | Provides 0-2.8" Front Lift |
| 2023 | Ram | 1500 Classic | Express | Provides 0-2.8" Front Lift |
| 2023 | Ram | 1500 Classic | SLT | Provides 0-2.8" Front Lift |
| 2019-2022 | Ram | 1500 Classic | Express | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2019-2022 | Ram | 1500 Classic | SLT | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2019-2022 | Ram | 1500 Classic | Tradesman | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2019-2022 | Ram | 1500 Classic | Warlock | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2019 | Ram | 1500 Classic | Big Horn | Without Air Suspension; Provides 0-2.8" Front Lift |
| 2019 | Ram | 1500 Classic | Laramie | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2019 | Ram | 1500 Classic | Lone Star | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2013-2018 | Ram | 1500 | Big Horn | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2013-2018 | Ram | 1500 | Express | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2013, 2015-2018 | Ram | 1500 | Laramie | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2013-2018 | Ram | 1500 | Laramie Longhorn | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2014-2018 | Ram | 1500 | Lone Star | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2013-2018 | Ram | 1500 | SLT | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2013-2018 | Ram | 1500 | Sport | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2013-2018 | Ram | 1500 | Tradesman | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2013-2016 | Ram | 1500 | Outdoorsman | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2014 | Ram | 1500 | Laramie | Without Air Suspension; Provides 0-2.8" Front Lift |
| 2014 | Ram | 1500 | Laramie Limited | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2011-2012 | Ram | 1500 | Laramie Longhorn | Provides 0-2.8" Front Lift |
| 2011-2012 | Ram | 1500 | Outdoorsman | Provides 0-2.8" Front Lift |
| 2011-2012 | Ram | 1500 | SLT | Provides 0-2.8" Front Lift |
| 2011-2012 | Ram | 1500 | Sport | Provides 0-2.8" Front Lift |
| 2011-2012 | Ram | 1500 | ST | Provides 0-2.8" Front Lift |
| 2011-2012 | Ram | 1500 | Tradesman | Provides 0-2.8" Front Lift |
| 2011-2012 | Ram | 1500 | Big Horn | Provides 0-2.8" Front Lift |
| 2012 | Ram | 1500 | Express | Provides 0-2.8" Front Lift |
| 2011-2012 | Ram | 1500 | Laramie | Provides 0-2.8" Front Lift |
| 2009-2010 | Dodge | Ram 1500 | Laramie | Provides 0-2.8" Front Lift |
| 2009-2010 | Dodge | Ram 1500 | SLT | Provides 0-2.8" Front Lift |
| 2009-2010 | Dodge | Ram 1500 | Sport | Provides 0-2.8" Front Lift |
| 2009-2010 | Dodge | Ram 1500 | ST | Provides 0-2.8" Front Lift |
| 2009-2010 | Dodge | Ram 1500 | TRX4 | Provides 0-2.8" Front Lift |
