2006-11 Dodge 1500 4wd 2.5in UCA System

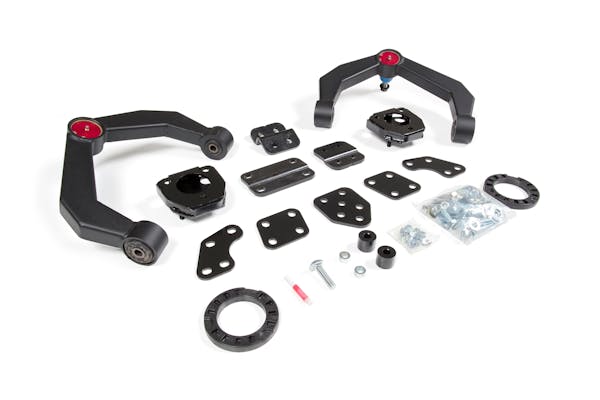

Level out your RAM 1500 the right way with Zone Offroad. In addition to these steel fabricated top mounted strut spacers and preload spacers designed for 2.5" of lift, these kits address the limitations of the factory upper ball joint (maxed out with a leveling kit installed which will lead to premature wear) by upgrading to adventure series upper control arms (UCAs). These fully boxed and welded UCAs offer superior strength and performance and use an indexed ball joint cup designed for more droop travel. Also included are differential relocation brackets to correct CV operating angles.
Level out your RAM 1500 the right way with Zone Offroad. In addition to these steel fabricated top mounted strut spacers and preload spacers designed for 2.5" of lift, these kits address the limitations of the factory upper ball joint (maxed out with a leveling kit installed which will lead to premature wear) by upgrading to adventure series upper control arms (UCAs). These fully boxed and welded UCAs offer superior strength and performance and use an indexed ball joint cup designed for more droop travel. Also included are differential relocation brackets to correct CV operating angles.
- Combination upper strut spacer and preload spacer to ensure proper lift height
- CNC-machined UCA bushing and ball joint cups
- OE rubber bushings and greaseable factory style ball joints for quiet, reliable, and low maintenance operation
- Improved UCA range of motion compared to stock arms
- Full 2" differential drop included to achieve proper CV angles at ride height and to eliminate "lobing" of the CVs at full droop
- UCA ball joint position adjusted to keep arm in a neutral position with 2-3" of lift
- UCAs utilize replaceable ball joints - replacements are readily available from most auto parts stores when needed many miles down the road
- Can be installed as a 2" or 2.5" kit
- Avoids ball joint binding issue commonly known to occur on these models with spacer only type kits that use the factory UCAs
- Detailed, easy to follow installation instructions included
- Limited Lifetime Warranty
- Upper strut spacer is pitched, offset, and rotated to ensure proper fitment and positioning with the factory strut
- Powder-coated steel upper strut spacers for long lasting durability
- Fully welded, heavy-duty upper control arms that dwarf the factory arms
Information:
The kit allows the clearance for 33-35" tires to be installed. UCA's Required: Do NOT install spacer kit without upper control arms, the factory upper ball joint will be extended past operating range. Vehicle damage may occur.Application Summary:
| Year | Make/Model |
|---|---|
| 2006-2010 | Dodge Ram 1500 |
| 2011 | Ram 1500 |
This item is a package with the following components:
Zone Offroad Products ZOND2301 Zone Advent..
Brand: Zone Offroad Products
Part Number: ZOND2301
2006-2021 Ram 1500 4wd Adventure Series UCA KitUpgrade your truck's factory upper control arms with ..
$509.95
Install with Alignment +$310.00
| Attributes | |
| Adjustable | No |
| Alternate Part Number | ZOND48 |
| Back Spacing | 4.75" |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) | US |
| Emission Code | Legal US |
| Front Lift Height | 2.5" |
| Front Lift Method | Upper Control Arms |
| GTIN | 00810156363580 |
| Hazardous Material Code | N |
| Installation Difficulty | 3 out of 5 |
| Installation Time | 4-5 hrs |
| Life Cycle Status Code | Available to Order |
| Lift Type | Leveling Kit |
| Max Tire Size | 35 x 12.5 |
| NAFTA Preference Criterion Code | B |
| Rear Lift Height | - |
| Requires Metal Cutting | No |
| Requires Welding | No |
| SDR Required Flag | N |
| Wheel Size | 17 x 9 |
Zone Offroad Products ZOND48 Zone 2.5 Adventure Series Leveling Kit
Product Information
- Brand: Zone Offroad Products
- Product Number: ZOND48
- Availability: Call for Availability at Main Warehouse
*Allow 2-3 business days to ship to your local H&H store. (In stock items only)
This item is a package with the following components: ZOND2301
$678.90
Install with Alignment +$465.00
