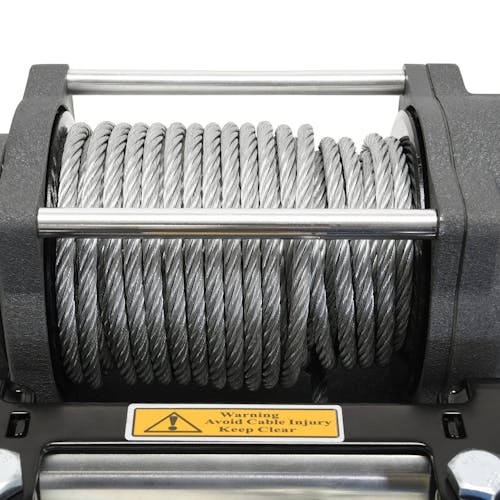

Terra 4500 Winch; 4500 lbs; 12 Vdc; 1/4 In X 50 ft Steel Rope; Solenoid w/Circuit Breaker; Remote And Switch; 1.8 hp; 3-Stage Planetary; 198:1 Gear Ratio; 4-Way Roller Fairlead;
The new generation Terra Series w inches from SuperWinch are engineered specifically to meet the rugged demands of ATV and UTV enthusiasts. Available in 2500, 3500 and 4500 lbs. capacities with a choice of wire or synthetic rope, these powerful w inches have been redesigned and improved inside and out. Each Winch is loaded with a powerful motor, strong all steel gearing and a steel drum for superior performance and durability. All Terra Series w inches are equipped with a remotely mountable control box that houses a sealed solenoid and circuit breaker to ensure reliable operation. Free spool function is simple to manage with an easy to engage ergonomic control knob. Each Winch includes a 10' wired remote control and a handlebar mounted rocker switch for dependable control and maximum versatility. The Terra Series w inches have an IP67 rating for water and dust protection so they are always ready for action.
The new generation Terra Series w inches from SuperWinch are engineered specifically to meet the rugged demands of ATV and UTV enthusiasts. Available in 2500, 3500 and 4500 lbs. capacities with a choice of wire or synthetic rope, these powerful w inches have been redesigned and improved inside and out. Each Winch is loaded with a powerful motor, strong all steel gearing and a steel drum for superior performance and durability. All Terra Series w inches are equipped with a remotely mountable control box that houses a sealed solenoid and circuit breaker to ensure reliable operation. Free spool function is simple to manage with an easy to engage ergonomic control knob. Each Winch includes a 10' wired remote control and a handlebar mounted rocker switch for dependable control and maximum versatility. The Terra Series w inches have an IP67 rating for water and dust protection so they are always ready for action.
- Rated Line Pull Of 4500 Lbs
- Heavy-Duty Clevis Pinned Latched Hook
- 4 Way Roller Fairlead

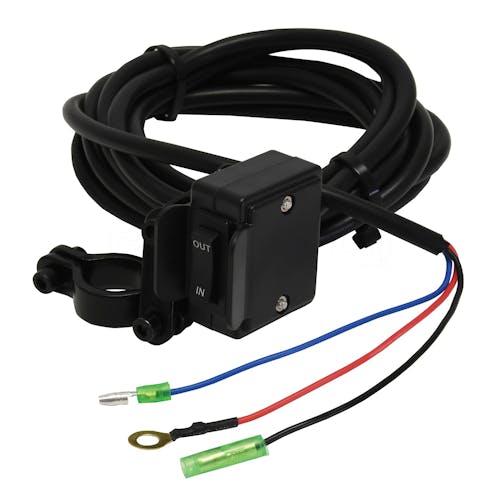

- 10 Ft. Rugged Remote Control With Handlebar Mounted Rocker Switch
- Narrow Drum Allows Easier Mounting In Tight Spaces
- Universal Mounting Plate
- Mounting Bolt Pattern 3 in. X 6.66 in.
- 1.8 Hp Permanent Magnetic Motor
- 3-Stage Planetary Gearing With 198:1 Ratio
- Sealed Solenoid With Circuit Breaker
- Easy To Engage Ergonomic Freespool Control Knob
- IP67 Protection From Water And Dust
| Attributes | |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Can Ship By Ground Delivery | Yes |
| Country of Origin (Primary) | CN |
| Finish/Color | Gray Wrinkle |
| Freight Class | 60 |
| GTIN | 00022705005616 |
| Harmonized Tariff Code (Schedule B) | 8708295170 |
| Hazardous Material Code | N |
| Hook | Heavy-Duty, Clevis Pinned Latched |
| Life Cycle Status Code | Available to Order |
| Marketing Status | New Product, Current |
| Mounting Bolt Pattern | 3.0in x 4.87in (76mm x 124mm) |
| NAFTA Preference Criterion Code | B |
| Rated Single Line Pull (Lbs) | 4500 |
| Rated Single Line Pull (lbs.) | 4500 |
| Rope Material | Steel Wire |
| SDR Required Flag | N |
| Superwinch WEB Title | Terra 4500 with Steel Wire Rope |
| Voltage | 12 DC |
| Warranty | Limited Lifetime Mechanical/3 Year Limited Electrical |
Superwinch 1145260 Terra Wire Rope Winch, Gray Wrinkle
Product Information
- Brand: Superwinch
- Product Number: 1145260
- Availability: Call for Availability at Main Warehouse
*Allow 2-3 business days to ship to your local H&H store. (In stock items only)
$369.99
Professional Installation +$187.50
