2007-2018 Jeep Wrangler JK

---

Superchips is proud to announce that our newest generation of electronic calibrator is a powerful combination of smartphone app and Bluetooth dongle to tap into a vehicle's OBD-II. Flashcal+ isn't another device to make a quick change and toss back on the shelf. Our engineers have provided the exceptionally fast Quick Options Superchips devices are known for and acts as a live interface to your Jeep's electronics for constant access to control and view data.

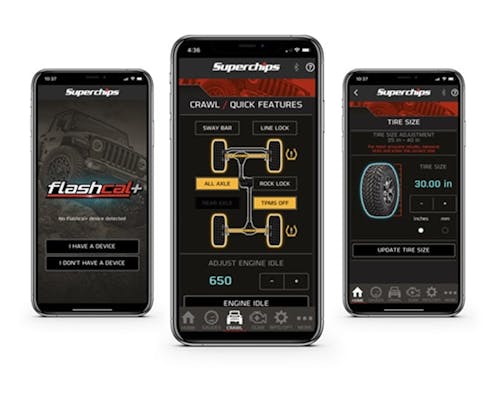

• Powerful combination of smartphone app and Bluetooth module, adding a new list of features to the traditional controls you've always counted on us for
• *It is not recommended to use Flashcal+ on a vehicle that has previously had tire size adjusted with a Tazer device
• Read/Clear Diagnostic Trouble Codes (DTCs)

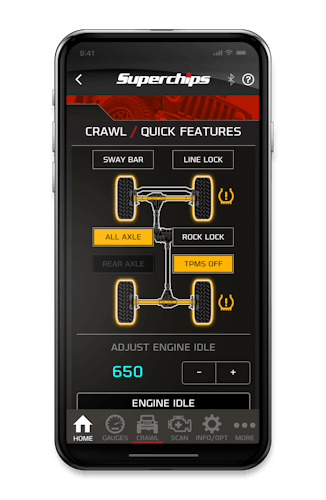

• CRAWL Screen (illustration above) acts as a live and on-the-fly interface: Front and Rear Differential Lock, TPMS Adjust, Engine RPM idle up (CRAWL features vary by year and trim level of vehicle)

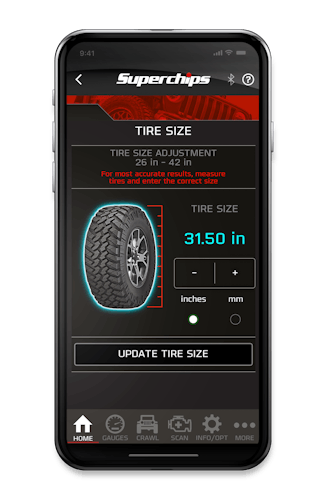

• Tire Size Wizard - Self-calibrates speedometer with your phone's GPS. No need to enter data manually, and you don't even have to get out of your Jeep. (You can still enter tire size by height the old-fashioned if you want.)
• Live Data Monitoring with customizable gauge display, as well as reading and clearing trouble codes (CELs)
• Service Options menu for home repairs: ABS Initialization, Brake Pedal Relearn, Cam/Crank Sync
• Reset modules option for ABS (anti-lock brakes), BCM (body control module), TPMS (tire pressure monitoring), and IPC (instrument panel cluster) modules
• Bluetooth connection from wireless dongle to Android or iPhone, and no wires to run
• Corrects speedometer for tire upgrades between 26”- 42”
• Speedometer recalibration for axle gear and T-case ratio, 2.73-5.38:1
• Axle Lock Rear w/ T-case in 4-Hi & 4-Low (CRAWL Screen, JK Rubicon only)
• Axle Lock Front & Rear w/ T-case in 4-Hi & 4-Low (CRAWL Screen, 3.8L JK Rubicon only)
• Engine idle up for winching, temporarily with CRAWL Screen, 500-2000 RPM

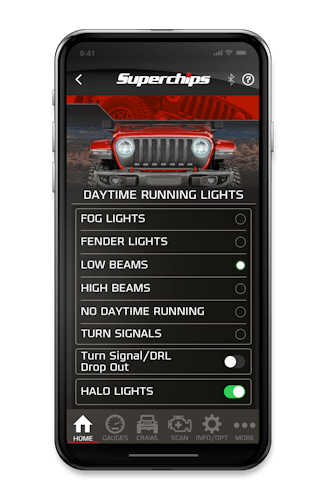

• Adjusts Daytime Running Light Location: Halo, Fender, Fog, High, Low, Turn Signal
• Daytime running light Enable/Disable
• Enables blinker one-touch lane change
• Optional TPMS Disable, while using CRAWL Screen or completely for use with aftermarket wheels
• Adjusts TPMS Threshold adjust 22-56 psi.

---

Information:

Holley Performance Emission Code 7: This part is legal under the provisions of EPA s memorandum 1A. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and EPA Memorandum 1A. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board; in order to achieve 50-state compliance; is pending with CARB. Once testing is complete with California; and an E.O. number is issued; this product will be updated to 50-state legal status

---

Application Summary:

Year	Make/Model
2007-2017	Jeep Wrangler
2018	Jeep Wrangler JK
