Gear Train: 3-Stage Planetary

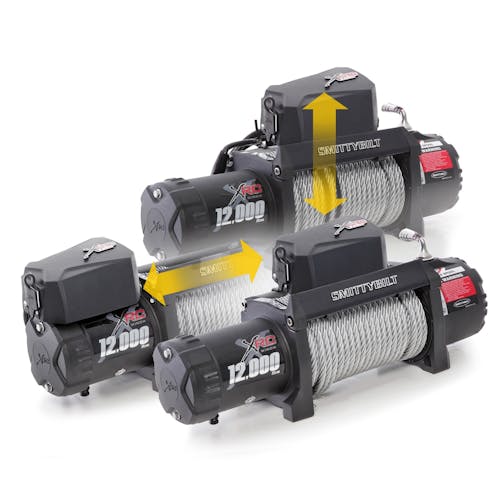

The new Smittybilt XRC winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranginging from 9,500lb to 17,500 lbs capacities, Smittybilt's XRC Series winches can handle any situation you can get into. Every XRC winch features a Series Wound 6.6 HP motor and a 3-Stage Planetary Gear System with revised gear ratios for increased pulling power and lightning-fast line speeds. Every winch is finished in a rugged UV-Resistant matte black coatingwith stainless steel hardware and oversized aluminum crossbars to provide you with a great looking system that will last you a lifetime. Every XRC winch includes a heavy duty winch controller, four-way roller fairlead, forged steel tow hook, and a redesigned solenoid box that can be mounted in 3 different positions for maximum versatility. If you're looking for a winch equipped with a synthetic winch rope, look to the XRC Comp Series for the ultimate in pulling power and performance. A Smittybilt XRC winch is a complete recovery system with the muscle and reliability to bail you out of any situation.
The new Smittybilt XRC winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranginging from 9,500lb to 17,500 lbs capacities, Smittybilt's XRC Series winches can handle any situation you can get into. Every XRC winch features a Series Wound 6.6 HP motor and a 3-Stage Planetary Gear System with revised gear ratios for increased pulling power and lightning-fast line speeds. Every winch is finished in a rugged UV-Resistant matte black coatingwith stainless steel hardware and oversized aluminum crossbars to provide you with a great looking system that will last you a lifetime. Every XRC winch includes a heavy duty winch controller, four-way roller fairlead, forged steel tow hook, and a redesigned solenoid box that can be mounted in 3 different positions for maximum versatility. If you're looking for a winch equipped with a synthetic winch rope, look to the XRC Comp Series for the ultimate in pulling power and performance. A Smittybilt XRC winch is a complete recovery system with the muscle and reliability to bail you out of any situation.
- Not Vehicle Specific
- Rated line pull 15
- 500lbs.
- 7
- 045kgs single-line
- Remote control included
- Motor 6.6hp Series Wound
- Recommended Battery 650CCA Minimum for Winching
- Control Remote Switch
- 12 ft.
- 3.7m lead
- Battery Leads 25mm
- 72 inch
- 1.83m
- Gear Train 3-Stage Planetary
- Gear Ratio 3971
- Black texture finish
- Waterproofing IP67 Rating
- Fairlead 4-Way Roller
Information:
Waterproofing: IP67 Rating;Fairlead: 4-Way Roller;Rated Line Pull: 15,500Lbs (7,045kgs) single-line;Remote Control: Included;Motor: 6.6hp Series Wound;Recommended Battery: 650CCA Minimum for Winching;Control: Remote Switch, 12' (3.7m) lead;Battery Leads: 25mm, 72(1.83m);Gear Train: 3-Stage Planetary;Gear Ratio: 397:1;Finish: Textured Black;Weight: 124.0Lbs (56.5Kgs);Clutch: Sliding Ring Gear Mounting;Bolt Pattern: 10.0 x 4.50;Brake: Automatic In-Drum;Overall Dimensions (L x W x H): 23.5 x 8.4 x10.7;Drum Size: Diameter 3.45 (88.0mm);Length: 10.0 (254mm);Cable: 93.5' 25/64 Diameter| Attributes | |
| AAP AgriculturalEquipment | N |
| AAP ApplicationSpecific | Y |
| AAP CarLightTruck | Y |
| AAP EngineSpecific | N |
| AAP FreightClass | 125 |
| AAP HeavyDutyTruck | N |
| AAP HighPerformance | N |
| AAP IndustrialOffHighwayEquipment | N |
| AAP Marine | N |
| AAP MediumDutyTruck | N |
| AAP MotorcycleOrATV | N |
| AAP NonVehicleSpecific | N |
| AAP PersonalWatercraft | N |
| AAP SellingPackageQty | 1 |
| AAP SellingPackageQtyUOM | EA |
| AAP SmallEngine | N |
| AAP Snowmobile | N |
| AAP TransmissionSpecific | N |
| ASIN | B00K150X3I |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) | CN |
| Emission Code | Legal US |
| Fitment | Universal Fit |
| GTIN | 00631410119497 |
| Hardware Included | Yes |
| Harmonized Tariff Code (Schedule B) | 8425310100 |
| Hazardous Material Code | N |
| Length | 23.5 |
| Life Cycle Status Code | Available to Order |
| Line Pull | 15500 |
| Line Type | Cable |
| Material | Steel |
| Mounting Hardware Included | Y |
| NAFTA Preference Criterion Code | B |
| Rated Single Line Pull (lbs.) | 15000 |
| SDR Required Flag | N |
| Type | Automotive |
| Voltage | NA |
| Warranty Time | 3 |
| Weight Capacity | 124 |

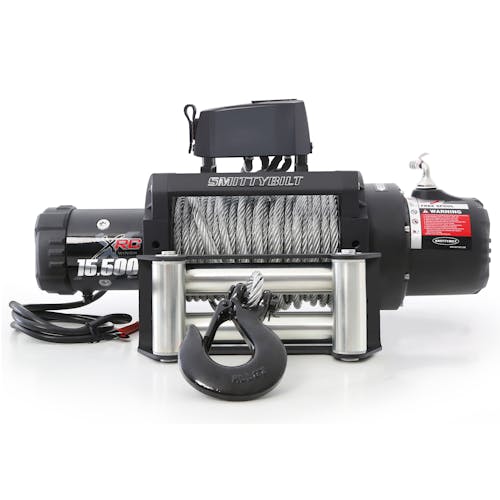

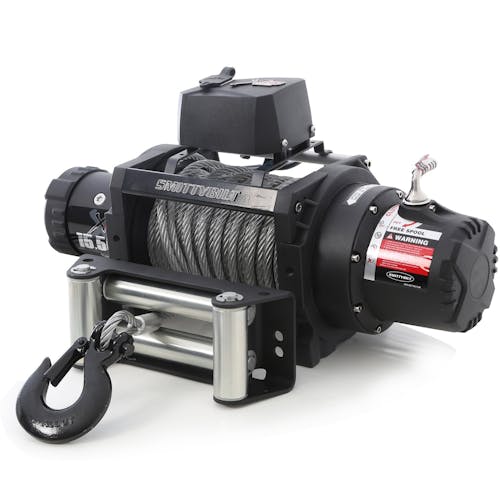

Smittybilt 97415 WINCH
Product Information
- Brand: Smittybilt
- Product Number: 97415
- Availability: Call for Availability
