Rough Country 28700A 7in GM Suspension Lift Kit (07-13 Sub./Yukon XL)
Rough Country 28700A 7in GM Suspension Lift Kit (07-13 Sub./Yukon XL)Rough Country 28700A 7in GM Suspension Lift Kit (07-13 Sub./Yukon XL)Rough Country 28700A 7in GM Suspension Lift Kit (07-13 Sub./Yukon XL)Rough Country 28700A 7in GM Suspension Lift Kit (07-13 Sub./Yukon XL)
Suspension Lift Kit; 7 in. Lift;
This all-inclusive kit ships with everything you need to get going and hit the mudholes. Featuring a set of beefy lifted knuckles and 1/4in thick steel front and rear high-clearance crossmembers, this kit offers plenty of muscle to handle hazards both on and off-road.A set of Lifted Coil Springs and Upper Strut Spacers provide plenty of ride height - enough to run up to a 33in tire on our 5in option, or a 35in tire on our 7in option. Both kits feature sway-bar links, shock extensions, brakeline brackets, a rough and tumble lower skid plate, and Grade 8 Hardware.Included sway-bar drop brackets and differential drop brackets help keep vehicle components properly aligned after lifting, providing a factory-like ride while boasting an aggressive stance.
  • Easy Bolt-On Installation
  • Increased Ground Clearance
  • Levels The Front w/The Rear Of The Vehicle
  • No Need To Disassemble Your Struts To Install

Information:

Does NOT fit Auto Ride or Auto Leveling models. Does NOT fit models with electric steering. AWD models will require driveline modifications (Must be converted to not be AWD). Minor cutting and drilling is required. 18in or larger wheels are required. Please view instructions for complete information on proper tire/wheel combinations.

Application Summary:

Year Make/Model
2007-2014 Chevrolet Suburban 1500
2007-2014 GMC Yukon XL 1500
Attributes
California Proposition 65 No
Country of Origin (Primary) US

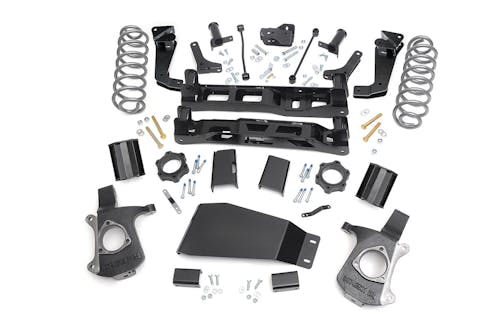

Front Components Lifted knuckles, Front crossmember, Rear crossmember, Upper strut spacers, Differential drop brackets, CV spacers, Sway-bar brackets, Lower skid plate, Brake line brackets, Hardware
Front Kit Components Lifted knuckles, Front crossmember, Rear crossmember, Upper strut spacers, Differential drop brackets, CV spacers, Sway-bar brackets, Lower skid plate, Brake line brackets, Hardware
GTIN 00843030140595
Harmonized Tariff Code (Schedule B) 8708809900
Hazardous Material Code N
Install Time 8-10 hours
Life Cycle Status Code Available to Order
Lift/Drop Height 7 in.
NAFTA Preference Criterion Code B
Rear Components Lifted coil springs, Sway-bar links, Track bar bracket, Shock extensions, Hardware
Rear Kit Components Lifted coil springs, Coil spring spacers, Sway-bar links, Track bar bracket, Shock extensions, Hardware
SDR Required Flag N
Tire & Wheel Size Combinations 315/70R17 on 17x9 with +12 to +18 offset, 295/70R18 on Factory 18 (Factory 18in & 20in wheels can be run but require .25in wheel spacers with 295 tires and models equipped with Factory 18-inch or larger wheels must run 18-inch or larger wheels if changing to aftermarket wheels), 315/65R18 on 18x9 with +12 to +18 offset (Models equipped with Factory 18-inch or larger wheels must run 18-inch or larger wheels if changing to aftermarket wheels), 295/60R20 on Factory 20 (Factory 18in & 20in wheels can be run but require .25in wheel spacers with 295 tires and models equipped with Factory 18-inch or larger wheels must run 18-inch or larger wheels if changing to aftermarket wheels), 315/55R20 on 20x9 with +12 to +18 offset (Models equipped with Factory 18-inch or larger wheels must run 18-inch or larger wheels if changing to aftermarket wheels)
Tire, Wheel, and Offset Info 295 70R18:Factory 18:6x5.5:-:0.25 Spacer; 295 60R20:Factory 20:6x5.5:-:0.25 Spacer; 33x12.50R18:18x8.5:6x5.5:+0:-; 305 65R18:18x8.5:6x5.5:+0:-; 33x12.50R18:18x8.5:6x5.5:+1:-; 305 65R18:18x8.5:6x5.5:+1:-; 35x12.50R18:18x9:6x5.5:+0:Minor Trimming; 33x12.50R18:18x9:6x5.5:+0:-; 305 65R18:18x9:6x5.5:+0:-; 35x12.50R18:18x9:6x5.5:+1:Minor Trimming; 33x12.50R18:18x9:6x5.5:+1:-; 305 65R18:18x9:6x5.5:+1:-; 285 75R18:18x9:6x5.5:+12:-; 35x12.50R18:18x9:6x5.5:+18:Minor Trimming; 33x12.50R18:18x9:6x5.5:+18:-; 305 65R18:18x9:6x5.5:+18:-; 285 75R18:18x9:6x5.5:+18:-; 35x12.50R18:18x9:6x5.5:+19:Minor Trimming; 35x12.50R18:18x9:6x5.5:+20:Minor Trimming; 33x12.50R18:18x9:6x5.5:+20:-; 305 65R18:18x9:6x5.5:+20:-; 35x12.50R20:20x9:6x5.5:+0:-; 33x12.50R20:20x9:6x5.5:+0:-; 305 55R20:20x9:6x5.5:+0:-; 295 60R20:20x9:6x5.5:+0:-; 35x12.50R20:20x9:6x5.5:+1:Minor Trimming; 33x12.50R20:20x9:6x5.5:+1:-; 305 55R20:20x9:6x5.5:+1:-; 295 60R20:20x9:6x5.5:+1:-; 295 65R20:20x9:6x5.5:+12:-; 35x12.50R20:20x9:6x5.5:+18:Minor Trimming; 33x12.50R20:20x9:6x5.5:+18:-; 305 55R20:20x9:6x5.5:+18:-; 295 65R20:20x9:6x5.5:+18:-; 295 60R20:20x9:6x5.5:+18:-; 35x12.50R20:20x9:6x5.5:+20:Minor Trimming; 33x12.50R20:20x9:6x5.5:+20:-; 305 55R20:20x9:6x5.5:+20:-; 295 60R20:20x9:6x5.5:+20:-; 295 60R20:20x10:6x5.5:-19:Minor Trimming; 295 60R20:20x10:6x5.5:-18:Minor Trimming

Rough Country 28700A 7in GM Suspension Lift Kit (07-13 Sub./Yukon XL)

Product Information

  • Brand: Rough Country
  • Product Number: 28700A
  • Availability: Call for Availability at Main Warehouse
    *Allow 2-3 business days to ship to your local H&H store. (In stock items only)

  • $1,199.95

Install with Alignment +$930.00
