6 Inch Lift Kit - Chevy Silverado & GMC Sierra 1500 4WD (1999-2006 & Classic)
We've raised the bar on our 6 NTD suspension for '99 - '06 Chevy/GMC 1500 pickups! Gain greater clearance, better handling, and the cleanest looking 6-inch lift available! A set of lifted front knuckles and 6.25in rear fabricated, anti-wrap blocks allow your 1500 to run up to 35in tires, while a full set of high clearance drop crossmembers, differential drop brackets and non torsion bar drop brackets keep everything tucked, hidden, and at optimum angles. This fully loaded suspension lift also includes a set of (4) Premium N3 Shocks, front CV spacers, sway-bar links, and a protective skid plate to give you everything you need to get rolling in one of our best kits, now at our best price ever!
- Will work with Auto Trac
Information:
Manufacturer: Rough Country Suspension Systems; Part Number: 27220A; Weight (Lbs): 217.38; Install Time (Hours): 8-10; Wheel Backspacing (Inches): 4.5; Recommended Tire Size: 35-by-12.50
Application Summary:
| Year | Make/Model |
|---|---|
| 1999-2007 | Chevrolet Silverado 1500 |
| 2007 | Chevrolet Silverado 1500 Classic |
| 2001-2003 | Chevrolet Silverado 1500 HD |
| 2005-2006 | Chevrolet Silverado 1500 HD |
| 2007 | Chevrolet Silverado 1500 HD Classic |
| 2007 | GMC Sierra |
| 1999-2006 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 2001-2003 | GMC Sierra 1500 HD |
| 2005-2006 | GMC Sierra 1500 HD |
| 2007 | GMC Sierra 1500 HD Classic |
| Attributes | |
| California Proposition 65 | No |
| Country of Origin (Primary) | US |

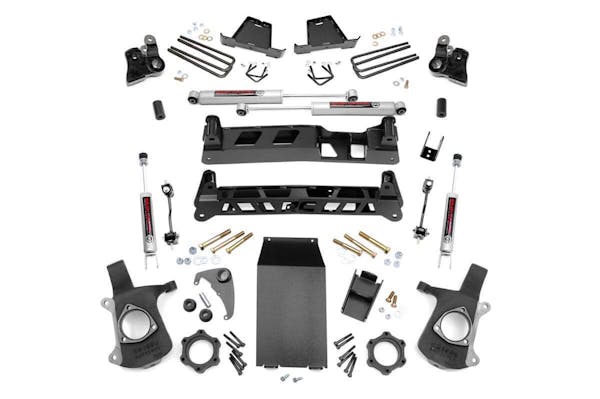

| Front Components | Lifted knuckles, Front crossmember, Rear crossmember, Non-torsion bar drop brackets, Differential drop brackets, Sway-bar links, CV spacers, Skid plate, Hardware |
| Front Kit Componenets | Lifted knuckles, Front crossmember, Rear crossmember, Non-torsion bar drop brackets, Differential drop brackets, Sway-bar links, CV spacers, Skid plate, Hardware |
| Front Kit Components | Lifted knuckles, Front crossmember, Rear crossmember, Non-torsion bar drop brackets, Differential drop brackets, Sway-bar links, CV spacers, Skid plate, Hardware |
| GTIN | 00843030124199 |
| Hazardous Material Code | N |
| Install Time | 8 - 10 hours |
| Life Cycle Status Code | Available to Order |
| Lift/Drop Height | 6 in. |
| NAFTA Preference Criterion Code | B |
| Rear Components | 6.25in fabricated lift blocks, U-bolts, Hardware |
| Rear Kit Components | 6.25in Fabricated Lift Blocks, U-Bolts, Hardware |
| SDR Required Flag | N |
| Tire & Wheel Size Combinations | 315/55 R20 - 20x9, Backspacing/Offset: 5in/0mm (If using wheels with -12mm Offset or 4.5-inch Backspacing, some minor inner fender trimming will be required), 315/55 R20 - 20x9, Backspacing/Offset: 5in/0mm (If using wheels with -12mm Offset or 4.5-inch Backspacing, some minor inner fender trimming will be required) |
| Tire, Wheel, and Offset Info | 315/75R16:16x8:6x5.5:-6; 305/70R17:17x8.5:6x5.5:-12; 285/75R17:17x8.5:6x5.5:-12; 35x12.50R17:17x8.5:6x5.5:+0; 285/75R17:17x8.5:6x5.5:+0; 35x12.50R17:17x8.5:6x5.5:+1; 35x12.50R17:17x9:6x5.5:-12; 33x12.50R17:17x9:6x5.5:-12; 285/75R17:17x9:6x5.5:-12; 35x12.50R17:17x9:6x5.5:+0; 33x12.50R17:17x9:6x5.5:+0; 285/75R17:17x9:6x5.5:+0; 35x12.50R17:17x9:6x5.5:+1; 33x12.50R17:17x9:6x5.5:+1; 315/70R17:17x9:6x5.5:+1; 285/75R17:17x9:6x5.5:+1; 35x12.50R18:18x8.5:6x5.5:+0; 35x12.50R18:18x8.5:6x5.5:+1; 35x12.50R18:18x9:6x5.5:-12; 285/75R18:18x9:6x5.5:-12; 285/70R18:18x9:6x5.5:-12; 275/75R18:18x9:6x5.5:-12; 35x12.50R18:18x9:6x5.5:+0; 285/75R18:18x9:6x5.5:+0; 285/70R18:18x9:6x5.5:+0; 275/75R18:18x9:6x5.5:+0; 35x12.50R18:18x9:6x5.5:+1; 295/70R18:18x9:6x5.5:+1; 285/75R18:18x9:6x5.5:+1; 285/70R18:18x9:6x5.5:+1; 275/75R18:18x9:6x5.5:+1; 35x12.50R18:18x10:6x5.5:-24:Trimming Required; 35x12.50R20:20x9:6x5.5:-12; 33x12.50R20:20x9:6x5.5:-12; 305/55R20:20x9:6x5.5:-12; 295/60R20:20x9:6x5.5:-12; 285/60R20:20x9:6x5.5:-12; 275/65R20:20x9:6x5.5:-12; 35x12.50R20:20x9:6x5.5:+0; 33x12.50R20:20x9:6x5.5:+0; 305/55R20:20x9:6x5.5:+0; 295/65R20:20x9:6x5.5:+0; 295/60R20:20x9:6x5.5:+0; 285/60R20:20x9:6x5.5:+0; 275/65R20:20x9:6x5.5:+0; 35x12.50R20:20x9:6x5.5:+1; 33x12.50R20:20x9:6x5.5:+1; 305/55R20:20x9:6x5.5:+1; 295/65R20:20x9:6x5.5:+1; 295/60R20:20x9:6x5.5:+1; 285/60R20:20x9:6x5.5:+1; 275/65R20:20x9:6x5.5:+1; 35x12.50R20:20x10:6x5.5:-25:, Trimming Required; 33x12.50R20:20x10:6x5.5:-25; 305/55R20:20x10:6x5.5:-25; 295/65R20:20x10:6x5.5:-25:Minor Trimming; 295/60R20:20x10:6x5.5:-25; 285/60R20:20x10:6x5.5:-25:Minor Trimming; 275/65R20:20x10:6x5.5:-25; 35x12.50R20:20x10:6x5.5:-24:Trimming Required; 33x12.50R20:20x10:6x5.5:-24; 305/55R20:20x10:6x5.5:-24; 295/65R20:20x10:6x5.5:-24:Minor Trimming; 295/60R20:20x10:6x5.5:-24; 285/60R20:20x10:6x5.5:-24:Minor Trimming; 275/65R20:20x10:6x5.5:-24; 35x12.50R20:20x10:6x5.5:-19:Trimming Required; 33x12.50R20:20x10:6x5.5:-19; 305/55R20:20x10:6x5.5:-19; 295/65R20:20x10:6x5.5:-19:Minor Trimming; 295/60R20:20x10:6x5.5:-19; 285/60R20:20x10:6x5.5:-19:Minor Trimming; 275/65R20:20x10:6x5.5:-19; 35x12.50R20:20x10:6x5.5:-18:Trimming Required; 33x12.50R20:20x10:6x5.5:-18; 305/55R20:20x10:6x5.5:-18; 295/65R20:20x10:6x5.5:-18:Minor Trimming; 295/60R20:20x10:6x5.5:-18; 285/60R20:20x10:6x5.5:-18:Minor Trimming; 275/65R20:20x10:6x5.5:-18; 35x12.50R20:20x12:6x5.5:-44:Trimming Required; 33x12.50R20:20x12:6x5.5:-44:Trimming Required; 305/55R20:20x12:6x5.5:-44:Minor Trimming; 295/65R20:20x12:6x5.5:-44:Trimming Required; 35x12.50R22:22x10:6x5.5:-25:Trimming Required; 33x12.50R22:22x10:6x5.5:-25; 295/55R22:22x10:6x5.5:-25; 295/50R22:22x10:6x5.5:-25:Minor Trimming; 35x12.50R22:22x10:6x5.5:-24:Trimming Required; 35x12.50R22:22x10:6x5.5:-19:Trimming Required; 33x12.50R22:22x10:6x5.5:-19; 295/55R22:22x10:6x5.5:-19; 295/50R22:22x10:6x5.5:-19:Minor Trimming; 35x12.50R22:22x10:6x5.5:-18:Trimming Required; 35x12.50R22:22x12:6x5.5:-44:Trimming Required; 33x12.50R22:22x12:6x5.5:-44:Trimming Required; 295/55R22:22x12:6x5.5:-44:Trimming Required |
Rough Country 27220A 6-inch Non-Torsion Drop Suspension Lift Kit
Product Information
- Brand: Rough Country
- Product Number: 27220A
- Availability: 3 in stock at Main Warehouse
*Allow 2-3 business days to ship to your local H&H store. (In stock items only)
