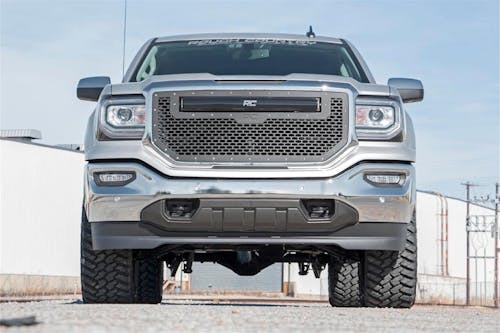

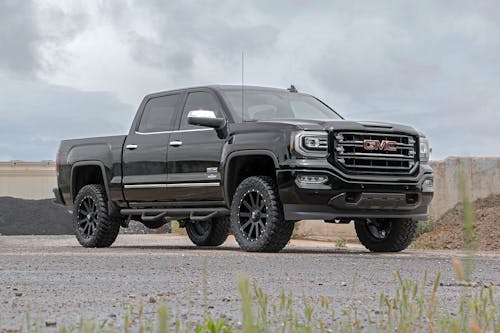

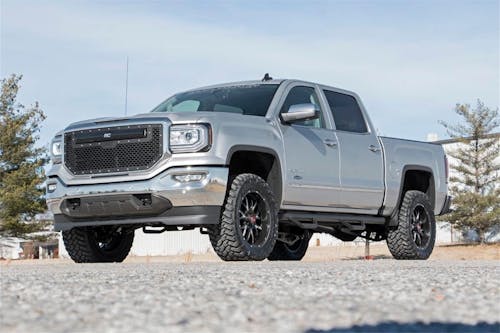

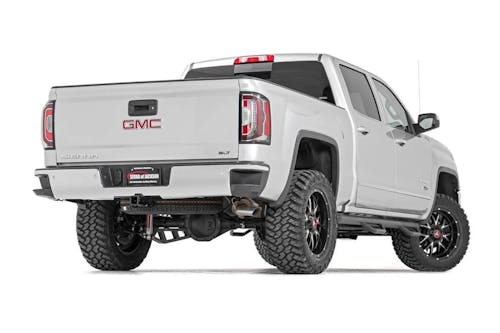

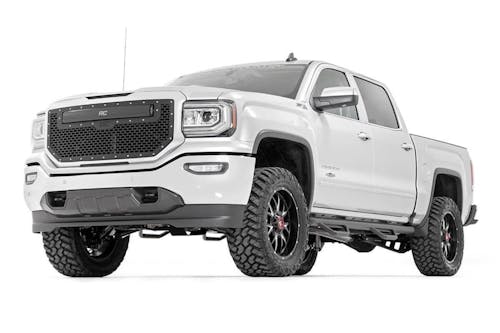

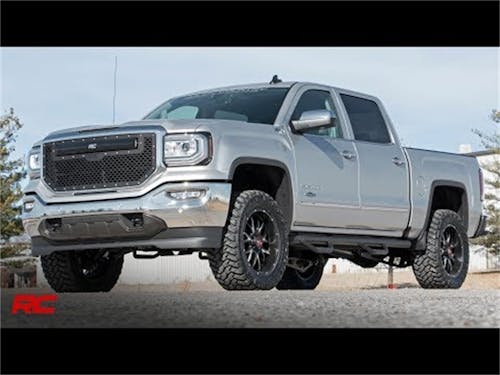

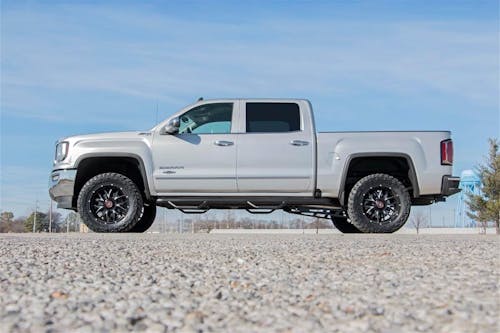

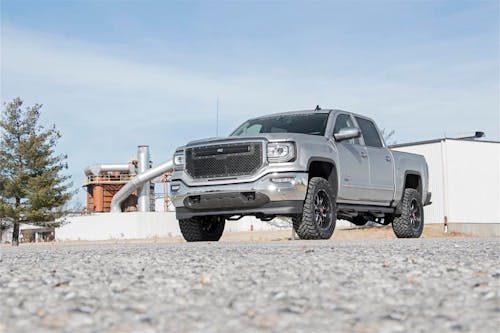

3.5 Inch Lift Kit - Alum/Stamp Steel LCA - Chevy/GMC 1500 (14-18)

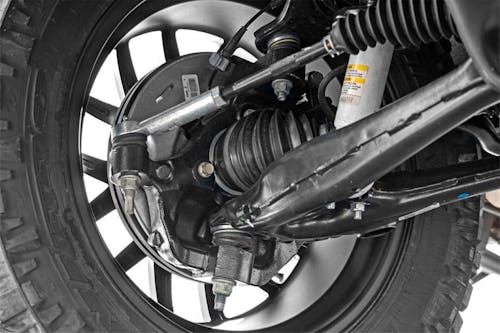

If you're looking for not-too-tall and not-too-small, Rough Country's 3.5 Lifted Knuckle kit is the perfect option for increased ground clearance and aggressive good looks! This all-inclusive kit features everything you need for a stunning, new appearance and enhanced off-road action, with a host of features designed to promote an incredible suspension geometry and ride quality!Rough Country's 3.5-inch kit features a set of lifted knuckles allowing you to lift your vehicle in the best possible way. Other kits only replace your upper control arms which can leave your CV boot prone to damage by making contact with the lower arms. Rough Country's innovative, lifted knuckle design gives you plenty of clearance to keep your CV out of harm's way while promoting a better upper arm ball joint angle and better ride quality to boot.This kit includes Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. Also included in this kit are a set of fabricated rear blocks that are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.Includes a Lifetime Replacement Guarantee!
- Retains facotry suspension components
Information:
Est. Install Time: 4-6 hours
Application Summary:
| Year | Make/Model |
|---|---|
| 2014-2018 | Chevrolet Silverado 1500 |
| 2014-2018 | GMC Sierra |
| 2014-2018 | GMC Sierra 1500 |
| Attributes | |
| California Proposition 65 | No |
| Country of Origin (Primary) | US |
| Front Components | Strut spacers, Lifted knuckles, Differential drop spacers, Differential skid plate, Hardware |
| Front Kit Componenets | Strut spacers, Lifted knuckles, Differential drop spacers, Differential skid plate, Hardware |
| Front Kit Components | Strut spacers, Lifted knuckles, Differential drop spacers, Differential skid plate, Hardware |
| GTIN | 00843030144579 |
| Hazardous Material Code | N |
| Install Time | 4-5 hours |
| Life Cycle Status Code | Available to Order |
| Lift/Drop Height | 3.5 in. |
| NAFTA Preference Criterion Code | B |
| Rear Components | 3in fabricated lift blocks, U-bolts, Hardware |
| Rear Kit Components | 3in Fabricated Lift Blocks, U-Bolts, Hardware |
| SDR Required Flag | N |
| Tire & Wheel Size Combinations | 285/55 R20 - 20x9, Offset: 0 to +18mm, 285/55 R20 - 20x9, Offset: 0 to +18mm |
| Tire, Wheel, and Offset Info | 285/70R17:Factory 17:6x5.5:-:0.25 Spacer; 285/65R18:Factory 18:6x5.5:-:0.25 Spacer; 285/55R20:Factory 20:6x5.5:-:0.25 Spacer; 285/70R17:17x8.5:6x5.5:+0:-; 285/70R17:17x8.5:6x5.5:+1:-; 285/70R17:17x9:6x5.5:+0:-; 285/70R17:17x9:6x5.5:+1:-; 285/70R17:17x9:6x5.5:+18:-; 285/70R17:17x9:6x5.5:+20:-; 285/65R18:18x8.5:6x5.5:+0:-; 285/65R18:18x8.5:6x5.5:+1:-; 285/65R18:18x9:6x5.5:+0:-; 265/65R18:18x9:6x5.5:+0:-; 285/65R18:18x9:6x5.5:+1:-; 265/65R18:18x9:6x5.5:+1:-; 285/65R18:18x9:6x5.5:+18:-; 265/65R18:18x9:6x5.5:+18:-; 285/65R18:18x9:6x5.5:+19:-; 265/65R18:18x9:6x5.5:+19:-; 285/65R18:18x9:6x5.5:+20:-; 265/65R18:18x9:6x5.5:+20:-; 285/55R20:20x9:6x5.5:+0:-; 285/55R20:20x9:6x5.5:+1:-; 285/55R20:20x9:6x5.5:+18:-; 285/55R20:20x9:6x5.5:+20:- |
Rough Country 12130 3.5in GM Suspension Lift / Knuckle Kit (14-18 1500 PU 4wd)
Product Information
- Brand: Rough Country
- Product Number: 12130
- Availability: 5 in stock at Main Warehouse
*Allow 2-3 business days to ship to your local H&H store. (In stock items only)
$569.95
