Front Track Bar - Ford Super Duty 4WD For 0-5" Lift 2017-2023

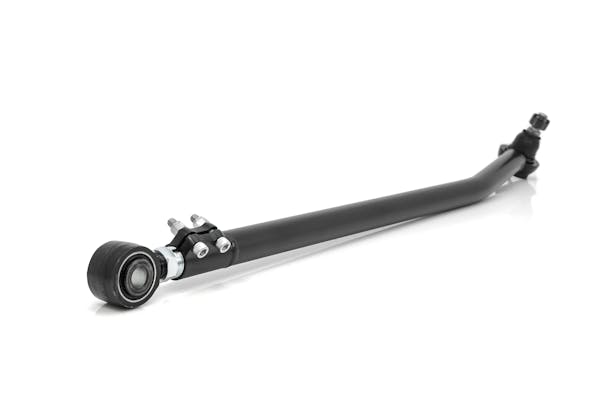

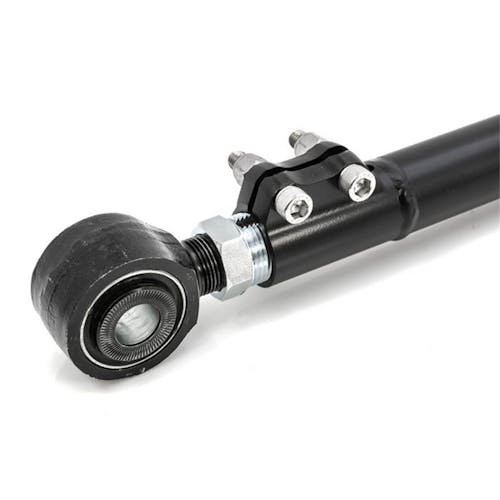

ReadyLIFT offers an adjustable heavy-duty front track bar for the 2017-2023 Ford Super Duty F250/F350 4WD trucks (does NOT fit F450) with 0 to 5 inches of front lift. Our all-new 77-2006 (2017-2023) Super Duty track bar is extremely strong and provides a wide range of solutions to remedy many of the common issues with lifted or leveled F250/F350 4WD trucks. The 77-2006 track bar is constructed from thick 1.5"-3/8-wall DOM tube steel with CNC-machined 4140 Chromoly ends. On the frame side of the bar we include a threaded forged housing with a maintenance-free heavy-duty bushing that screws into a twin-pinch on-truck adjuster. This design allows you to adjust either ReadyLIFT track bar to the desired length on the vehicle. On the axle side, our 2017-2022 #77-2006 track bar features a heavy-duty Moog ball joint with a corrected angle that works excellently on stock, leveled or lifted (up to 5") trucks. This exciting new front track bar is engineered to be a direct bolt-on replacement for Super Duty trucks with 0"-5" of lift. For trucks with 6"-8" of lift, these track bars will work when using a track bar relocation bracket which is found in our ReadyLIFT 6.5" and 8" lift kits.
- Heavy duty front track bar designed for 20172023 Super Duty F250/350 4WD trucks
- Considered the strongest solution on the market for front track bars
- Note: Not compatible with F450 Super Duty trucks.
- Heavy duty front track bar designed for 2017 Heavy duty front track bar designed for 20172023 Super Duty F250/350 4WD trucks
- Made in the USA with 1.5"" 3/8"" Made in the USA with 1.5"" 3/8""wall DOM tube steel for maximum strength
- Features a twin Features a twinpinch adjuster for easy ontruck adjustments
- Includes a heavy Includes a heavyduty Moog ball joint for added strength and reliability
- Compatible with trucks with 0" to 5" of front lift
- Made in the USA with 1.5" 3/8"wall DOM tube steel for maximum strength
- CNC machined 4140 ends for precision and durability
- Features a twinpinch adjuster for easy ontruck adjustments
- Includes a heavyduty Moog ball joint for added strength and reliability
Application Summary:
| Year |
Make/Model |
| 2017-2025 |
Ford F-250 Super Duty |
| 2017-2025 |
Ford F-350 Super Duty |
| Attributes |
| Adjustable |
Yes |
| Ball Joint Included |
Yes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color |
Black |
| Country of Origin (Primary) |
US |
| Fitment |
Direct Fitment, Direct Fitment |
| GTIN |
00194933071531 |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708801600 |
| Hazardous Material Code |
N |
| Install Difficulty |
Intermediate Requires some Automotive knowledge, Intermediate Requires some Automotive knowledge |
| Installation Time |
2 Hours, 2 Hours |
| Life Cycle Status Code |
Available to Order |
| Material |
Tube Steel, Tube Steel |
| NAFTA Preference Criterion Code |
B |
| SDR Required Flag |
N |
| Whats Included |
Adjustable Track Bar, Adjustable Track Bar |
