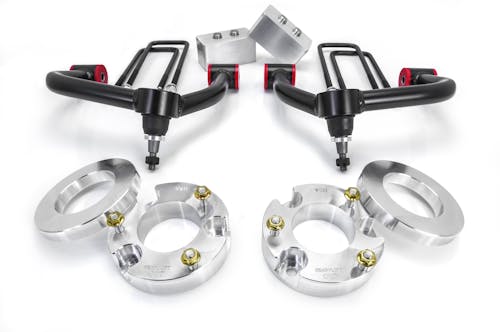

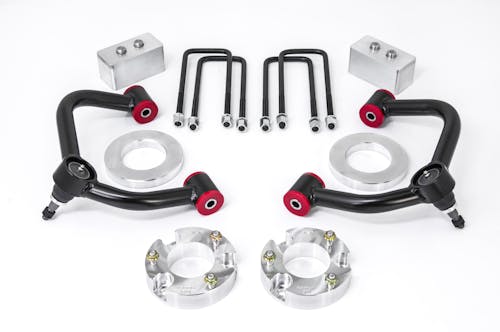

3.5" SST Lift Kit - Ford F-150 2015-2020
The 3.5" of lift height is achieved using our unique offset top mount spacer design. These CNC-machined billet aerospace-grade Aluminum lift spacers feature a unique offset bolt design engineered to position the strut into the stock position. This translates into proper suspension clearance and guarantees your truck will ride like it was stock. Additionally, we include a machined billet pre-load spacer that installs between the top of the spring and the bottom of the strut hat to pre-load the spring. This also acts as a droop limiter which insures CV axles durability on 4WD models without exceeding the CV limits which works well within the OEM tolerances. To lift the rear we include OEM style 3" tall cast rear lift blocks with built in bump stop landing pads. These blocks include dual locator pins.. For trucks with a two-piece driveshaft, we also include a carrier bearing spacer - All of this contributes to an excellent driving and handling suspension system that truly upgrades your Ford F-150 truck! NOTE: Not for use on trucks that are factory pre-lifted/leveled or that have the "off-road package". Check factory height prior to ordering or installing. Trucks with more than 22" of wheel hub to fender lip height may require less lift.
- Fits 20152020 Ford F150 2WD/4WD
- Includes OEM style rear blocks for correct driveshaft angle
- Solid Mount and even load distribution
- Will not deform or change shape
- No cutting of OEM parts or welding required
- Maintains factory ride
- All necessary components included in the box
- Allows for up to 35" tall tires
- Limited lifetime warranty
- Not for use on factory prelifted/leveled trucks or those with the "offroad package
- Check factory height before ordering or installing
- Fits 2015 Fits 20152020 Ford F150 2WD/4WD
- Not for use on factory pre Not for use on factory prelifted/leveled trucks or those with the ""offroad package""
- Compatible with 1 and 2 piece driveshaft
- Includes strong tubular steel Control Arms with heavy duty ball joints
Application Summary:
| Year |
Make/Model |
| 2014-2019 |
Ford F-150 |
| Attributes |
| ASIN |
B01KBPX5P0 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| Fitment |
Direct Fitment, Direct Fitment |
| Front Lift Component |
Spacer, Spacer |
| Front Lift Height |
3.5 Inches, 3.5 Inches |
| Front or Rear |
Front and Rear, Front and Rear |
| GTIN |
00804879561682 |
| Harmonized Tariff Code (Schedule B) |
8708801600 |
| Hazardous Material Code |
N |
| Install Difficulty |
Difficult Requires Professional Installation, Difficult Requires Professional Installation |
| Installation Time |
5+ Hours, 5+ Hours |
| Life Cycle Status Code |
Available to Order |
| Lift/Drop Height |
3.5 in. |
| Lift/Drop Height (in.) |
3.5 |
| Max Tire Size |
35 Inch, 35 Inch |
| NAFTA Preference Criterion Code |
B |
| Rear Lift Component |
Block and U-bolt, Block and U-bolt |
| Rear Lift Height |
2 Inches, 2 Inches |
| SDR Required Flag |
N |
| Shocks Included |
No |
