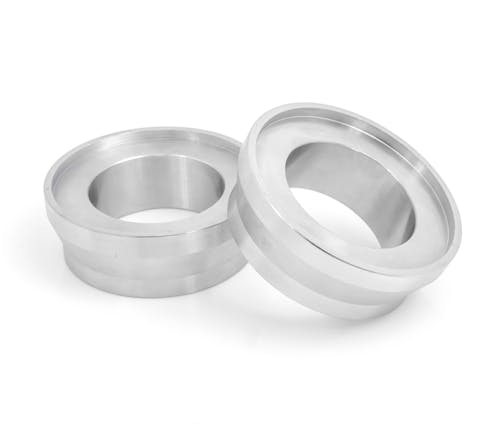

2" Pre-Load Spacer Front Leveling Kit - Ram 1500 2WD/ 4WD 2019-2023
For use on New body style Ram 1500 4WD. Not for use on Classic body style Ram 1500. ReadyLIFT offer several different leveling and lift solutions to properly enhance the stance and driving quality of the 2019-2023 Ram 1500 truck 4WD. Like the body design, the suspension design of the 2019-2023 Ram 1500 4WD features some unique design elements that differ from the previous generation Ram. These differences were tackled by our engineers as a result, we now offer a CNC machined billet aluminum construction leveling kit to properly level these Ram 1500 4WD trucks. The 66-1920 kit provides 2" of front leveling lift. The 2019-2023 Ram 1500 now comes with a composite upper control arm with a sheet metal cover. Our engineers determined the stresses around the ball joint would be too great for a traditional strut extension leveling kit. We have chosen to tap into our popular strut spring pre-load spacer design which generates lift without putting undo stress on critical areas like the ball joint. Our 66-1920 2" front leveling kit will get the job done right and affordably. This kit requires a spring compressor to install. NOTE: Use of pre-load spacer technology to achieve front lift is safe and effective; however, this method will deliver a firmer ride than the factory tuning. For customers wishing to maintain factory ride and handling, ReadyLIFT recommends top spacer leveling kit #66-1921.
- 2 inch leveling kit for 20192023 Ram 1500 (including Rebel)
- Not compatible with the classic body style Ram 1500
- Front preload spring spacer kit included (may affect ride)
- Not suitable for use on trucks with airsuspension
- CNC machined billet Aluminum construction for durability
- Made in the USA
- Maximum recommended tire size: 285/6520 on 20x9 +18 wheels
- Not recommended for use on factory prelifted/leveled trucks or those with the "offroad package."
- 2 inch leveling kit for 2019 2 inch leveling kit for 20192023 Ram 1500 (including Rebel)
- Front pre Front preload spring spacer kit included (may affect ride)
- Not suitable for use on trucks with air Not suitable for use on trucks with airsuspension
- Maximum recommended tire size: 285/65 Maximum recommended tire size: 285/6520 on 20x9 +18 wheels
- Not recommended for use on factory pre Not recommended for use on factory prelifted/leveled trucks or those with the ""offroad package."""
- Compatible with both 2WD and 4WD models
- Specifically designed for use on the new body style Ram 1500 4WD
Application Summary:
| Year |
Make/Model |
| 2019-2025 |
Ram 1500 |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| Fitment |
Direct Fitment, Direct Fitment |
| Front Lift Component |
Spacer, Spacer |
| Front Lift Height |
2 Inches, 2 Inches |
| Front or Rear |
Front, Front |
| GTIN |
00804879609827 |
| Harmonized Tariff Code (Schedule B) |
8708801600 |
| Hazardous Material Code |
N |
| Install Difficulty |
Difficult Requires Professional Installation, Difficult Requires Professional Installation |
| Installation Time |
1 Hour, 1 Hour |
| Life Cycle Status Code |
Available to Order |
| Lift/Drop Height |
2 in. |
| Max Tire Size |
33 Inch, 33 Inch |
| NAFTA Preference Criterion Code |
B |
| SDR Required Flag |
N |
| Shocks Included |
No |
