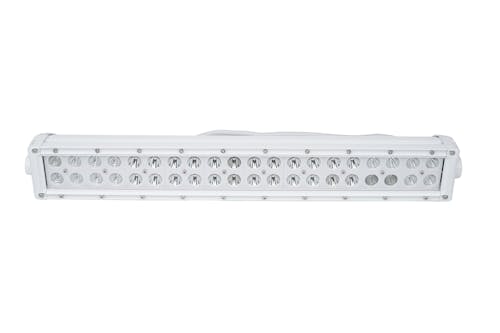

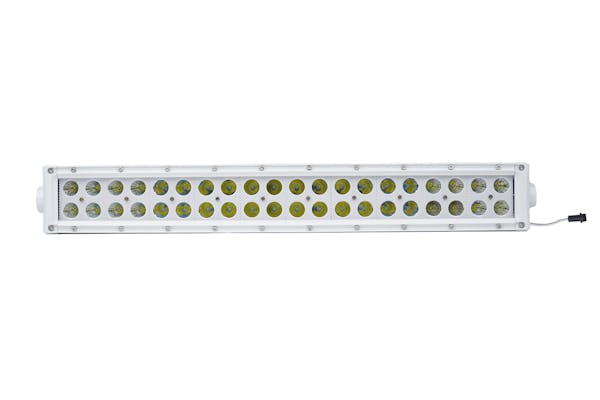

22.25 inch Marine Grade Dual Row Straight Light Bar with 120-Watt 40 x 3W High Intensity LEDs
The NEW Marine Sport LED Light Bars are a revolutionary way to contour light bars and high power light output to any surface area with a straight or curve appeal. The light bars are designed for Marine use, but can also be used in Automotive, UTV, ATV, Industrial applications where a white colored shell is desired. To make these bars even more attractive, Race Sport uses a white facing tile instead of the common chrome tiles to give this a TRUE WHITE OUT look! - We use durable and long lasting CREE 3-watt diodes in these bars and recess them in our long throw opticals for a maximum performance and light output!
The NEW Marine Sport LED Light Bars are a revolutionary way to contour light bars and high power light output to any surface area with a straight or curve appeal. The light bars are designed for Marine use, but can also be used in Automotive, UTV, ATV, Industrial applications where a white colored shell is desired. To make these bars even more attractive, Race Sport uses a white facing tile instead of the common chrome tiles to give this a TRUE WHITE OUT look! - We use durable and long lasting CREE 3-watt diodes in these bars and recess them in our long throw opticals for a maximum performance and light output!
- 22.25 inch Marine Grade Dual Row Straight Light Bar
- 120-Watt 40 x 3W High Intensity CREE LEDs
- Operating Voltage: 9-30V DC
- Waterproof Rate to 1m: IP67
- Kelvin( Color Temperature): 6000K - Diamond Whiter color
- Lens material: PC
- Optional Beam: Flood / Spot / Combo
- Optional Color: Black
- Material: Aluminum alloy painting

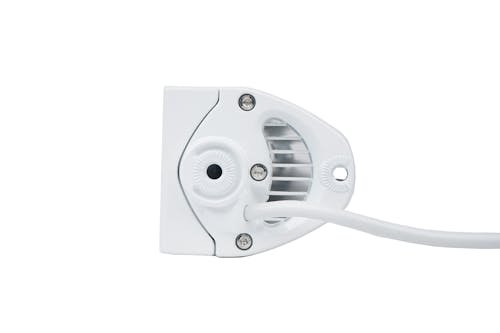

- Mounting Bracket: Aluminum firm bracket
- 50000+ hours life-span
- 22.25in End-to-End
- 20.0in Lens Width Area
- 23.50in Mounting Hole to Mounting Hole
- 3.0in Height
- 3.5in Depth
- * Note: MSLBWAH Wire harness and switch sold separatetly-This is optional part if not hard wiring for installation.
| Attributes | |
| AAP Selling Package Quantity | 1 |
| AAP Selling Package Quantity UOM | EA |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 65 |
| Alternate Part Number | MS120WWDS |
| Beam Pattern | Combo |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Chip Type | CREE |
| Country of Origin (Primary) | CN |
| Current Draw | 9.5A |
| Estimated Install Time | 1 Hour |
| Exportable | Yes |
| Freight Class | 65 |
| GTIN | 00817999028638 |
| HAZMAT Item | No |
| Harmonized Tariff Code (Schedule B) | 8512202080 |
| Hazardous Material Code | N |
| IP Rating | IP67 |
| Kelvin (Color Temperature) | White |
| Lead Time AVG | 1 |
| Life Cycle Status Code | Available to Order |
| Life Expectancy | 50,000 hours |
| Lumens | 8,400lm |
| NAFTA Preference Criterion Code | B |
| Operating Voltage | 12-32VDC |
| Returnable | Yes |
| SDR Required Flag | N |
| SEMA Product Type | Light Bar |
| Shipping Port | Chicago |
| Territory Restrictions | No |
| Universal or Vehicle Specific | Universal |
| Warranty | Limited Lifetime Warranty |
| Warranty Time | 3 |
| Wattage | 120-Watts |
Race Sport Lighting MS120WWDS 20inch Marine Grade Dual Row Straight Light Bar
Product Information
- Brand: Race Sport Lighting
- Product Number: MS120WWDS
- Availability: Call for Availability at Main Warehouse
*Allow 2-3 business days to ship to your local H&H store. (In stock items only)
$249.00
