2020-2024 Chevy GMC 1500 Hitch Bar Reverse 7in LED Flood Lighting Heavy Duty Bolt-On Blacked Out Kit with Heated Lens and Dual End Light Cap
2019-Current Chevrolet Silverado or GMC Sierra 1500 Hitch Bar Kit - This Kit is designed to provide 270 degrees of rear and side facing light. Features DUAL Inner and Outer end caps. Inner to illuminate the Hitch Ball and the outer to provide light just behind the rear tires to make sure you never hit a curb and of course Heated Roadrunner High Performance Lights for trailering in the rear. ALL HITCH BARS ARE PROUDLY MADE IN THE USA. 3X3" 3 per 16 STEEL TUBE FRAMED CONSTRUCTION TO MATCH THE -DIMENSIONS OF THE STOCK HITCH FRAME. SATIN BLACK POWDER COATED FOR DURABILITY. 3D PRINTED CARBON REINFORCED ENDCAPS. 47 DEGREE DOWN ANGLED MARINE GRADE SIDE LIGHTS TO -LIGHT UP THE "GROUND TO TIRE" AREA AROUND THE REAR WHEELS. 2 BOLT INSTALLATION- HARDWARE INCLUDED. EASY TO INSTALL 4-PIN HARNESS CONNECTORS ON EACH LIGHT AND A 25' HARDWIRE HARNESS FOR A NO SPLICE INSTALLATION ( INSTALLATION HARNESS INCLUDED with Extra Outputs for Optional Strobe Flasher Plate Add On Accessory Sold Separately). NO EXTERNAL WELDS TO RUST. LIFETIME FRAME GUARANTEE AGAINST DEFECTS IN MANUFACTURING. Upgrade your vehicle with Hitch Bar Reverse Light Kits! Improve visibility and safety on the road. Easy to install, sleek design. Order now! Designed and Manufactured in the USA by BMC.
2019-Current Chevrolet Silverado or GMC Sierra 1500 Hitch Bar Kit - This Kit is designed to provide 270 degrees of rear and side facing light. Features DUAL Inner and Outer end caps. Inner to illuminate the Hitch Ball and the outer to provide light just behind the rear tires to make sure you never hit a curb and of course Heated Roadrunner High Performance Lights for trailering in the rear. ALL HITCH BARS ARE PROUDLY MADE IN THE USA. 3X3" 3 per 16 STEEL TUBE FRAMED CONSTRUCTION TO MATCH THE -DIMENSIONS OF THE STOCK HITCH FRAME. SATIN BLACK POWDER COATED FOR DURABILITY. 3D PRINTED CARBON REINFORCED ENDCAPS. 47 DEGREE DOWN ANGLED MARINE GRADE SIDE LIGHTS TO -LIGHT UP THE "GROUND TO TIRE" AREA AROUND THE REAR WHEELS. 2 BOLT INSTALLATION- HARDWARE INCLUDED. EASY TO INSTALL 4-PIN HARNESS CONNECTORS ON EACH LIGHT AND A 25' HARDWIRE HARNESS FOR A NO SPLICE INSTALLATION ( INSTALLATION HARNESS INCLUDED with Extra Outputs for Optional Strobe Flasher Plate Add On Accessory Sold Separately). NO EXTERNAL WELDS TO RUST. LIFETIME FRAME GUARANTEE AGAINST DEFECTS IN MANUFACTURING. Upgrade your vehicle with Hitch Bar Reverse Light Kits! Improve visibility and safety on the road. Easy to install, sleek design. Order now! Designed and Manufactured in the USA by BMC.
Application Summary:
| Year | Make/Model |
|---|---|
| 2019-2024 | Chevrolet Silverado 1500 |
| 2019-2024 | GMC Sierra 1500 |
| Attributes | |
| AAP Selling Package Quantity | 1 |
| AAP Selling Package Quantity UOM | EA |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 65 |
| Alternate Part Number | GM1500HB19UP |
| Beam Pattern | Flood |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Chip Type | OSRAM |
| Country of Origin (Primary) | US |
| Current Draw | 4.4 AMPS |
| Estimated Install Time | 2 Hours |
| Freight Class | 65 |
| GTIN | 00810077232477 |
| Hazardous Material Code | N |
| IP Rating | IP67 |
| Kelvin (Color Temperature) | 5,700K |
| LUX | 10,733lx |
| Life Cycle Status Code | Available to Order |
| Life Expectancy | 50,000 hours |
| Lumens | 5,750lm |
| Operating Voltage | 10-30VDC |
| Related Skus | SFPHBAO,HBK2PH,RS7TEMPFM-F |
| Reverse Polarity Protection | No |
| SDR Required Flag | N |
| Warranty | Limited Lifetime Warranty |
| Wattage | 60-Watts |

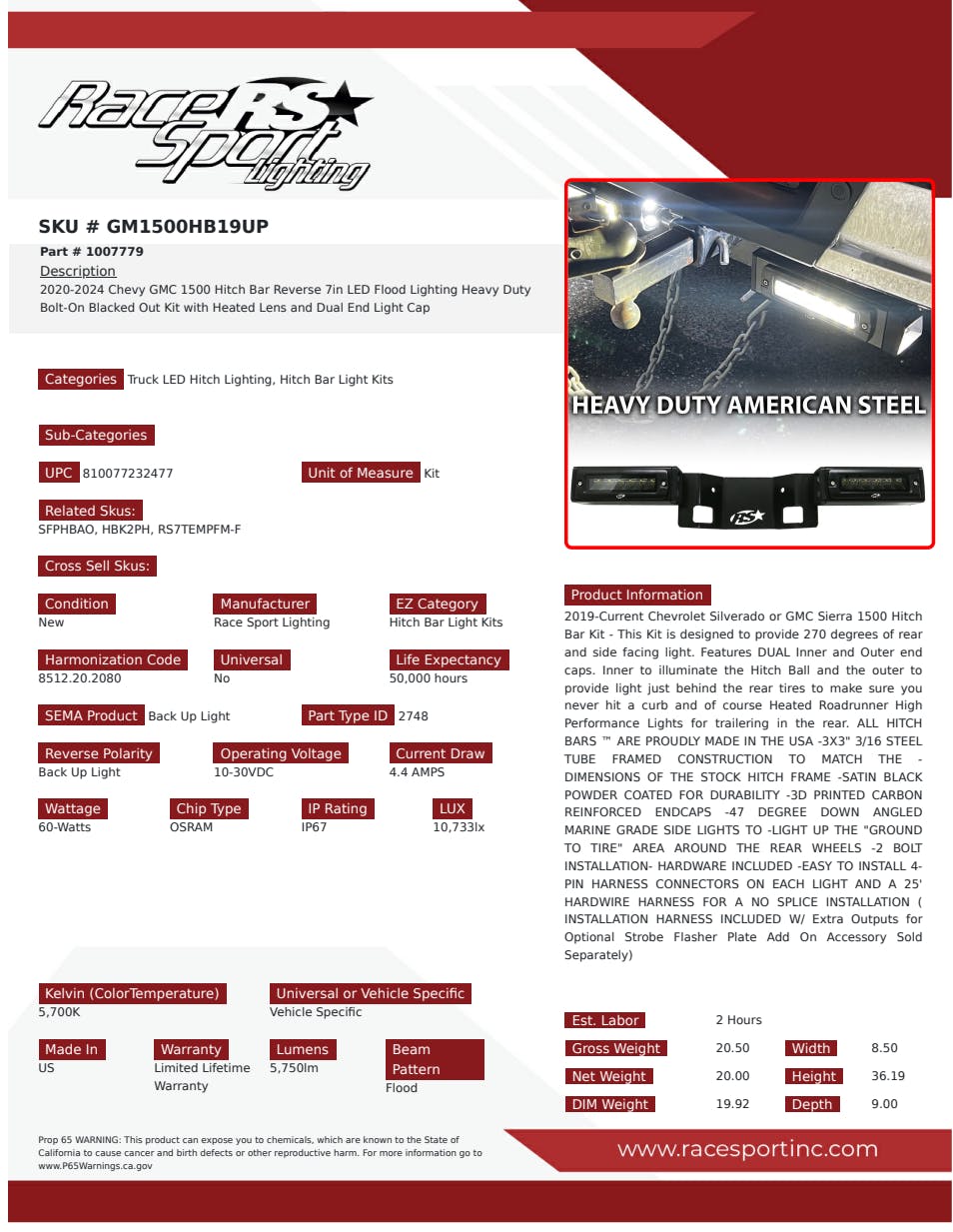

Race Sport Lighting GM1500HB19UP 1500 Hitch Bar Reverse 7in LED Flood Lighting Heavy Duty Bolt-On Blacked Out Kit
Product Information
- Brand: Race Sport Lighting
- Product Number: GM1500HB19UP
- Availability: Call for Availability at Main Warehouse
*Allow 2-3 business days to ship to your local H&H store. (In stock items only)
$779.00
Professional Installation +$125.00
