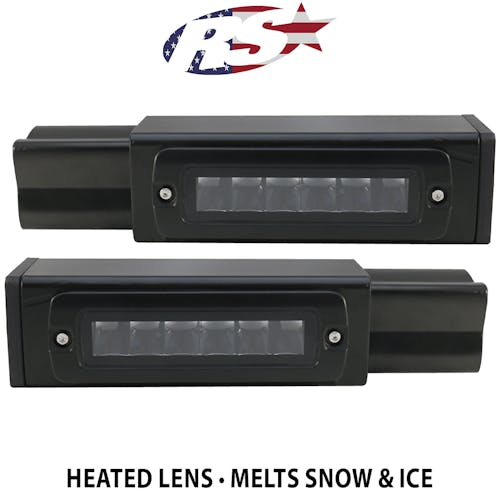

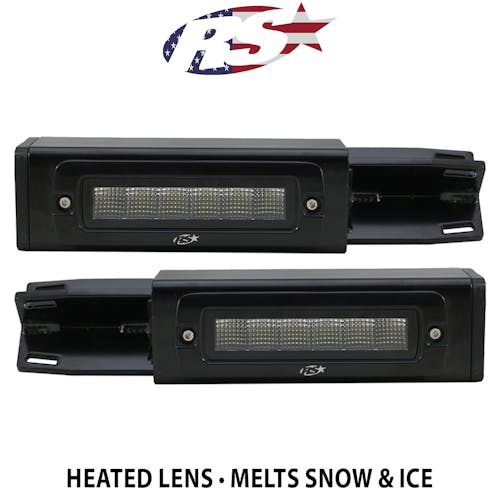

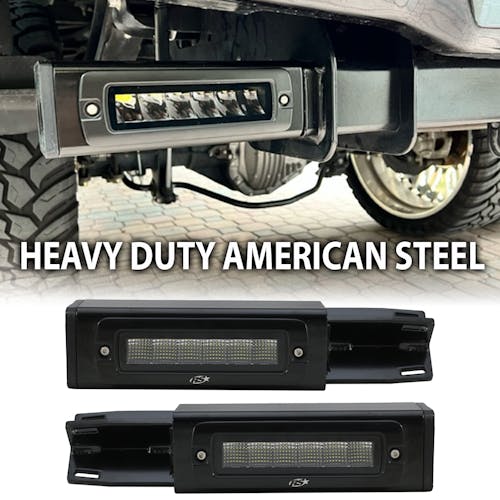

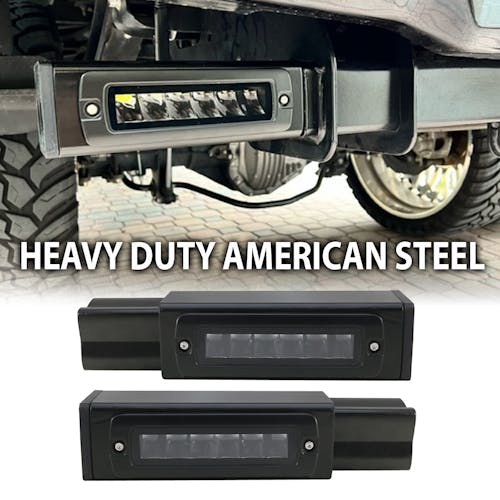

2017-Current Ford F250-F450 Super Duty Hitch Bar Reverse 7in LED Flood Lighting Heavy Duty Bolt-On Blacked Out Kit with Heated Lens and Single End Light Cap

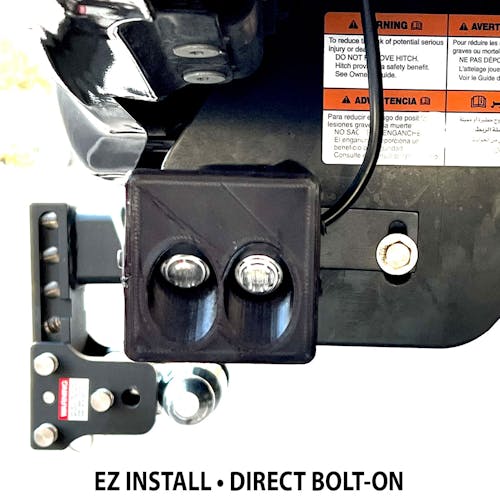

SPECIFICATIONS:-3X3" 3/16 STEEL TUBE FRAMED CONSTRUCTION TO MATCH THE DIMENSIONS OF THE STOCK HITCH FRAME-SATIN BLACK POWDER COATED FOR DURABILITY -3D PRINTED CARBON REINFORCED ENDCAPS SINGLE SIDED-47 DEGREE DOWN ANGLED MARINE GRADE SIDE LIGHTS TO LIGHT UP THE "GROUND TO TIRE" AREA AROUND THE REAR WHEELS-LOADED WITH RACE SPORT LIGHTING ROADRUNNER BLACKED OUT SERIES HIGH POWER FLOOD LIGHT with Heated Lens to melt Snow and Ice-1 BOLT INSTALLATION - HARDWARE INCLUDED-EASY TO INSTALL 4-PIN HARNESS CONNECTORS ON EACH LIGHT AND A 25' HARDWIRE HARNESS FOR A NO SPLICE INSTALLATION HARNESS INCLUDED W/ Extra Outputs for Optional Strobe Flasher Plate Add On Accessory Sold Separately-NO EXTERNAL WELDS TO RUST. URGENT - Does not fit 2017-23 Ford F250-F350 with the AMP rear steps. Please see our Mini Hitch Bar Product made specifically for this vehicle.
SPECIFICATIONS:-3X3" 3/16 STEEL TUBE FRAMED CONSTRUCTION TO MATCH THE DIMENSIONS OF THE STOCK HITCH FRAME-SATIN BLACK POWDER COATED FOR DURABILITY -3D PRINTED CARBON REINFORCED ENDCAPS SINGLE SIDED-47 DEGREE DOWN ANGLED MARINE GRADE SIDE LIGHTS TO LIGHT UP THE "GROUND TO TIRE" AREA AROUND THE REAR WHEELS-LOADED WITH RACE SPORT LIGHTING ROADRUNNER BLACKED OUT SERIES HIGH POWER FLOOD LIGHT with Heated Lens to melt Snow and Ice-1 BOLT INSTALLATION - HARDWARE INCLUDED-EASY TO INSTALL 4-PIN HARNESS CONNECTORS ON EACH LIGHT AND A 25' HARDWIRE HARNESS FOR A NO SPLICE INSTALLATION HARNESS INCLUDED W/ Extra Outputs for Optional Strobe Flasher Plate Add On Accessory Sold Separately-NO EXTERNAL WELDS TO RUST. URGENT - Does not fit 2017-23 Ford F250-F350 with the AMP rear steps. Please see our Mini Hitch Bar Product made specifically for this vehicle.
Application Summary:
| Year | Make/Model |
|---|---|
| 2017-2024 | Ford F-250 Super Duty |
| 2017-2024 | Ford F-350 Super Duty |
| 2017-2024 | Ford F-450 Super Duty |
| 2017 | Ford F-550 Super Duty |
| Attributes | |
| AAP Selling Package Quantity | 1 |
| AAP Selling Package Quantity UOM | EA |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 65 |
| Alternate Part Number | FHDHB17UP |
| Beam Pattern | Flood |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Chip Type | OSRAM |
| Contain Battery | No |
| Country of Origin (Primary) | US |
| Cross-Sell Skus | 1007472,1007602,SFPHBAO |
| Current Draw | 4.4 AMPS |
| Estimated Install Time | 2 Hours |
| Freight Class | 65 |
| GTIN | 00810077231692 |
| HAZMAT Item | No |
| Harmonized Tariff Code (Schedule B) | 8512202080 |
| Hazardous Material Code | N |
| IP Rating | IP67 |
| Kelvin (Color Temperature) | 5,700K |
| LUX | 10,733lx |
| Life Cycle Status Code | Available to Order |
| Life Expectancy | 50,000 hours |
| Lumens | 5,750lm |
| Operating Voltage | 10-30VDC |
| Related Skus | RS7TEMPFM-F,HBK2PH,SFPHBAO |
| Reverse Polarity Protection | No |
| SDR Required Flag | N |
| Upsell Skus | RS7TEMPFM-F |
| Warranty | Limited Lifetime Warranty |
| Warranty Process | https://www.racesportinc.com/rma |
| Wattage | 60-Watts |
Race Sport Lighting FHDHB17UP Dual Row Blacked Out Light Bar Kits
Product Information
- Brand: Race Sport Lighting
- Product Number: FHDHB17UP
- Availability: Call for Availability at Main Warehouse
*Allow 2-3 business days to ship to your local H&H store. (In stock items only)
$779.00
Professional Installation +$125.00
