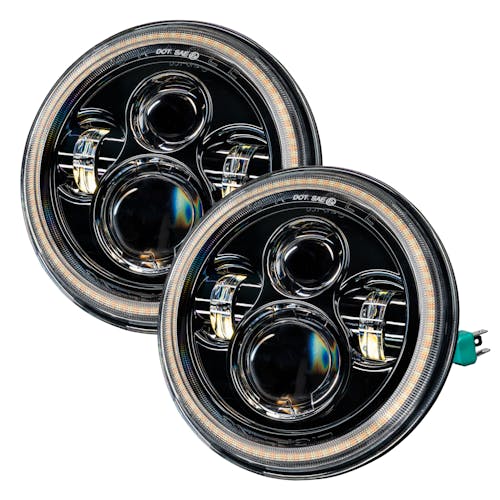

ORACLE Lighting 2007-2018 Jeep Wrangler JK Switchback LED Halo Headlights
The Ultimate LED replacement Halo Headlight for the Jeep Wrangler JK NOW with an Integrated Amber Switchback Turn Signal! Increase night time visibility with high-quality LED illumination focused through advanced precision optics. Upgraded internal LED driver components allow the LED Low Beam to work with your JK Wrangler without the use of "flicker" adapters or other additional devices. Latest Improvements include: Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board. Increased Reliability of the overall lifespan of the LEDS. Wider Input Voltage Range: The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs. Brighter/ More Even Light- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues. LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip.
- Wide Beam Pattern with Sharp Cut-Off Line
Information:
Amber/White - Switchback
Application Summary:
| Year |
Make/Model |
| 2007-2017 |
Jeep Wrangler |
| 2018 |
Jeep Wrangler JK |
| Attributes |
| Add-On |
N/A, N/A |
| Amp Draw |
2.50 Amps at 12V DC / 1.30 Amps at 24V DC, 2.50 Amps at 12V DC / 1.30 Amps at 24V DC |
| Amperage Rating |
2.5 |
| Average Rated Life |
60000 |
| Ballast Included |
No |
| Beam Type |
High Beam Low Beam |
| Bezel Color |
Black |
| Brightness |
3600 |
| Bulb Color |
6,000K |
| Bulb Quantity |
4 |
| Bulb Technology |
LED |
| Bulb Type |
H4/H13 |
| Bulbs Included |
Yes |
| California Proposition 65 |
WARNING: Cancer - www.P65Warnings.ca.gov |
| Color |
Amber/White Switchback |
| Color Temperature |
6000K |
| Contents |
(2x) ORACLE 7 in. High Powered LED Headlights - Black Bezel, (2x) Plug & Play Wiring Adapters, (2x) ORACLE 7 in. High Powered LED Headlights - Black Bezel, (2x) Plug & Play Wiring Adapters |
| Country of Origin (Primary) |
US |
| Department of Transportation Approved |
Yes |
| GTIN |
00810030392538 |
| Harmonized Tariff Code (Schedule B) |
8512200000 |
| Hazardous Material Code |
N |
| Headlight Type |
Sealed Beam |
| High Beam Lumens |
3600, 3600 |
| High Beam Wattage |
40W Normal/48W Max, 40W Normal/48W Max, 48 |
| Housing Color |
Black |
| Housing Material |
Cast Aluminum |
| Input Voltage |
12V - 24V DC, 12V - 24V DC |
| Kelvin Temperature |
6000K, 6000K |
| LED Color |
White/Amber, White/Amber |
| Lens Color |
Clear |
| Lens Material |
PC (Polycarbonate) |
| Life Cycle Status Code |
Available to Order |
| Low Beam Lumens |
2200, 2200 |
| Low Beam Wattage |
30W Normal/36W Max, 30W Normal/36W Max |
| Mounting Hardware Included |
No |
| NAFTA Preference Criterion Code |
B |
| SDR Required Flag |
N |
| Secondary Amperage Rating |
1.3 |
| Street Legal |
Yes |
| Terminal Type |
Blade |
| Voltage |
12 |
| Warranty |
2 Year, 2 Year |
| Warranty Time |
2 |
| Wattage |
48 W |
